REAR BUMPER & BUMPER STAY

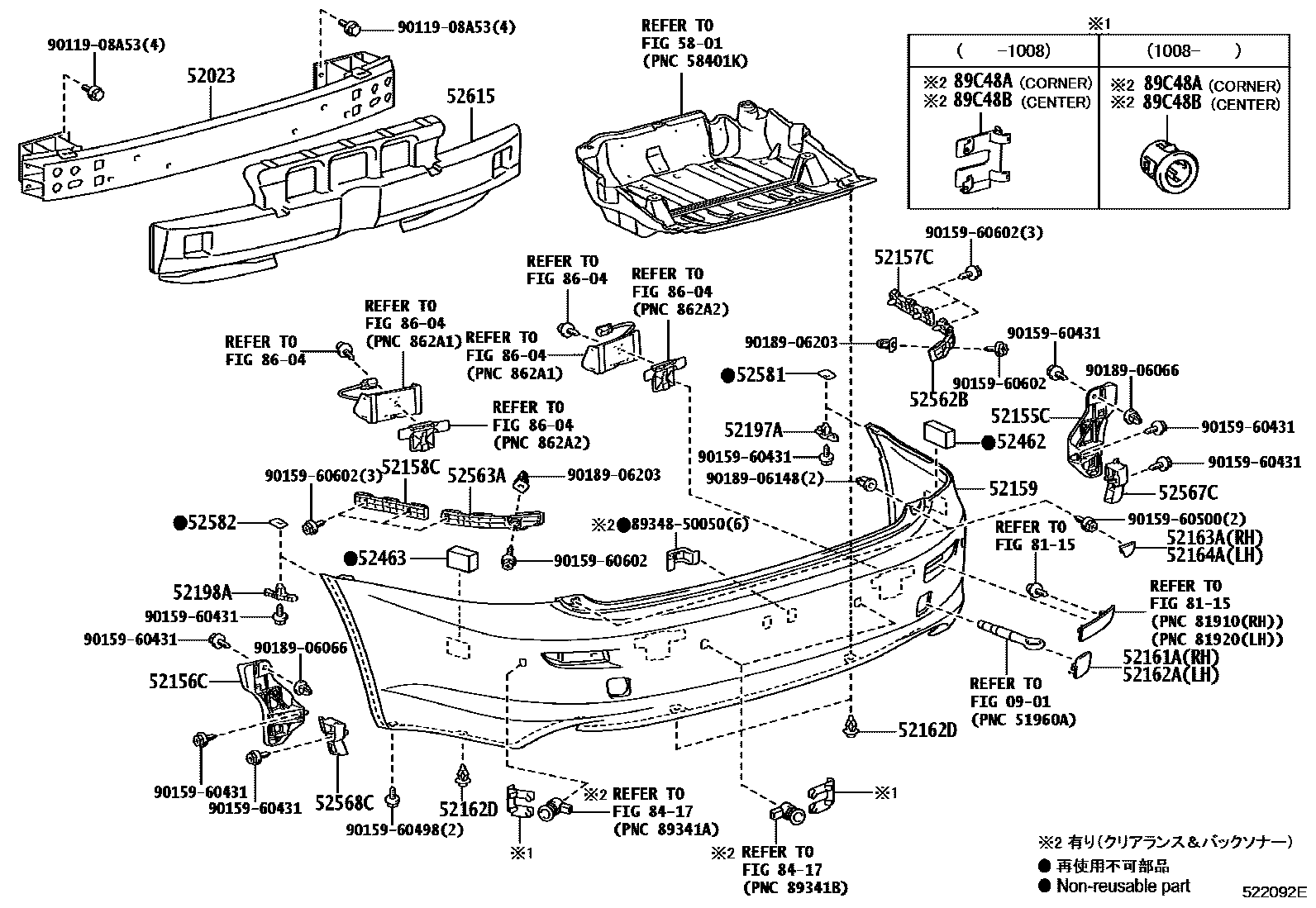

Parts diagram
0901
52023REINFORCEMENT SUB-ASSY, REAR BUMPER
main52023-53060i200904-201408
52155CSUPPORT, REAR BUMPER SIDE, NO.1 RH
main52155-53060i200904-201408
52156CSUPPORT, REAR BUMPER SIDE, NO.1 LH
main52156-53030i200904-201408
52157CSUPPORT, REAR BUMPER SIDE, NO.2 RH
main52157-53060i200904-201408
52158CSUPPORT, REAR BUMPER SIDE, NO.2 LH
main52158-53060i200904-201408
52159COVER, REAR BUMPER
main52159-53150-A0i200904-201408
WHITE PEARL CS.,077
sub52159-53919
main52159-53150-B0i200904-201108
DK.GRAY MC.,1G0
sub52159-53919
main52159-53150-B1i200904-201208
SILVER M.M.,1G1
sub52159-53919
main52159-53150-C0i200904-201408
BLACK,212
sub52159-53919
main52159-53150-D0i200904-201408
RED MC.CS.,3R1
sub52159-53919
main52159-53150-J1i200904-201408
BLUE ME.,8U1
sub52159-53919
main52159-53150-J2i200904-201208
SILVERY BLUE ME.,8U9
sub52159-53919
main52159-53150-K0i200904-201408
CATTLEYA M.M.,9AL
sub52159-53919
main52159-53160-A0i200904-201008
sub52159-53958
main52159-53160-B0i200904-201008
sub52159-53958
main52159-53160-B1i200904-201008
sub52159-53958
main52159-53160-C0i200904-201008
sub52159-53958
main52159-53160-D0i200904-201008
sub52159-53958
main52159-53160-J0supersedes 52159-53150-J0i200904-201008
sub52159-53958
main52159-53160-J1i200904-201008
sub52159-53958
main52159-53160-J2i200904-201008
sub52159-53958
main52159-53160-K0i200904-201008
sub52159-53958
main52159-53161-A0i201008-201408
sub52159-53959
main52159-53161-A1supersedes 52159-53150-A1i201208-201408
sub52159-53959
main52159-53161-B0i201008-201108
sub52159-53959
main52159-53161-B1i201008-201208
sub52159-53959
main52159-53161-B2supersedes 52159-53150-B2i201108-201408
sub52159-53959
main52159-53161-B3supersedes 52159-53150-B3i201208-201408
sub52159-53959
main52159-53161-C0i201008-201408
sub52159-53959
main52159-53161-D0i201008-201408
sub52159-53959
main52159-53161-J1i201008-201408
sub52159-53959
main52159-53161-J2i201008-201208
sub52159-53959
main52159-53161-J3supersedes 52159-53150-J3i201008-201408
sub52159-53959
main52159-53161-K0i201008-201408
sub52159-53959
52161APIECE, REAR BUMPER, RH
main52161-53040-A0i200904-201408
WHITE PEARL CS.,077
main52161-53040-A1i201208-201408
WHITE NOVA GF.,083
main52161-53040-B0i200904-201108
DK.GRAY MC.,1G0
main52161-53040-B1i200904-201208
SILVER M.M.,1G1
main52161-53040-B2i201108-201408
MERCURY GRAY MC.,1H9
main52161-53040-B3i201208-201408
PLATINUM SILVER ME.,1J4
main52161-53040-C0i200904-201408
BLACK,212
main52161-53040-D0i200904-201408
RED MC.CS.,3R1
main52161-53040-J0i200904-201008
DK.BLUE MC. CC.,8U0
main52161-53040-J1i200904-201408
BLUE ME.,8U1
main52161-53040-J2i200904-201208
SILVERY BLUE ME.,8U9
main52161-53040-J3i201008-201408
LAPIS LAZULI MC.,8V3
main52161-53040-K0i200904-201408
CATTLEYA M.M.,9AL
52162APIECE, REAR BUMPER, LH
main52162-53050-A0i200904-201408
WHITE PEARL CS.,077
main52162-53050-A1i201208-201408
WHITE NOVA GF.,083
main52162-53050-B0i200904-201108
DK.GRAY MC.,1G0
main52162-53050-B1i200904-201208
SILVER M.M.,1G1
main52162-53050-B2i201108-201408
MERCURY GRAY MC.,1H9
main52162-53050-B3i201208-201408
PLATINUM SILVER ME.,1J4
main52162-53050-C0i200904-201408
BLACK,212
main52162-53050-D0i200904-201408
RED MC.CS.,3R1
main52162-53050-J0i200904-201008
DK.BLUE MC. CC.,8U0
main52162-53050-J1i200904-201408
BLUE ME.,8U1
main52162-53050-J2i200904-201208
SILVERY BLUE ME.,8U9
main52162-53050-J3i201008-201408
LAPIS LAZULI MC.,8V3
main52162-53050-K0i200904-201408
CATTLEYA M.M.,9AL
52162DPIECE, REAR BUMPER
main52161-16010×4i200904-201408
52163APLATE, REAR BUMPER, RH
main52163-53020-A0i200904-201408
WHITE PEARL CS.,077
main52163-53020-A1i201208-201408
WHITE NOVA GF.,083
main52163-53020-B0i200904-201108
DK.GRAY MC.,1G0
main52163-53020-B1i200904-201208
SILVER M.M.,1G1
main52163-53020-B2i201108-201408
MERCURY GRAY MC.,1H9
main52163-53020-B3i201208-201408
PLATINUM SILVER ME.,1J4
main52163-53020-C0i200904-201408
BLACK,212
main52163-53020-D0i200904-201408
RED MC.CS.,3R1
main52163-53020-J0i200904-201008
DK.BLUE MC. CC.,8U0
main52163-53020-J1i200904-201408
BLUE ME.,8U1
main52163-53020-J2i200904-201208
SILVERY BLUE ME.,8U9
main52163-53020-J3i201008-201408
LAPIS LAZULI MC.,8V3
main52163-53020-K0i200904-201408
CATTLEYA M.M.,9AL
52164APLATE, REAR BUMPER, LH
main52164-53020-A0i200904-201408
WHITE PEARL CS.,077
main52164-53020-A1i201208-201408
WHITE NOVA GF.,083
main52164-53020-B0i200904-201108
DK.GRAY MC.,1G0
main52164-53020-B1i200904-201208
SILVER M.M.,1G1
main52164-53020-B2i201108-201408
MERCURY GRAY MC.,1H9
main52164-53020-B3i201208-201408
PLATINUM SILVER ME.,1J4
main52164-53020-C0i200904-201408
BLACK,212
main52164-53020-D0i200904-201408
RED MC.CS.,3R1
main52164-53020-J0i200904-201008
DK.BLUE MC. CC.,8U0
main52164-53020-J1i200904-201408
BLUE ME.,8U1
main52164-53020-J2i200904-201208
SILVERY BLUE ME.,8U9
main52164-53020-J3i201008-201408
LAPIS LAZULI MC.,8V3
main52164-53020-K0i200904-201408
CATTLEYA M.M.,9AL
52197ABRACKET, REAR BUMPER SEAL, RH
main52197-53030i200904-201408
52198ABRACKET, REAR BUMPER SEAL, LH
main52197-53030i200904-201408
52462PAD, REAR BUMPER, RH
main52462-53040i200904-201408
52463PAD, REAR BUMPER, LH
main52462-53040i200904-201408
52562BRETAINER, REAR BUMPER, UPPER RH
main52562-53020i200904-201408
52563ARETAINER, REAR BUMPER, UPPER LH
main52563-53020i200904-201408
52567CRETAINER, REAR BUMPER LOWER SIDE, RH
main52567-53010i200904-201408
52568CRETAINER, REAR BUMPER LOWER SIDE, LH
main52568-53010i200904-201408
52581PROTECTOR, REAR BUMPER, RH
main52581-53020i200904-201408
52582PROTECTOR, REAR BUMPER, LH
main52582-53020i200904-201408
52615ABSORBER, REAR BUMPER ENERGY
main52615-53090i200904-201408
5801
8115
8417
8604
89C48ARETAINER, ULTRASONIC SENSOR, REAR CORNER
main89348-30030-A0×2i201108-201408
main89348-30030-A5×2i201208-201408
main89348-30030-B0×2i201108-201408
main89348-30030-B6×2i201208-201408
main89348-30030-B8×2i201108-201208
main89348-30030-C0×2i201108-201408
main89348-30030-D2×2i201108-201408
main89348-30030-J0×2i201109-201408
main89348-30030-J5×2i201109-201208
main89348-30030-J6×2i201109-201408
main89348-30030-K1×2i201109-201408
main89348-44010×2i200904-201008
main89348-64020-A1×2i201008-201107
main89348-64020-B2×2i201008-201107
main89348-64020-B6×2i201008-201107
main89348-64020-C1×2i201008-201107
main89348-64020-D0×2i201008-201107
main89348-64020-J1×2i201008-201107
main89348-64020-J2×2i201008-201107
main89348-64020-J5×2i201008-201107
main89348-64020-K1×2i201008-201107
89C48BRETAINER, ULTRASONIC SENSOR, REAR CENTER
main89348-30030-A0×2i201108-201408
main89348-30030-A5×2i201208-201408
main89348-30030-B0×2i201108-201408
main89348-30030-B6×2i201208-201408
main89348-30030-B8×2i201108-201208
main89348-30030-C0×2i201108-201408
main89348-30030-D2×2i201108-201408
main89348-30030-J0×2i201109-201408
main89348-30030-J5×2i201109-201208
main89348-30030-J6×2i201109-201408
main89348-30030-K1×2i201109-201408
main89348-44010×2i200904-200906
main89348-53010×2i200906-201008
main89348-64020-A1×2i201008-201107
main89348-64020-B2×2i201008-201107
main89348-64020-B6×2i201008-201107
main89348-64020-C1×2i201008-201107
main89348-64020-D0×2i201008-201107
main89348-64020-J1×2i201008-201107
main89348-64020-J2×2i201008-201107
main89348-64020-J5×2i201008-201107
main89348-64020-K1×2i201008-201107
8934850050RETAINER, ULTRASONIC SENSOR, NO.1
main89348-50050
9011908A53
main90119-08A53
9015960431
main90159-60431
9015960498
main90159-60498
9015960500
main90159-60500
9015960602
main90159-60602
9018906066
main90189-06066
9018906148
main90189-06148
9018906203
main90189-06203

38 parts on this diagram · 1 diagram in section
