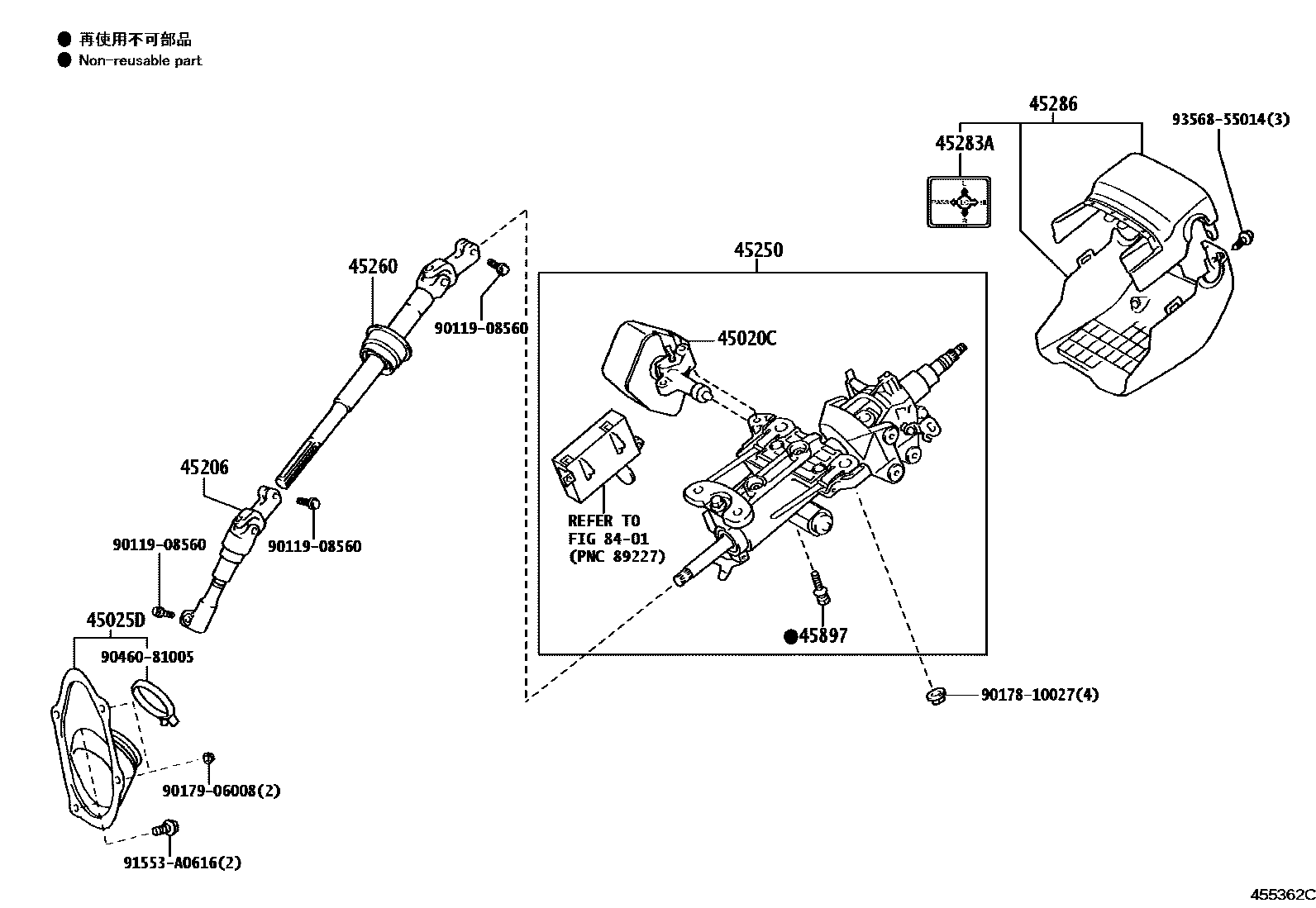

STEERING COLUMN & SHAFT

0001 1 0002 1

45020CACTUATOR ASSY, STEERING LOCK(W/ECU)

main45020-30A60iGSE2#200904-201408

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-30350iGSE2#200904-201408

45206YOKE SUB-ASSY, STEERING SLIDING W/SHAFT

main45206-30140iGSE2#200904-201112

main45206-30141iGSE2#201112-201408

45250COLUMN ASSY, STEERING

main45250-53051iGSE2#200904-201011

sub45810-53020

sub45020-30A60

sub45892-30010

sub45897-12020

sub89227-30020

sub93219-15010

sub93381-15010

45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2

main45260-30200iGSE2#200904-201212

sub45260-30201

main45260-30201iGSE2#201301-201408

45283APLATE, BEAM CHANGE & TURN SIGNAL CAUTION

main45283-22010iGSE2#200904-201408

45286COVER, STEERING COLUMN

main45286-53911-C0iGSE2#200904-201408

BLACK,TRIM0#,1#,2#,3#,4#

45897BOLT, STEERING LOCK SET

main45897-12020iGSE2#200904-201408

8401

9011908560

main90119-08560

9017810027

main90178-10027

9017906008

main90179-06008

9046081005

main90460-81005

91553A0616

main91553-A0616

9356855014

main93568-55014

15 parts on this diagram · 2 diagrams in section
