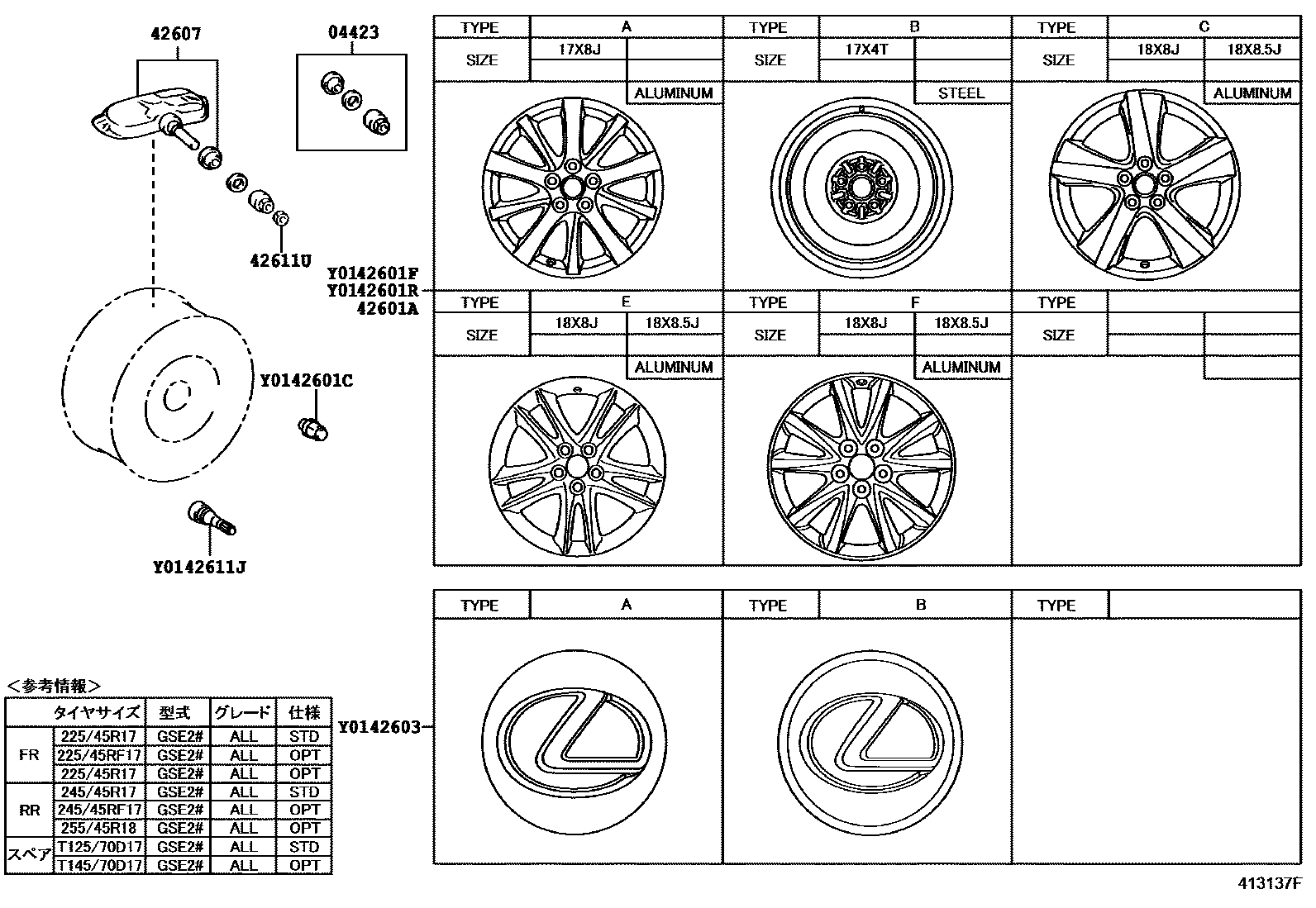

DISC WHEEL & WHEEL CAP

0001 1 0002 1

04423FITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE

main04423-33030×4iGSE2#200904-201408

sub04423-33060

42601AWHEEL, DISC (FOR SPARE)

main42611-30A60iGSE2#200904-201408

42601CNUT, HUB (FOR AXLE)

main90942-01033×20iGSE2#200904-201408

42601FWHEEL, DISC (FOR FRONT)

main42611-WY070×2iGSE2#201208-201408

main4261A-53110×2supersedes 4261A-53090iGSE2#200904-201208

sub4261A-53120

main4261A-53410×2iGSE2#201208-201408

42601RWHEEL, DISC (FOR REAR)

main42611-WY080×2iGSE2#201208-201408

main4261A-53130×2supersedes 4261A-53090iGSE2#200904-201208

sub4261A-53140

main4261A-53430×2iGSE2#201208-201408

sub4261A-53440

42603ORNAMENT SUB-ASSY, WHEEL HUB

main42603-30550×4iGSE2#201208-201408

sub42603-30551

main42603-30590×4supersedes 42603-50320iGSE2#200904-201208

main42603-53110×4iGSE2#201208-201408

42607VALVE SUB-ASSY, TIRE PRESSURE MONITOR

main42607-30050×4iGSE2#200904-201408

sub42607-33022

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90942-05009iGSE2#200904-201408

42611UCAP, TIRE VALVE

main90942-05037×4iGSE2#200904-201207

main90942-05042×4iGSE2#201207-201408

9 parts on this diagram · 2 diagrams in section
