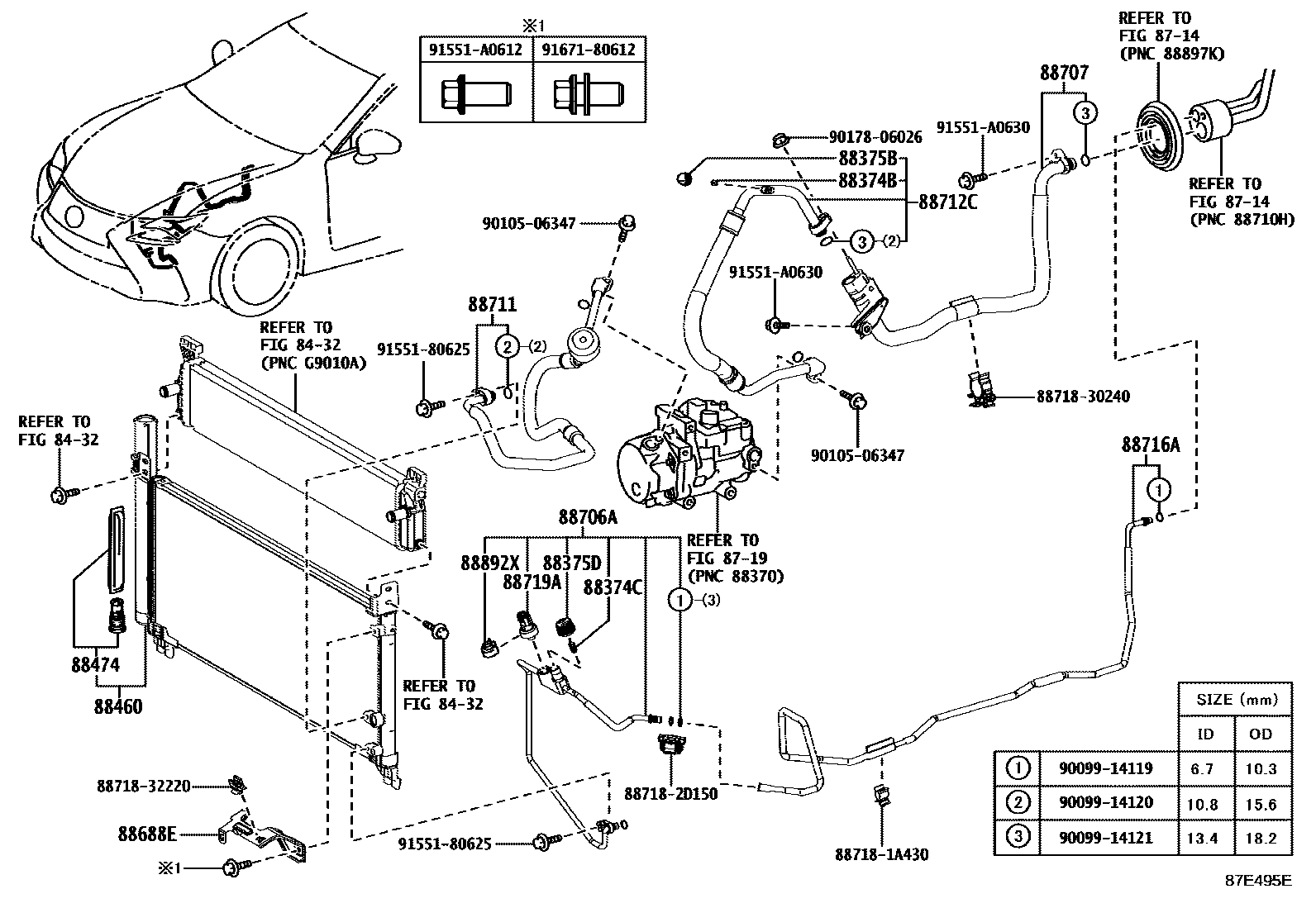

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1 0003 1

8432

8714

8719

88374BVALVE, SERVICE, NO.1

main88374-30010iAVC10,GSC10201409-201510

88374CVALVE, SERVICE, NO.2

main88374-30010iAVC10,GSC10201409-201510

88375BCAP, SERVICE VALVE, NO.1

main88375-30290iAVC10,GSC10201409-201510

main88375-30310iASC10,AVC10,GSC10202301

88375DCAP, SERVICE VALVE, NO.2

main88375-30280iAVC10,GSC10201409-201510

main88375-30320iASC10,AVC10,GSC10202301

88460CONDENSER ASSY, COOLER

main88460-24100iGSC10201409-201510

main88460-24140iAVC10201409-201510

main88460-24150iGSC10202301

main88460-30B20iGSC10201510-201810

main88460-30B80iASC10201810-202301

main88460-30C00iASC10202301

88474DRYER, COOLER

main88474-12010iGSC10201409-201510

main88474-47020iAVC10201409-201510

88688EBRACKET, COOLER REFRIGERANT HOSE, NO.1

main88688-3F020iASC10,AVC10,GSC10201510-201810

88706ATUBE SUB-ASSY, LIQUID, A

main88706-24180iGSC10201409-201510

main88706-24190iAVC10201810-202301

main88706-24200iGSC10202301-202403

main88706-24201iGSC10202403

main88706-30A20iGSC10201510-201810

main88706-30A30iASC10201810-202301

main88706-30A40iASC10202301

main88706-3A620iAVC10202301

88707PIPE SUB-ASSY, SUCTION

main88707-30A31iAVC10201409-201510

main88707-30A41iGSC10201409-201510

main88707-53140iASC10201510-201810

main88707-53150iASC10202301

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88711-24180iGSC10201409-201510

main88711-30A10iAVC10201810-202403

main88711-30A11iAVC10202404

main88711-30A30iGSC10201810-202404

main88711-30A31iGSC10202405

main88711-30A40iASC10201810-202404

main88711-30A41iASC10202405

88712CHOSE, SUCTION

main88712-30360iGSC10201409-201510

main88712-3F070iAVC10201810-202301

main88712-53220iAVC10202301-202404

main88712-53221iAVC10202405

main88712-53230iASC10201510-201810

main88712-53231iASC10202405

main88712-53240iGSC10201810-202301

sub88712-53241

main88712-53270iGSC10202301-202404

main88712-53271iGSC10202405

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88716-30061iAVC10201810

main88716-30071iGSC10201409-201510

main88716-30B10iGSC10201711-201810

main88716-30B20iASC10201810

88719ASENSOR, AIR CONDITIONER PRESSURE

main88719-33020iASC10,AVC10,GSC10201510-201810

88892XCOVER, COOLER, NO.2

main88892-50120iAVC10,GSC10201409-201510

887181A430PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-1A430

887182D150PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-2D150

8871830240PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-30240

8871832220PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-32220

9009914119

main90099-14119

9009914120

main90099-14120

9009914121

main90099-14121

9010506347

main90105-06347

9017806026

main90178-06026

9155180625

main91551-80625

91551A0612

main91551-A0612

91551A0630

main91551-A0630

9167180612

main91671-80612

30 parts on this diagram · 3 diagrams in section
