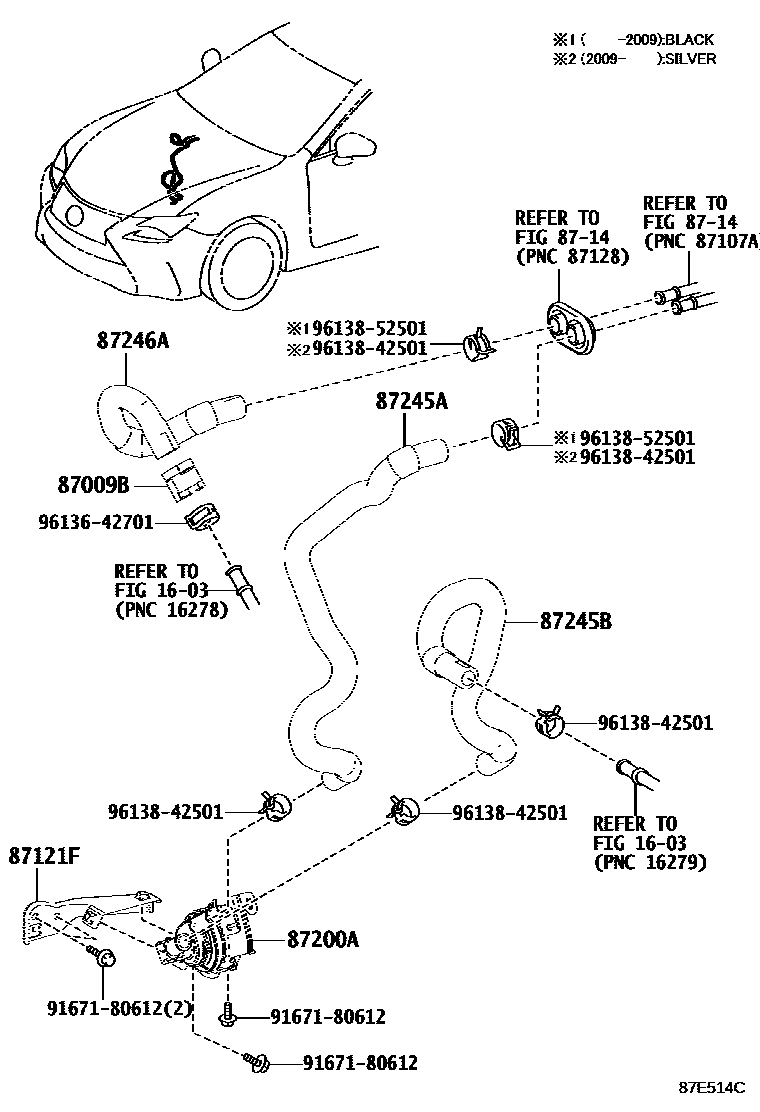

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1 0003 1 0004 1

1603

87009BHOSE SET, WATER

main87009-11010iASC10,GSC10201709-201810

main87009-30040iGSC10201409-201810

main87009-50020iASC10201510-201709

87121FBRACKET, HEATER

main87121-30110iAVC10201409-201508

sub87121-53040

main87121-53040iAVC10201509-201810

8714

87200APUMP ASSY, WATER(FOR HEATER)

main87200-30270iAVC10201409-201810

87245AHOSE, HEATER WATER, INLET A

main87245-30C30iAVC10201409-201810

main87245-30D10iGSC10201711-201810

main87245-53180iGSC10201409-201711

main87245-53200iASC10201510-201810

87245BHOSE, HEATER WATER, INLET B

main87245-30C80iAVC10201409-201810

87246AHOSE, HEATER WATER, OUTLET A

main87245-30A41iGSC10201409-201711

main87245-30C40iAVC10201409-201810

main87245-30D30iGSC10201711-201810

main87245-53210iASC10201510-201810

9167180612

main91671-80612

9613642701

main96136-42701

9613842501

main96138-42501

9613852501

main96138-52501

12 parts on this diagram · 4 diagrams in section
