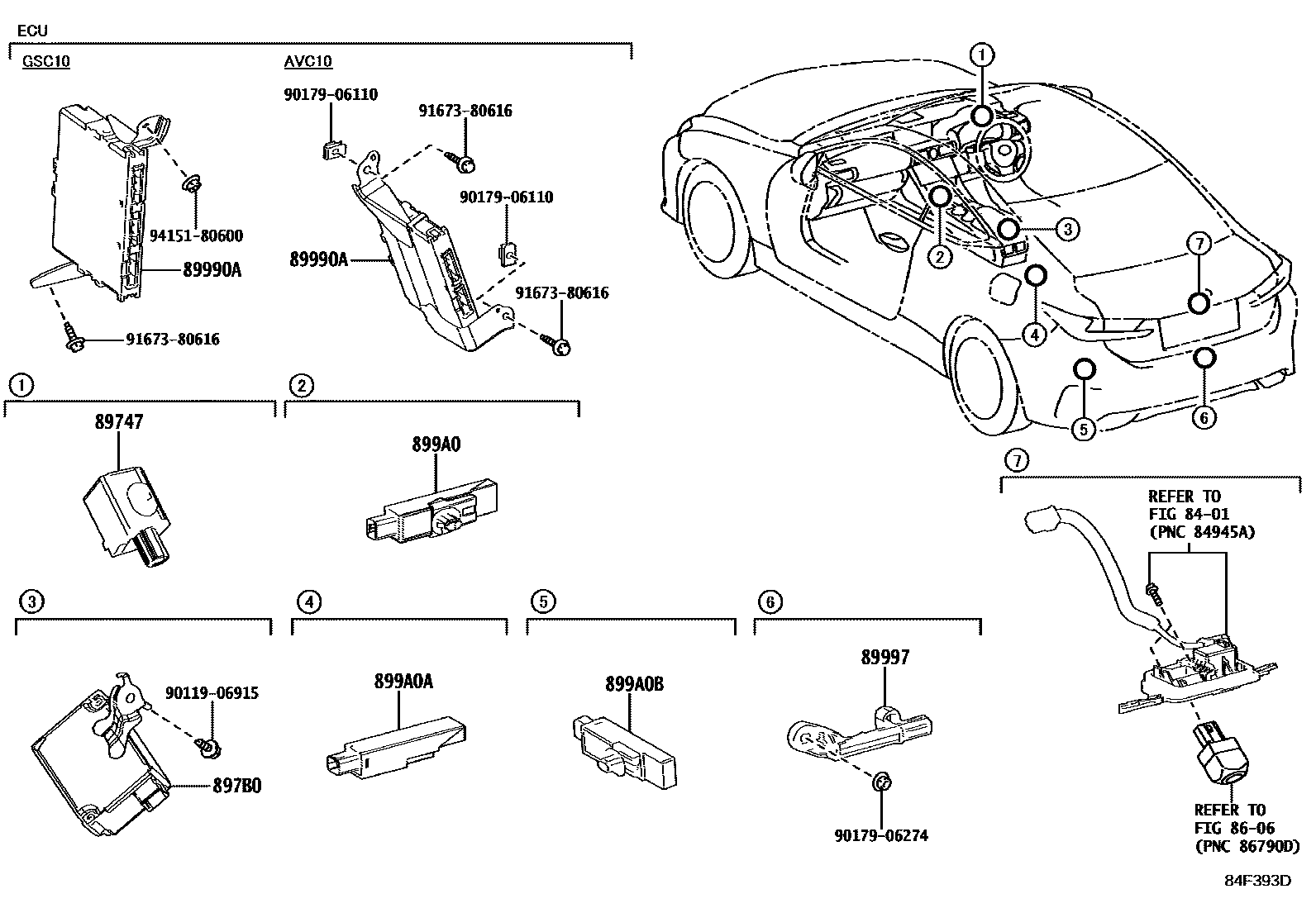

WIRELESS DOOR LOCK

0001 1 0002 1

8401

8606

89747BUZZER, WIRELESS DOOR LOCK

main89747-30040iASC10,AVC10,GSC10201510-201810

897B0RECEIVER ASSY, ELECTRICAL KEY & TPMS

main897B0-24100iASC10,GSC10201810-202009

main897B0-24280supersedes 897B0-24250iAVC10202009-202301

main897B0-24360supersedes 897B0-24340iASC10,GSC10202301-202310

main897B0-24410supersedes 897B0-24380iASC10,GSC10202310-202501

89990ACOMPUTER ASSY, SMART KEY

main89990-24010iGSC10201409-201510

sub89990-24011

main89990-24020iAVC10201409-201510

main89990-24060iASC10,GSC10201510-201809

main89990-24061iASC10,GSC10201809-201810

main89990-24070iAVC10201510-201810

main89990-24140iASC10,GSC10201810-202009

main89990-24150iAVC10201810-202009

main89990-24190iASC10,GSC10202009-202301

main89990-24191iASC10,GSC10202301

main89990-24210iAVC10202009

89997ANTENNA, ELECTRICAL KEY

main89997-30100iASC10,AVC10,GSC10201510-201810

899A0ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.1

main899A0-60010iAVC10,GSC10201409-201510

899A0AANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.2

main899A1-60010iAVC10,GSC10201409-201510

899A0BANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.3

main899A0-47010iAVC10,GSC10201409-201510

9011906915

main90119-06915

9017906110

main90179-06110

9017906274

main90179-06274

9167380616

main91673-80616

9415180600

main94151-80600

14 parts on this diagram · 2 diagrams in section
