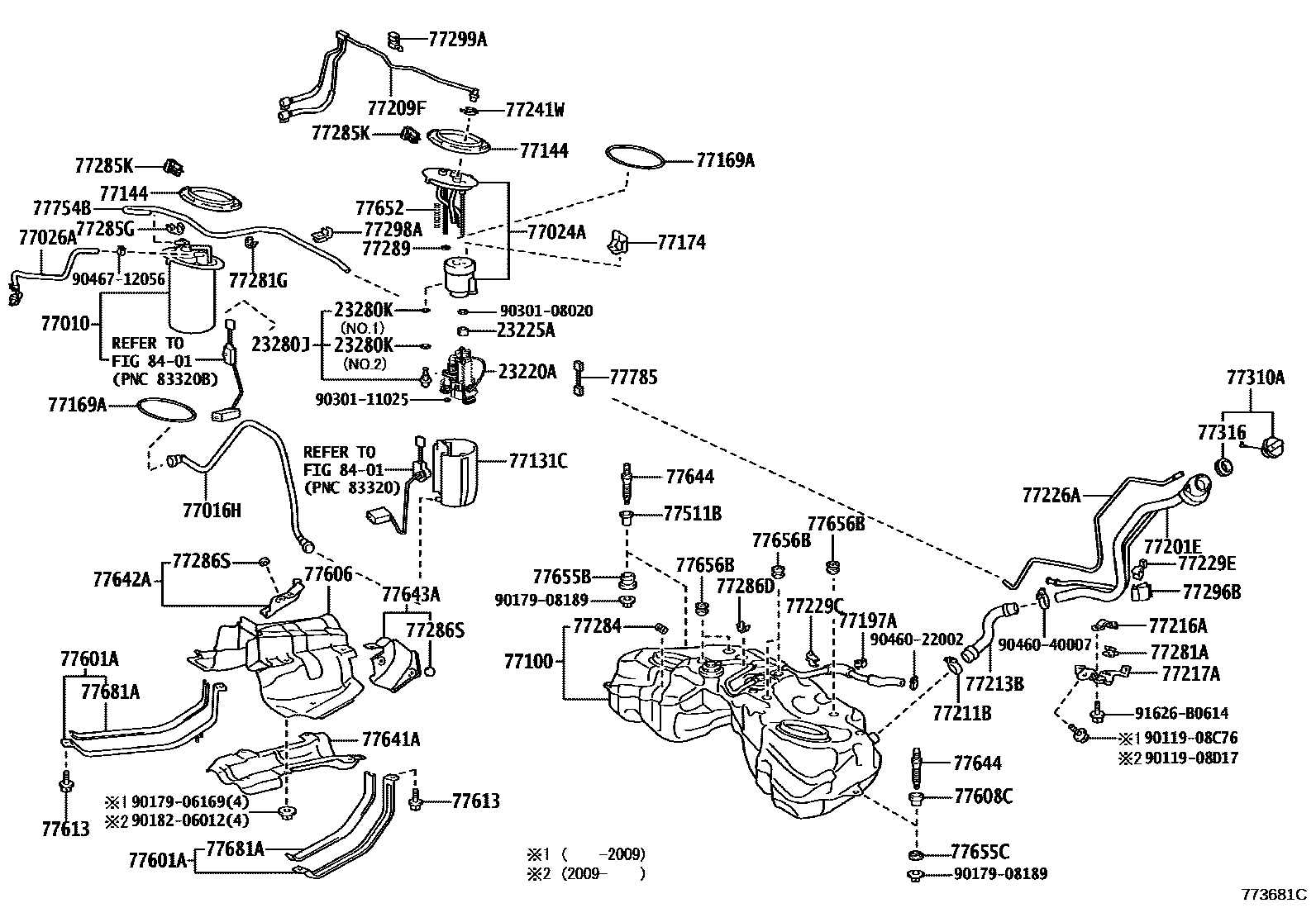

FUEL TANK & TUBE
23220APUMP ASSY, FUEL W/FILTER
23225ASPACER, FUEL PUMP
23280JREGULATOR ASSY, FUEL PRESSURE
23280KRING, O(FOR FUEL PRESSURE REGULATOR)
77016HTUBE SUB-ASSY, FUEL RETURN VENT
77024APLATE SUB-ASSY, FUEL SUCTION
77026ATUBE SUB-ASSY, FUEL EVAPORATION, NO.1
77131CSUB-TANK, FUEL, NO.1
77144RETAINER, FUEL PUMP GAUGE
77169AGASKET, FUEL SUCTION TUBE SET
77174SUPPORT, FUEL SUCTION, NO.1
77197ACLAMP, EVAPORATION VENT TUBE, NO.2
77209FTUBE SUB-ASSY, FUEL TANK MAIN
77211BCLAMP (FOR FUEL FILLER PIPE)
77213BHOSE, FUEL TANK TO FILLER PIPE
77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1
77217ASUPPORT, FUEL TANK FILLER PIPE, NO.2
77226ATUBE, FUEL TANK BREATHER, NO.6
77229CCLAMP, BREATHER TUBE
77229ECLAMP, BREATHER TUBE
77281ACLAMP, FUEL FILLER PIPE
77281GCLAMP, FUEL HOSE
77284CLAMP, FUEL TUBE
77285GCLAMP, FUEL TUBE, NO.1
77285KCLAMP, FUEL TUBE, NO.1
77286DCLAMP, FUEL TUBE, NO.2
77286SCUSHION, FUEL TANK PROTECTOR
77289HOLDER, FUEL TANK PIPE SETTING
77296BSUPPORT, FUEL TUBE PROTECTOR, NO.1
77298ACLAMP, FUEL TUBE, NO.4
77299ACLAMP, FUEL TUBE, NO.5
77310ACAP ASSY, FUEL TANK
77316GASKET, FUEL TANK CAP
77511BBRACKET, FUEL TANK
77601ABAND SUB-ASSY, FUEL TANK, NO.1
77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1
77608CCUSHION SET, FUEL TANK
77613BOLT, FUEL TANK BAND SET
77641APROTECTOR, FUEL TANK, NO.1
77642APROTECTOR, FUEL TANK, NO.2
77643APROTECTOR, FUEL TANK, NO.3
77644BOLT, FUEL TANK
77652CUSHION, FUEL TANK, NO.1
77655BCUSHION, FUEL TANK
77655CCUSHION, FUEL TANK
77656BCUSHION, FUEL TANK, NO.6
77681ASEAT, FUEL TANK BAND
77754BHOSE, CHARCOAL CANISTER OUTLET
8401
9011908C76
main90119-08C76
9011908D17
main90119-08D17
9017906169
main90179-06169
9017908189
main90179-08189
9018206012
main90182-06012
9030108020
main90301-08020
9030111025
main90301-11025
9046022002
main90460-22002
9046040007
main90460-40007
9046712056
main90467-12056
91626B0614
main91626-B0614
65 parts on this diagram · 12 diagrams in section
