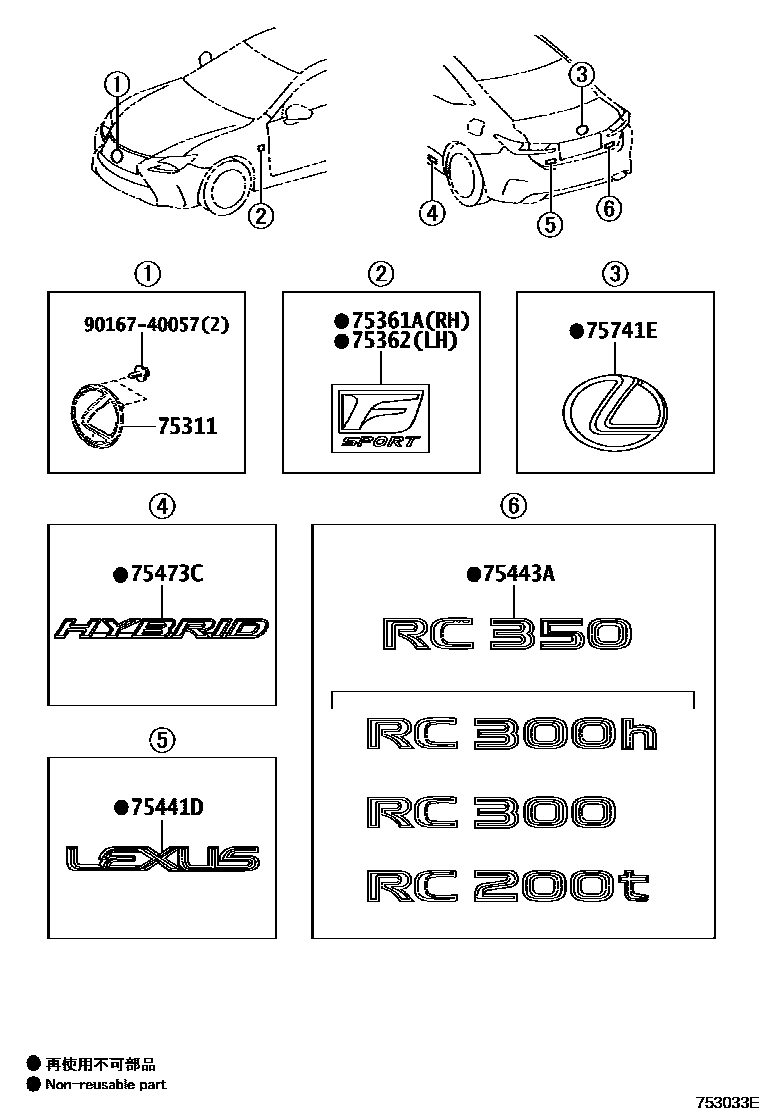

EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

75311EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)

main53141-50060iASC10,GSC10201711-201810

sub53141-50061

main53141-50070iAVC10201711-201810

sub53141-50071

main53141-53030iASC10,GSC10201810-202101

sub53141-53031

main53141-53031iASC10,GSC10202102

main53141-53040iAVC10201810-202101

sub53141-53041

main53141-53041iAVC10202102-202301

main90975-02121iAVC10201409-201711

main90975-02133iGSC10201409-201711

75361APLATE, FRONT FENDER NAME, NO.1

75362PLATE, FRONT FENDER NAME, NO.2

main75362-53030

75441DPLATE, LUGGAGE COMPARTMENT DOOR NAME, NO.1

main75441-24090iAVC10,GSC10201409-202301

75443APLATE, LUGGAGE COMPARTMENT DOOR, NO.3

main75443-24130iGSC10201409-201810

main75443-24160iAVC10201409-202210

main75443-24210iASC10201510-201711

main75443-24230iASC10201711-201810

main75443-24250iAVC10202210

75473CPLATE, BODY SIDE NAME

main75473-24010iAVC10201409-202301

main75473-24020iAVC10201409-202301

75741EEMBLEM, SYMBOL

main90975-02109iAVC10202210

main90975-02134iAVC10201409-202301

main90975-02154iASC10,GSC10201810-202209

sub90975-02109

main90975-02212iASC10,GSC10201409-201810

9016740057

main90167-40057

8 parts on this diagram · 1 diagram in section
