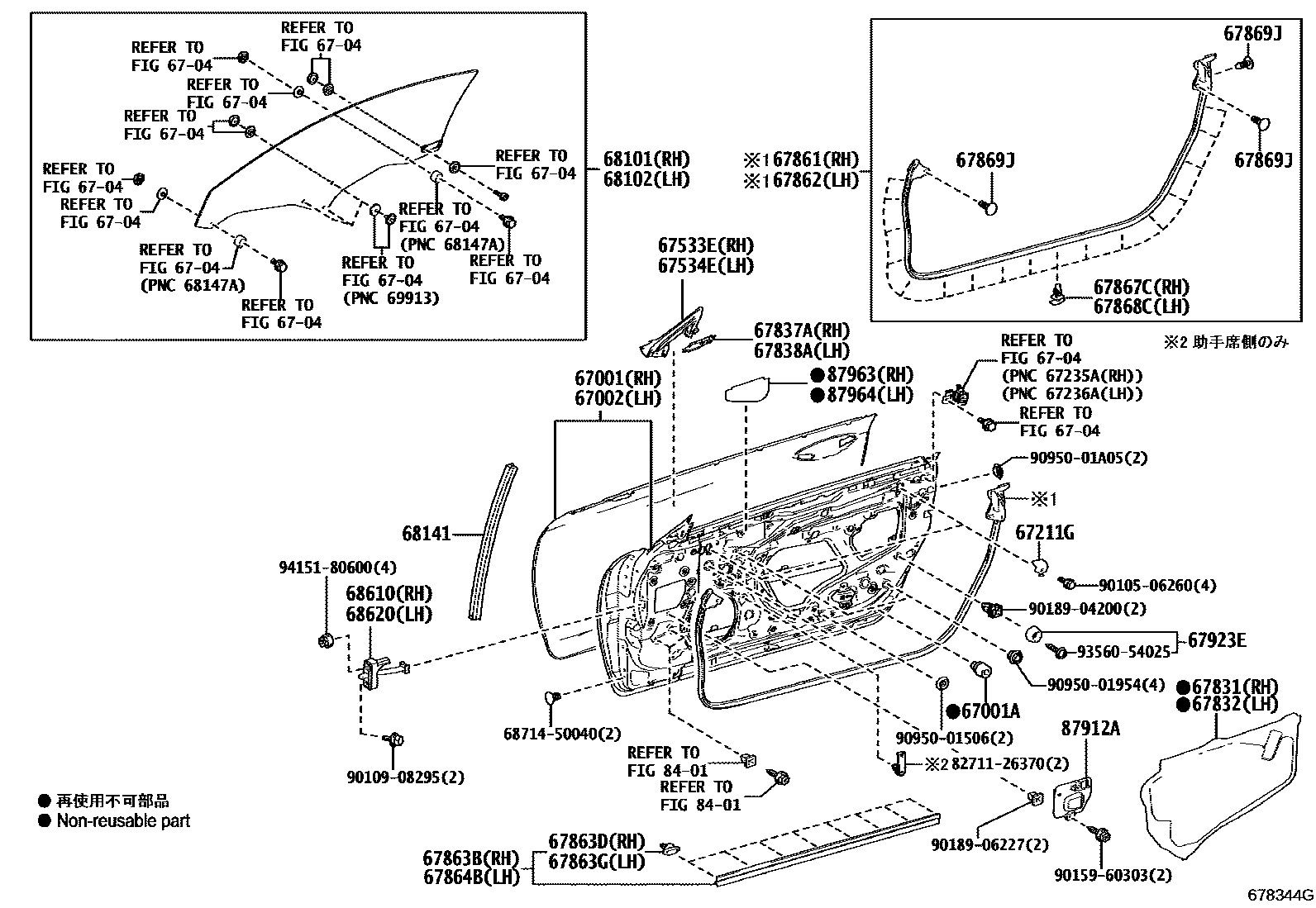

FRONT DOOR PANEL & GLASS
67001PANEL SUB-ASSY, FRONT DOOR, RH
67001ACUSHION, FRONT DOOR PANEL
67002PANEL SUB-ASSY, FRONT DOOR, LH
6704
67211GSTOP, FRONT DOOR WINDOW, UPPER
67533ESEAL, FRONT DOOR DIVISION BAR, RH
67534ESEAL, FRONT DOOR DIVISION BAR, LH
67831COVER, FRONT DOOR SERVICE HOLE, RH
67832COVER, FRONT DOOR SERVICE HOLE, LH
67837ASEAL, FRONT DOOR VENT, RH
67838ASEAL, FRONT DOOR VENT, LH
67861WEATHERSTRIP, FRONT DOOR, RH
67862WEATHERSTRIP, FRONT DOOR, LH
67863BWEATHERSTRIP, FRONT DOOR, NO.2 RH
67863DRETAINER, RH(FOR FRONT DOOR NO.2 WEATHERSTRIP)
67863GRETAINER, LH(FOR FRONT DOOR NO.2 WEATHERSTRIP)
67864BWEATHERSTRIP, FRONT DOOR, NO.2 LH
67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH
67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH
67869JCLIP, FRONT DOOR WEATHERSTRIP
67923ECUSHION, FRONT DOOR STIFFENER, NO.1
68101GLASS SUB-ASSY, FRONT DOOR, RH
68102GLASS SUB-ASSY, FRONT DOOR, LH
68141RUN, FRONT DOOR GLASS
68610CHECK ASSY, FRONT DOOR
68620CHECK ASSY, FRONT DOOR, LH
8401
87912APROTECTOR, OUTER MIRROR
87963COVER, OUTER MIRROR INSTALL HOLE, RH
87964COVER, OUTER MIRROR INSTALL HOLE, LH
6871450040
main68714-50040
8271126370WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-26370
9010506260
main90105-06260
9010908295
main90109-08295
9015960303
main90159-60303
9018904200
main90189-04200
9018906227
main90189-06227
9095001506
main90950-01506
9095001954
main90950-01954
9095001A05
main90950-01A05
9356054025
main93560-54025
9415180600
main94151-80600
42 parts on this diagram · 2 diagrams in section
