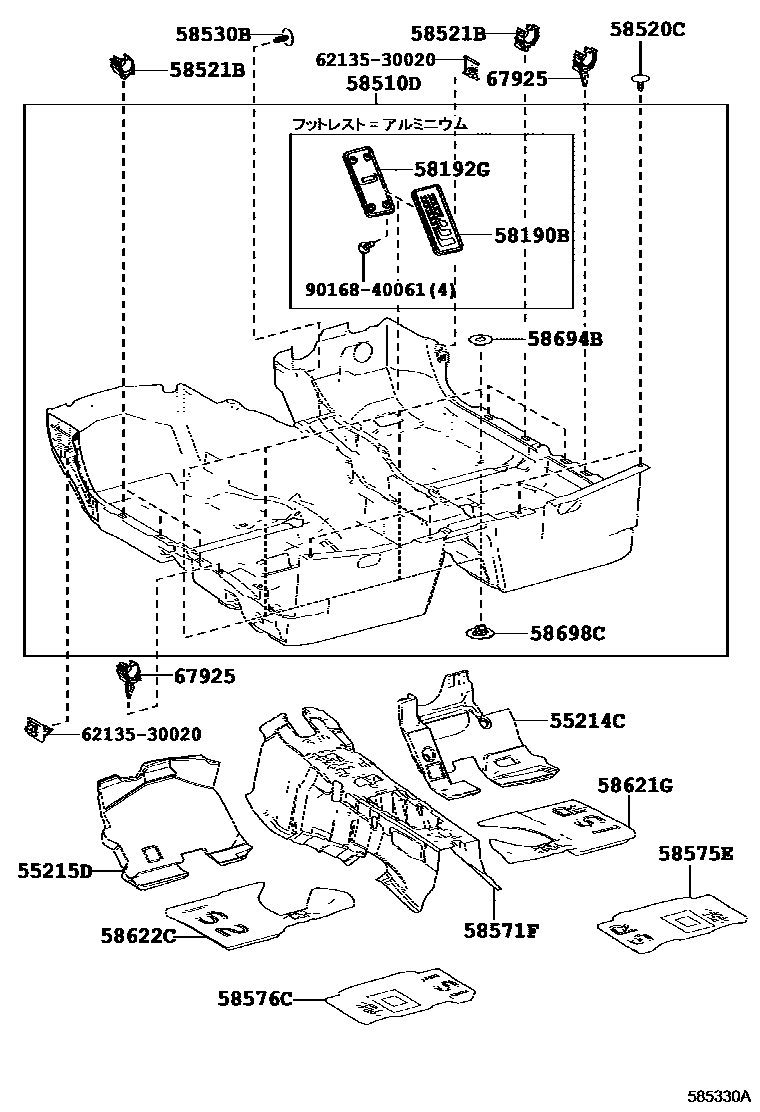

MAT & CARPET

55214CPAD, DASH PANEL INSULATOR, NO.2

main55214-53100iAVC10,GSC10201409-201810

55215DPAD, DASH PANEL INSULATOR, NO.3

main55215-53110iAVC10,GSC10201409-201810

58190BREST ASSY, FRONT FLOOR FOOT

58192GPANEL, FOOTREST, NO.2

58510DCARPET ASSY, FLOOR, FRONT

main58510-24370-C1iGSC10201409-201609

BLACK,TRIM1#,2#,4#,5#

sub58510-24530

main58510-24380-C1iAVC10201409-201609

BLACK,TRIM1#,2#,4#,5#

sub58510-24540

main58510-24530-C0iASC10,GSC10201810

BLACK,TRIM2#,3#,4#,5#

main58510-24530-C0iASC10,GSC10201609-201810

BLACK,TRIM1#,2#,4#,5#

main58510-24540-C0iAVC10201810

BLACK,TRIM2#,3#,4#,5#

main58510-24540-C0iAVC10201609-201810

BLACK,TRIM1#,2#,4#,5#

58520CCLIP(FOR FRONT FLOOR CARPET)

main90467-05164-B8iASC10,AVC10,GSC10201409-201810

LT.GRAY

sub90467-05164

58521BHOOK, FLOOR CARPET

main58521-53060iASC10,AVC10,GSC10201409-201810

58530BCLIP(FOR FRONT FLOOR CARPET)

main90467-07049-23iASC10,AVC10,GSC10201701-201810

BLACK,TRIM1#,2#,3#,4#,5#

sub90467-07049

main90467-07049-23iASC10,AVC10,GSC10201810

BLACK,TRIM2#,3#,4#,5#

sub90467-07049

main90467-07049-C0iAVC10,GSC10201409-201701

BLACK,TRIM1#,2#,3#,4#,5#

sub90467-07049

58571FPAD, FRONT FLOOR, FRONT

main58571-53070iGSC10201409-201810

main58571-53090iAVC10201409-201810

58575EPAD, FRONT FLOOR, REAR NO.1

main58575-24010iAVC10,GSC10201409-201810

58576CPAD, FRONT FLOOR, REAR NO.2

main58576-24010iAVC10,GSC10201409-201810

58621GPAD, FRONT FLOOR SILENCER, RH

main58621-53051iAVC10,GSC10201409-201810

58622CPAD, FRONT FLOOR SILENCER, LH

main58622-53061iAVC10,GSC10201409-201810

58694BPLATE, MAT SET, UPPER

main58694-78010iAVC10,GSC10201409-201810

58698CPLATE, MAT SET, LOWER

main58698-78010iAVC10,GSC10201409-201810

67925COVER, DOOR SCUFF PLATE

main67925-24010iAVC10,GSC10201409-201810

6213530020FRAME, REAR SIDE WINDOW

main62135-30020

9016840061

main90168-40061

18 parts on this diagram · 1 diagram in section
