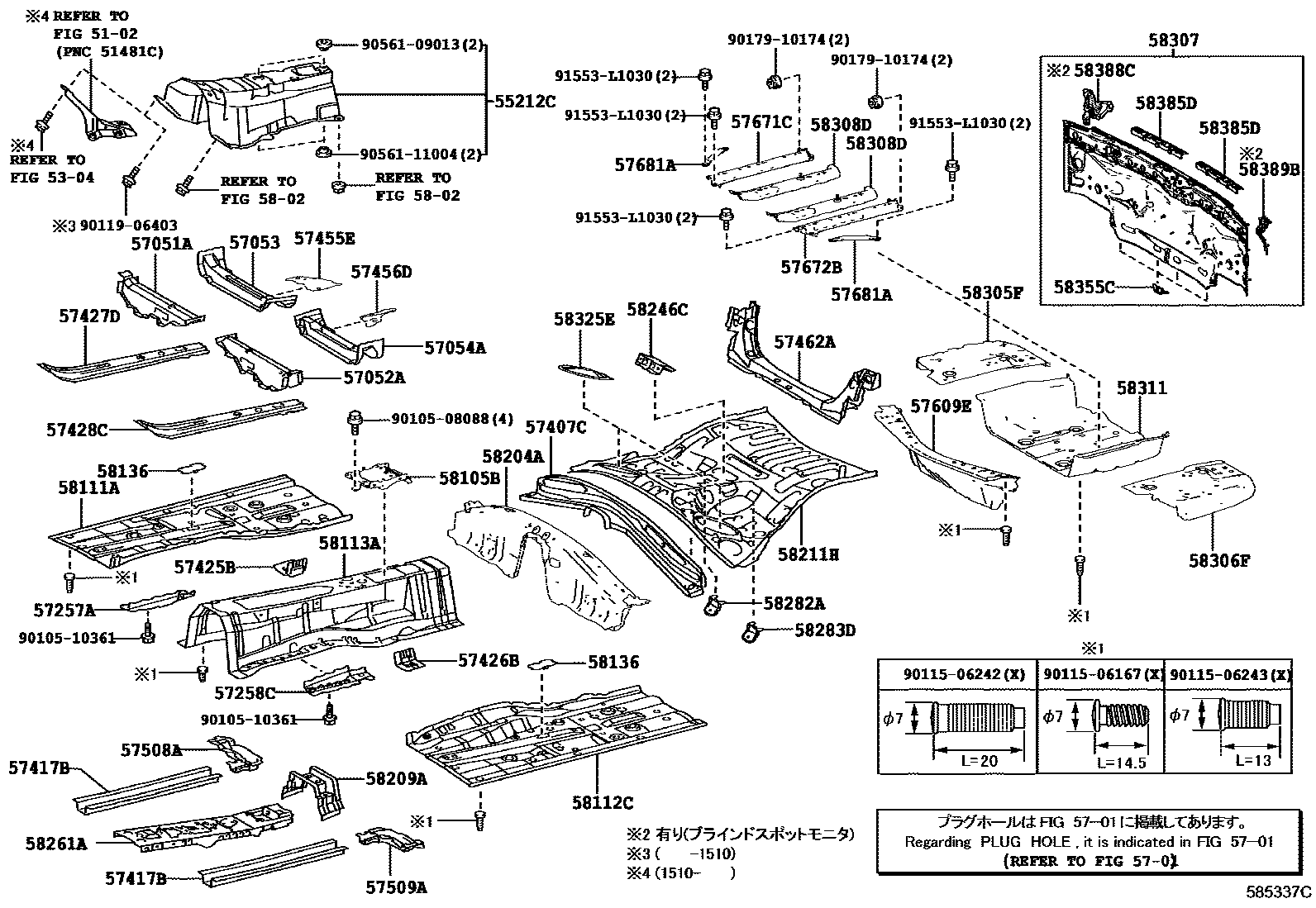

FLOOR PAN & LOWER BACK PANEL
5102
5304
55212CSILENCER, FRONT PANEL, LOWER
5701
57051AMEMBER SUB-ASSY, FRONT FLOOR CROSS, RH
57052AMEMBER SUB-ASSY, FRONT FLOOR CROSS, LH
57053REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, RH
57054AREINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, LH
57257ABRACKET, ENGINE REAR MOUNTING MEMBER, RH
57258CBRACKET, ENGINE REAR MOUNTING MEMBER, LH
57407CMEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.1
57417BREINFORCEMENT, FRONT FLOOR UNDER
57425BREINFORCEMENT, FRONT FLOOR, NO.2 RH
57426BREINFORCEMENT, FRONT FLOOR, NO.2 LH
57427DREINFORCEMENT, FRONT FLOOR, NO.3 RH
57428CREINFORCEMENT, FRONT FLOOR, NO.3 LH
57455EPLATE, FRONT FLOOR CROSSMEMBER, NO.3 RH
57456DPLATE, FRONT FLOOR CROSSMEMBER, NO.3 LH
57462AMEMBER, CENTER FLOOR CROSS, NO.2
57508AREINFORCEMENT SUB-ASSY, FRONT FLOOR, RH
57509AREINFORCEMENT SUB-ASSY, FRONT FLOOR, LH
57609EREINFORCE SUB-ASSY, SIDE MEMBER TO FLOOR, LH
57671CBRACE, REAR FLOOR NO.1 CROSSMEMBER, RH
57672BBRACE, REAR FLOOR NO.1 CROSSMEMBER, LH
57681ABRACE, REAR FLOOR NO.2 CROSSMEMBER, OUTER
5802
58105BPANEL SUB-ASSY, FRONT FLOOR REAR UPPER SUB
58111APAN, FRONT FLOOR, RH
58112CPAN, FRONT FLOOR, LH
58113APANEL, FRONT FLOOR, CENTER
58136COVER, FRONT FLOOR HOLE
58204AREINFORCEMENT SUB-ASSY, CENTER FLOOR PANEL, LH
58209AREINFORCEMENT SUB-ASSY, DRIVE SHAFT CENTER SUPPORT
58211HPAN, CENTER FLOOR
58246CBRACKET, REAR SEAT HINGE, CENTER NO.2
58261ACOVER, TRANSMISSION
58282ABASE, BELT ANCHOR TO FLOOR PAN, NO.3 RH
58283DBASE, BELT ANCHOR TO FLOOR PAN, NO.3 LH
58305FPANEL SUB-ASSY, REAR FLOOR SIDE, RH
58306FPANEL SUB-ASSY, REAR FLOOR SIDE, LH
58307PANEL SUB-ASSY, BODY LOWER BACK
58308DBRACKET SUB-ASSY, REAR FLOOR CROSSMEMBER
58311PAN, REAR FLOOR
58325ECOVER, REAR FLOOR SERVICE HOLE
58355CBRACKET, REAR BUMPER ARM
58385DBRACKET, REAR BUMPER COVER
58388CPLATE, BODY LOWER BACK REINFORCEMENT, RH
58389BPLATE, BODY LOWER BACK REINFORCEMENT, LH
9010508088
9010510361
9011506167
9011506242
9011506243
9011906403
9017910174
9056109013
9056111004
91553L1030
58 parts on this diagram · 3 diagrams in section
