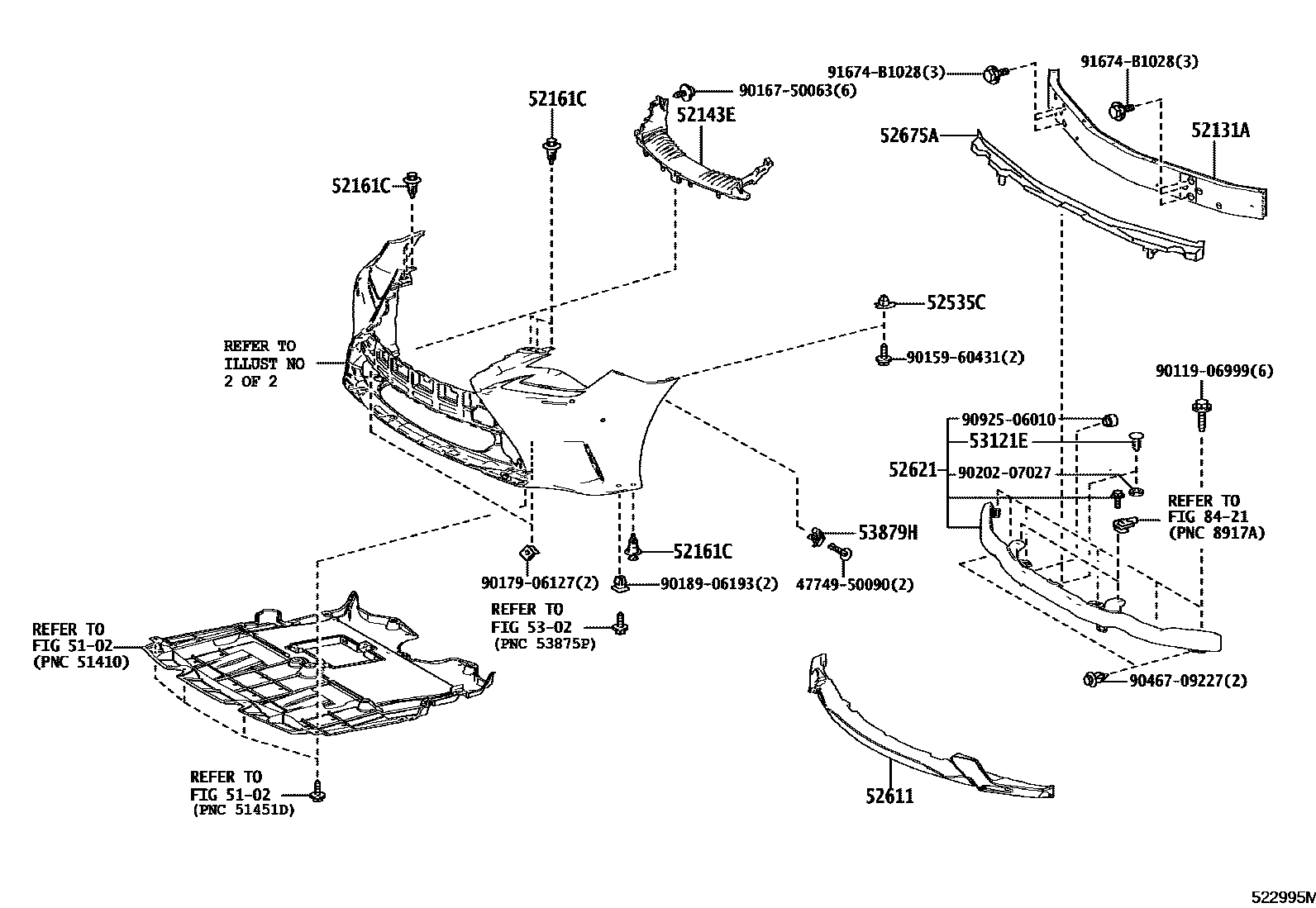

FRONT BUMPER & BUMPER STAY

0001 1 0002 1 0003 1F SPORT 0004 1F SPORT 0005 1 0006 1

5102

52131AREINFORCEMENT, FRONT BUMPER

main52131-24120iAVC10,GSC10201409-201810

main52131-24160iASC10,AVC10,GSC10201810

52143EPLATE, FRONT ENERGY ABSORBER MOUNTING

main52143-24050iASC10,AVC10,GSC10201409-201810

main52143-24060iASC10,AVC10,GSC10201810

52161CPIECE, FRONT BUMPER

main52161-16010iAVC10,GSC10201409-201810

52535RETAINER, FRONT BUMPER SIDE, RH

main52535-24040iAVC10,GSC10201409-201810

main52535-24060iASC10,AVC10,GSC10201810

52535CRETAINER, FRONT BUMPER SIDE

main52535-50060iAVC10,GSC10201409-201810

52611ABSORBER, FRONT BUMPER ENERGY

main52611-24090iAVC10,GSC10201409-201810

main52611-24120iASC10,AVC10,GSC10201810

52621CHAMBER, POP UP HOOD

main52621-24030iAVC10,GSC10201409-201810

main52621-24060iASC10,AVC10,GSC10201810

52675ASUPPORT, FRONT BUMPER SIDE, NO.1

main52677-24020iAVC10,GSC10201409-201810

5302

53121ECLIP(FOR FRONT BUMPER), NO.1

main90467-08186-C0iAVC10,GSC10201409-201610

BLACK

sub90467-08186

main90467-08186-C3iASC10,AVC10,GSC10201610-201810

BLACK

sub90467-08186

53879HRETAINER, FRONT FENDER LINER

main53879-30050iAVC10,GSC10201409-201810

main53879-30060iASC10,AVC10,GSC10201810

8421

4774950090CLIP, PIN HOLD

main47749-50090

9011906999

main90119-06999

9015960431

main90159-60431

9016750063

main90167-50063

9017906127

main90179-06127

9018906193

main90189-06193

9020207027

main90202-07027

9046709227

main90467-09227

9092506010

main90925-06010

91674B1028

main91674-B1028

23 parts on this diagram · 6 diagrams in section
