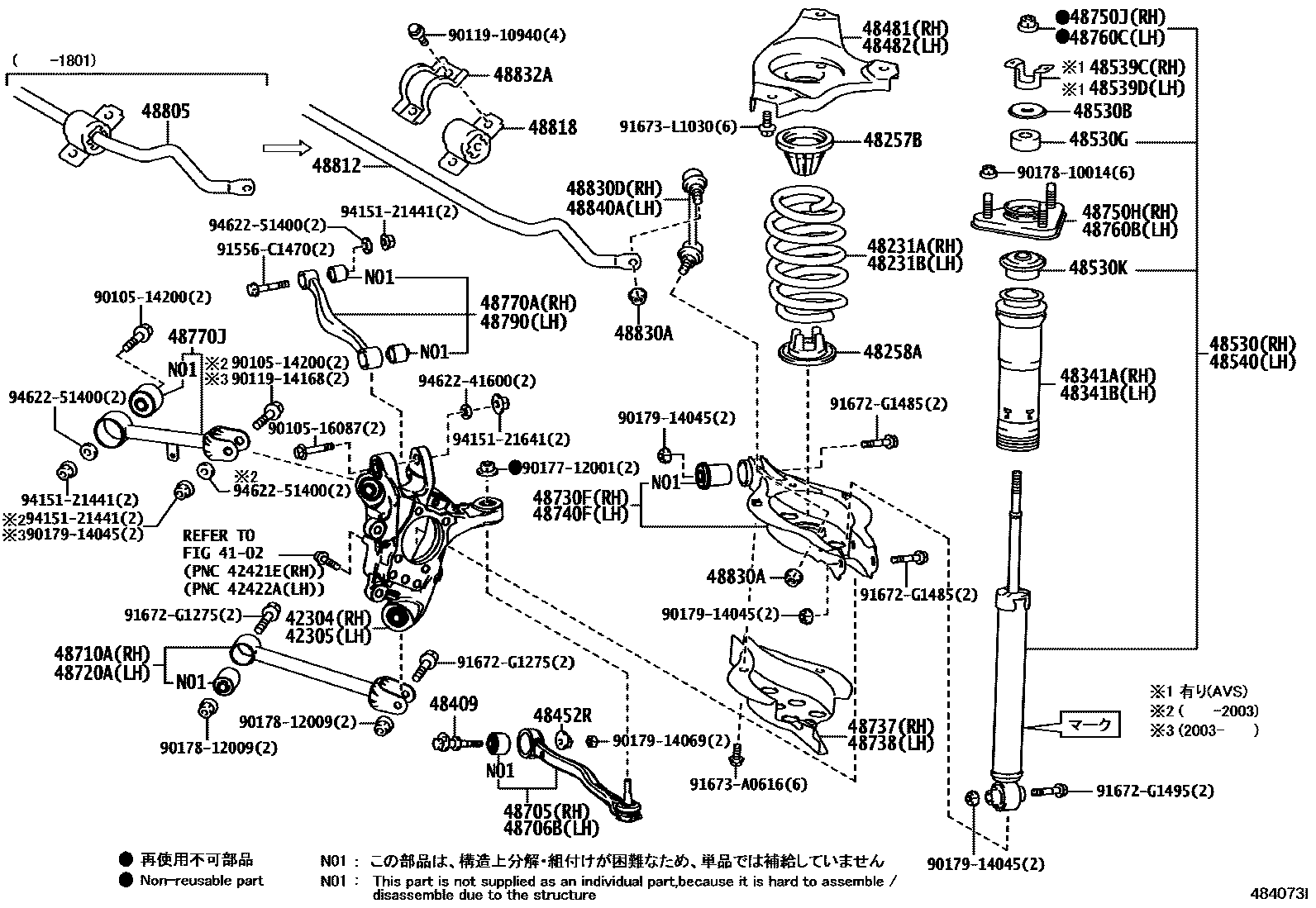

REAR SPRING & SHOCK ABSORBER

0001 1 0002 1��(LDH)

4102

42304CARRIER SUB-ASSY, REAR AXLE, RH

main42304-30130iAVC10,GSC10201409-201510

42305CARRIER SUB-ASSY, REAR AXLE, LH

main42305-30130iASC10,AVC10,GSC10201810

48231ASPRING, COIL, REAR RH

main48231-24310iASC10,GSC10201810-202001

main48231-24311iASC10,GSC10202002

main48231-24340iAVC10201810-202002

main48231-24341iAVC10202003

main48231-24320supersedes 48231-24310iGSC10201409-201510

main48231-24321supersedes 48231-24310iGSC10202007

48231BSPRING, COIL, REAR LH

main48231-24310iASC10,GSC10201510-201810

main48231-24311iASC10,GSC10202002

main48231-24340iAVC10201810-202002

main48231-24341iAVC10202003

main48231-24320supersedes 48231-24310iGSC10201810-202006

main48231-24321supersedes 48231-24310iGSC10202007

48257BINSULATOR, REAR COIL SPRING, UPPER

main48257-30080×2iASC10,AVC10,GSC10201510-201810

48258AINSULATOR, REAR COIL SPRING, LOWER

main48258-30050×2iASC10,AVC10,GSC10201810

48341ABUMPER, REAR SPRING, NO.1 RH

main48341-30160iASC10,AVC10,GSC10201510-201810

main48341-53060iASC10,AVC10,GSC10202301

48341BBUMPER, REAR SPRING, NO.1 LH

main48341-30160iAVC10,GSC10201409-201510

main48341-53060iASC10,AVC10,GSC10202301

48409CAM SUB-ASSY, REAR SUSPENSION TOE ADJUST

main48409-30031×2iASC10,AVC10,GSC10201810

48452RPLATE, REAR SUSPENSION TOE ADJUST, NO.2

main48452-30051×2iASC10,AVC10,GSC10201510-201810

48481SEAT, REAR SPRING, UPPER

main48481-30010iASC10,AVC10,GSC10201810

48482SEAT, REAR SPRING, UPPER LH

main48482-30030iAVC10,GSC10201409-201510

48530ABSORBER ASSY, SHOCK, REAR RH

main48530-80736supersedes 48530-80B50iAVC10201409-201510

main48530-80737supersedes 48530-80B48iASC10,GSC10201510-201801

main48530-80830supersedes 48530-80B48iASC10,GSC10201801-201810

main48530-80833supersedes 48530-80B50iAVC10201801-201810

48530BWASHER, REAR SHOCK ABSORBER CUSHION, NO.1

main90948-03021×2iASC10,AVC10,GSC10201810

48530GCUSHION, REAR SHOCK ABSORBER, NO.1

main90948-01101×2iAVC10,GSC10201409-201510

main90948-01104×2iASC10,AVC10,GSC10202301

48530KCUSHION, REAR SHOCK ABSORBER, NO.2

main48752-53010×2iASC10,AVC10,GSC10202301

main90948-01102×2iASC10,AVC10,GSC10201810-202301

48539CBRACKET, ACTUATOR SUPPORT, REAR RH

48539DBRACKET, ACTUATOR SUPPORT, REAR LH

48540ABSORBER ASSY, SHOCK, REAR LH

main48530-80736supersedes 48530-80B50iAVC10201409-201510

main48530-80737supersedes 48530-80735iGSC10201409-201510

main48530-80830supersedes 48530-80B48iASC10,GSC10201801-201810

main48530-80833supersedes 48530-80B50iAVC10201801-201810

48705LINK SUB-ASSY, TOE CONTROL, RH

main48705-30120iAVC10,GSC10201409-201510

48706BLINK SUB-ASSY, TOE CONTROL, LH

main48706-30050iAVC10,GSC10201409-201510

48710AARM ASSY, REAR SUSPENSION, NO.1 RH

main48710-30240iAVC10,GSC10201409-201510

48720AARM ASSY, REAR SUSPENSION, NO.1 LH

main48710-30240iAVC10,GSC10201409-201510

48730FARM ASSY, REAR SUSPENSION, NO.2 RH

main48730-30140iAVC10,GSC10201409-201510

48737COVER, REAR SUSPENSION ARM, RH

main48737-30020iAVC10,GSC10201409-201510

48738COVER, REAR SUSPENSION ARM, LH

main48738-30020iAVC10,GSC10201409-201510

48740FARM ASSY, REAR SUSPENSION, NO.2 LH

main48740-30140iAVC10,GSC10201409-201510

48750HSUPPORT ASSY, REAR SUSPENSION, RH

main48750-30200iAVC10,GSC10201409-201510

48750JNUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH)

main90179-12127iAVC10,GSC10201409-201510

48760BSUPPORT ASSY REAR SUSPENSION, LH

main48750-30200iAVC10,GSC10201409-201510

48760CNUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH)

main90179-12127iAVC10,GSC10201409-201510

48770AARM ASSY, UPPER CONTROL, REAR RH

main48790-30130iAVC10,GSC10201409-201510

main48790-53060iASC10,AVC10,GSC10202009

48770JARM ASSY, UPPER CONTROL, REAR NO.1

main48770-30150×2iAVC10,GSC10201409-201510

main48770-30151×2iASC10,AVC10,GSC10201607-201810

48790ARM ASSY, UPPER CONTROL, REAR LH

main48790-30140iAVC10,GSC10201409-201510

main48790-53050iASC10,AVC10,GSC10202009

48805BAR SUB-ASSY, REAR STABILIZER

main48805-24040iAVC10,GSC10201409-201510

main48805-24041iASC10,AVC10,GSC10201708-201801

48812BAR, STABILIZER, REAR

main48812-24152iASC10,AVC10,GSC10201801-201810

main48812-53140iASC10,AVC10,GSC10202009

48818BUSH, STABILIZER, REAR

main48818-24040×2iASC10,AVC10,GSC10201801-201810

main48818-53090×2iASC10,AVC10,GSC10202009

48830ANUT(FOR REAR STABILIZER LINK)

main90179-12151×4iAVC10,GSC10201409-201510

48830DLINK ASSY, REAR STABILIZER, RH

main48830-30100iAVC10,GSC10201409-201510

48832ABRACKET, REAR STABILIZER BAR, NO.1

main48832-30070×2iAVC10,GSC10201409-201510

48840ALINK ASSY, REAR STABILIZER, LH

main48840-30030iAVC10,GSC10201409-201510

9010514200

main90105-14200

9010516087

main90105-16087

9011910940

main90119-10940

9011914168

main90119-14168

9017712001

main90177-12001

9017810014

main90178-10014

9017812009

main90178-12009

9017914045

main90179-14045

9017914069

main90179-14069

91556C1470

main91556-C1470

91672G1275

main91672-G1275

91672G1485

main91672-G1485

91672G1495

main91672-G1495

91673A0616

main91673-A0616

91673L1030

main91673-L1030

9415121441

main94151-21441

9415121641

main94151-21641

9462241600

main94622-41600

9462251400

main94622-51400

61 parts on this diagram · 2 diagrams in section
