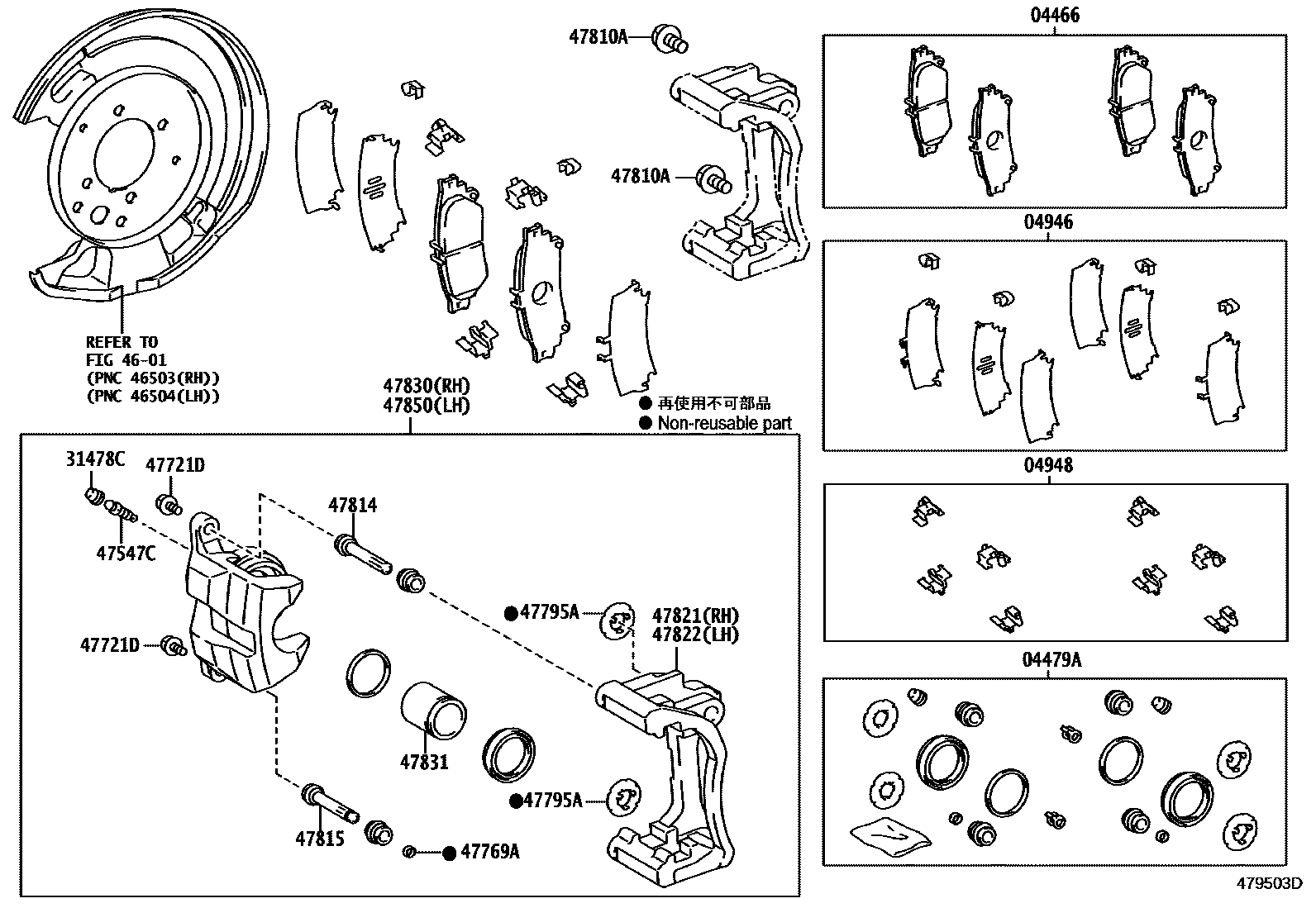

REAR DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1

04466PAD KIT, DISC BRAKE, REAR

main04466-30311iAVC10,GSC10201409-201510

sub04466-30312

main04466-30360iASC10,AVC10,GSC10202009-202206

sub04466-30400

main04466-24030iASC10,GSC10202303

main04466-F4020supersedes 04466-30400iASC10,GSC10202009-202303

sub04466-30410

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-30580iASC10,AVC10,GSC10201810-202009

main04479-30610iASC10,AVC10,GSC10202009

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-30230iAVC10,GSC10201409-201510

main04946-30250iASC10,AVC10,GSC10202009-202206

sub04946-42060

main04946-30270supersedes 04946-42060iASC10,AVC10,GSC10202009-202501

04948FITTING KIT, DISC BRAKE, REAR

main04948-12070iASC10,AVC10,GSC10202009-202205

main04948-30240iASC10,AVC10,GSC10201810-202009

main04948-12071supersedes 04948-52060iASC10,AVC10,GSC10202501

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-30010×2iASC10,AVC10,GSC10202009

main31478-50020×2iASC10,AVC10,GSC10201510-201810

4601

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-20010×2iASC10,AVC10,GSC10201810

47721DBOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)

main90015-AA603×4iASC10,AVC10,GSC10202009

main90105-08164×4iASC10,AVC10,GSC10201510-201810

47769ABUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47769-50010×2supersedes 47879-33240iASC10,AVC10,GSC10202009-202206

main47879-33240×2iAVC10,GSC10201409-201510

47795APLATE, REAR DISC BRAKE CALIPER, NO.1

main47895-30350×4supersedes 47895-30350iAVC10,GSC10201409-201510

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90105-12401×4iASC10,AVC10,GSC10201709-201810

main90119-12416×4iAVC10,GSC10201409-201510

47814PIN, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47814-33240×2iAVC10,GSC10201409-201510

main47814-78010×2iASC10,AVC10,GSC10202009

47815PIN, REAR CYLINDER SLIDE, NO.2(FOR REAR DISC BRAKE)

main47815-33240×2iASC10,AVC10,GSC10201510-201810

main47815-78010×2iASC10,AVC10,GSC10202009

47821MOUNTING, REAR DISC BRAKE CYLINDER, RH

main47821-30350iAVC10,GSC10201409-201510

main47821-30460iASC10,AVC10,GSC10202009

main47821-24090supersedes 47821-30350iASC10,AVC10,GSC10202009-202501

main47821-30441supersedes 47821-30350iASC10,AVC10,GSC10201810-202009

main47821-30470iASC10,GSC10202009

47822MOUNTING, REAR DISC BRAKE CYLINDER, LH

main47822-30350iAVC10,GSC10201409-201510

main47822-30460iASC10,AVC10,GSC10202009

main47822-24090supersedes 47822-30350iASC10,AVC10,GSC10202009-202501

main47822-30441supersedes 47822-30350iASC10,AVC10,GSC10201810-202009

main47822-30470iASC10,GSC10202009

47830CYLINDER ASSY, DISC BRAKE, REAR RH

main47830-30350iAVC10,GSC10201409-201510

main47830-30460iASC10,AVC10,GSC10202009

main47830-24090supersedes 47830-30350iASC10,AVC10,GSC10202009-202501

main47830-30440iASC10,GSC10201510-201810

main47830-30441supersedes 47830-30350iASC10,AVC10,GSC10201810-202009

main47830-30470iASC10,GSC10202009

47831PISTON, REAR DISC BRAKE

main47831-30310×2iAVC10,GSC10201409-201510

main47831-58030×2supersedes 47831-30460iASC10,GSC10202009-202210

47850CYLINDER ASSY, DISC BRAKE, REAR LH

main47850-30350iAVC10,GSC10201409-201510

main47850-30460iASC10,AVC10,GSC10202009

main47850-24090supersedes 47850-30350iASC10,AVC10,GSC10202009-202501

main47850-30440iASC10,GSC10201510-201810

main47850-30441supersedes 47850-30350iASC10,AVC10,GSC10201810-202009

main47850-30470iASC10,GSC10202009

18 parts on this diagram · 2 diagrams in section
