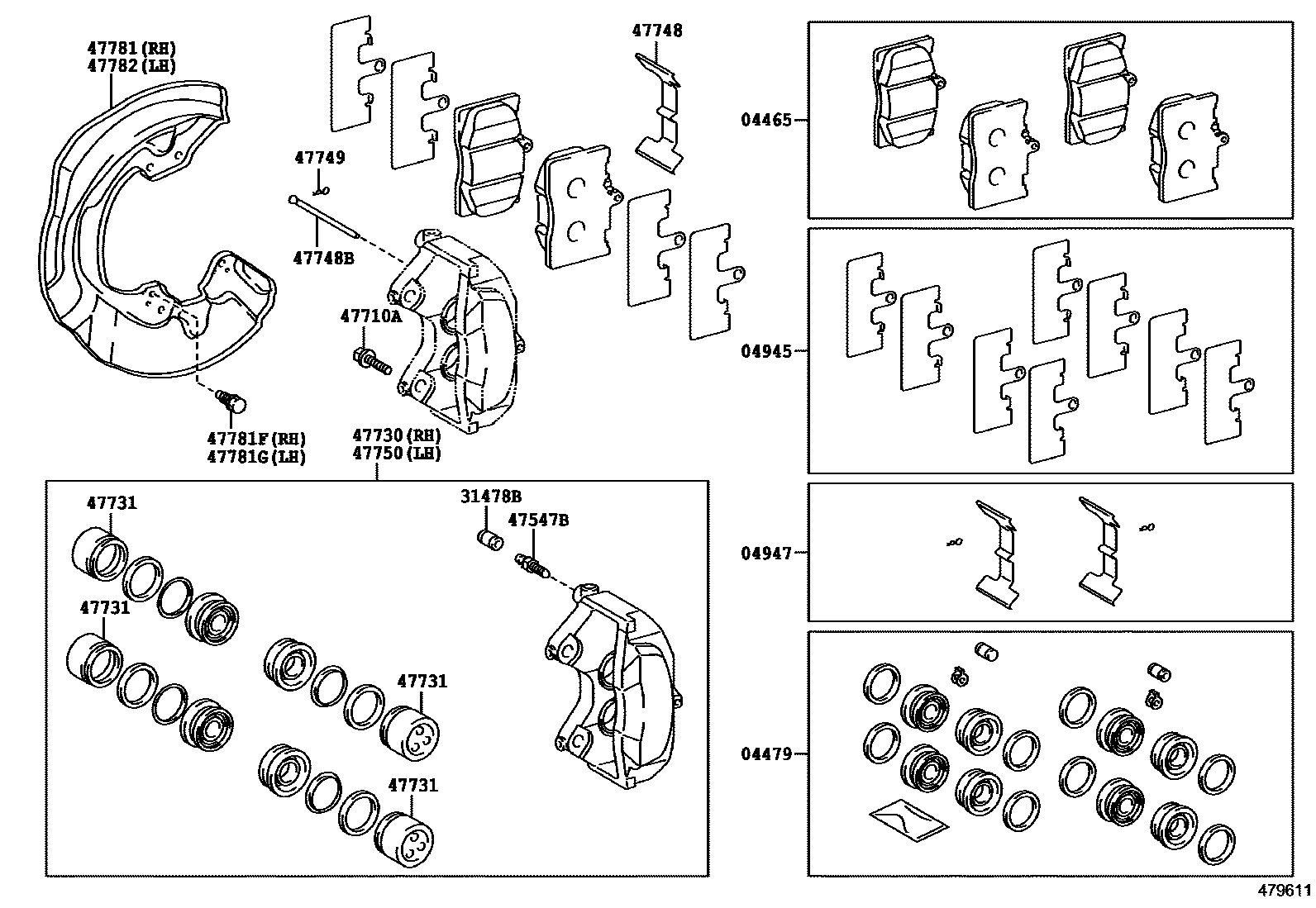

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 118��������

04465PAD KIT, DISC BRAKE, FRONT

main04465-24050iASC10,AVC10,GSC10202009

main04465-30510iAVC10,GSC10201409-201510

main04465-24060supersedes 04465-30510iASC10,AVC10,GSC10202501

main04465-30491supersedes 04465-30510iASC10,GSC10201810-202009

main04465-30500iAVC10201409-201510

04479CYLINDER KIT, DISC BRAKE, FRONT

main04479-50130iAVC10,GSC10201409-201510

main04478-22040supersedes 04479-50130iAVC10201510-201810

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-24020iASC10,AVC10,GSC10202009

main04945-30370iAVC10,GSC10201409-201510

main04945-30340supersedes 04945-30370iASC10,AVC10,GSC10202009-202501

main04945-30350iAVC10201810-202009

04947FITTING KIT, DISC BRAKE, FRONT

main04947-22070iAVC10,GSC10201409-201510

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-14010×2iAVC10,GSC10201409-201510

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-50010×2iASC10,AVC10,GSC10201810

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90119-12415×4iASC10,AVC10,GSC10201810

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-22460iAVC10,GSC10201409-201510

main47730-24120iASC10,AVC10,GSC10202009-202501

main47730-30560iASC10,GSC10202009

main47730-30600iASC10,AVC10,GSC10201810-202009

47731PISTON, FRONT DISC BRAKE

main47731-50070×8iAVC10,GSC10201409-201510

main47731-30560×8iASC10,GSC10201510-201810

47748SPRING, ANTI-RATTLE, NO.1(FOR FRONT DISC BRAKE)

main47748-22460×2iASC10,AVC10,GSC10201810

47748BPIN, W/HOLE(FOR FRONT DISC BRAKE ANTI-RATTLE)

main47735-50020×2iAVC10,GSC10201409-201510

47749CLIP, PIN HOLD

main47749-50030×2iASC10,AVC10,GSC10201510-201810

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-22460iAVC10,GSC10201409-201510

main47750-24120iASC10,AVC10,GSC10202009-202501

main47750-30560iGSC10201409-201510

main47750-30600iASC10,GSC10201510-201810

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-30260iAVC10,GSC10201409-201510

main47781-30270supersedes 47781-30260iASC10,GSC10201510-201810

47781FBOLT(FOR DUST COVER TO STEERING KNUCKLE ARM RH)

main90119-06508×4iASC10,AVC10,GSC10201810

47781GBOLT(FOR DUST COVER TO STEERING KNUCKLE ARM LH)

main90119-06508×4iASC10,AVC10,GSC10201510-201810

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-30260iAVC10,GSC10201409-201510

main47782-30270supersedes 47782-30260iASC10,GSC10201510-201810

17 parts on this diagram · 2 diagrams in section
