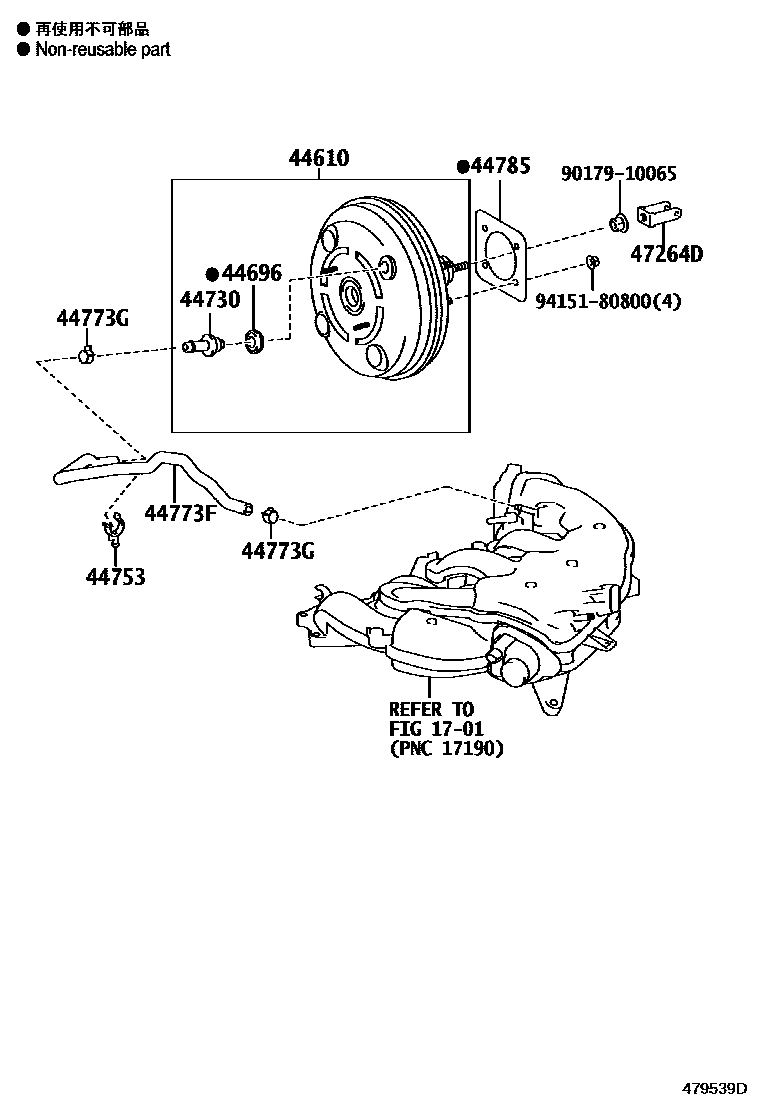

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1

1701

44610BOOSTER ASSY, BRAKE

main44610-24180supersedes 44610-24170iGSC10201510-201711

main44610-24220supersedes 44610-53550iASC10202009-202111

main44610-24230supersedes 44610-53490iGSC10201810-202009

main44610-24300supersedes 44610-53610iASC10202111-202501

main44610-24310supersedes 44610-53620iGSC10202111-202501

44696GROMMET, CHECK VALVE

main90480-24439iGSC10201409-201510

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-22150iGSC10201711-201810

main44730-30060iASC10,GSC10202009

main44730-60070iGSC10201409-201510

44753CLAMP, VACUUM RESERVOIR, NO.2

main44753-30320iGSC10201510-201711

44773FHOSE, UNION TO CHECK VALVE

main44773-30650iGSC10201409-201510

44773GCLIP(FOR UNION TO CHECK VALVE HOSE)

main90467-16014×2iGSC10201510-201810

44785GASKET, BRAKE BOOSTER

main44785-47010iASC10,GSC10201810

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-12060iASC10,GSC10202306

main47264-22040iASC10,GSC10201510-201810

main47264-63010iASC10,GSC10202111-202305

9017910065

main90179-10065

9415180800

main94151-80800

11 parts on this diagram · 3 diagrams in section
