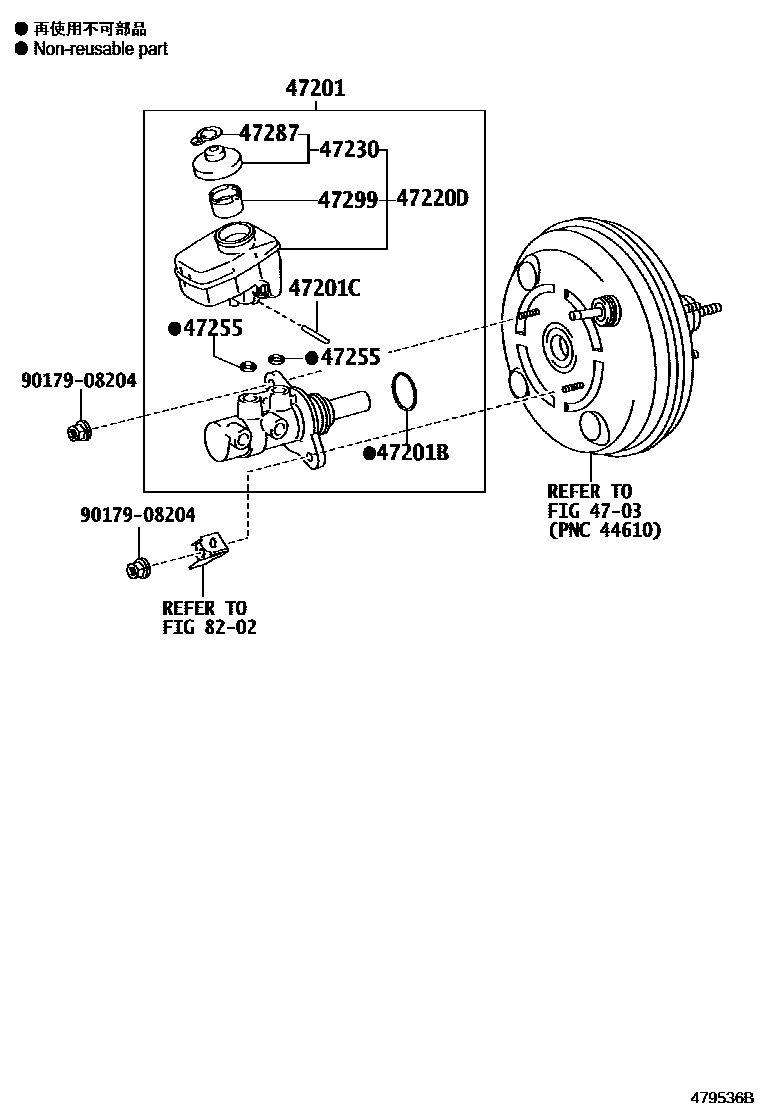

BRAKE MASTER CYLINDER

0001 1 0002 1 0003 1

4703

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-30792iGSC10201409-201711

main47201-30830iAVC10201409-202204

main47201-30880iASC10,GSC10201711-202111

main47201-53300iASC10201510-201711

main47201-53310iASC10,GSC10202111

main47201-53330iAVC10202204

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90015-AH002iASC10,GSC10201409-201810

47201CRING PIN, BRAKE MASTER CYLINDER

main90029-15803iAVC10,GSC10201409-201810

47220DRESERVOIR ASSY, BRAKE MASTER CYLINDER

main47220-30210iGSC10201409-201810

main47220-30230iAVC10201409-202204

main47220-53090iAVC10202204

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-11020iAVC10202204

main47230-20140iASC10,GSC10201409-202204

47255GROMMET, MASTER CYLINDER RESERVOIR

main90029-48001iAVC10,GSC10201409-201810

47287LABEL, BRAKE FLUID INFORMATION

main47287-02360iGSC10201711-201810

main47287-02360iASC10201711-201810

main47287-02360iASC10201810

main47287-20010iASC10201409-202204

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-20060iASC10,GSC10201409-201810

main47299-30190iAVC10201409-201810

8202

9017908204

main90179-08204

11 parts on this diagram · 3 diagrams in section
