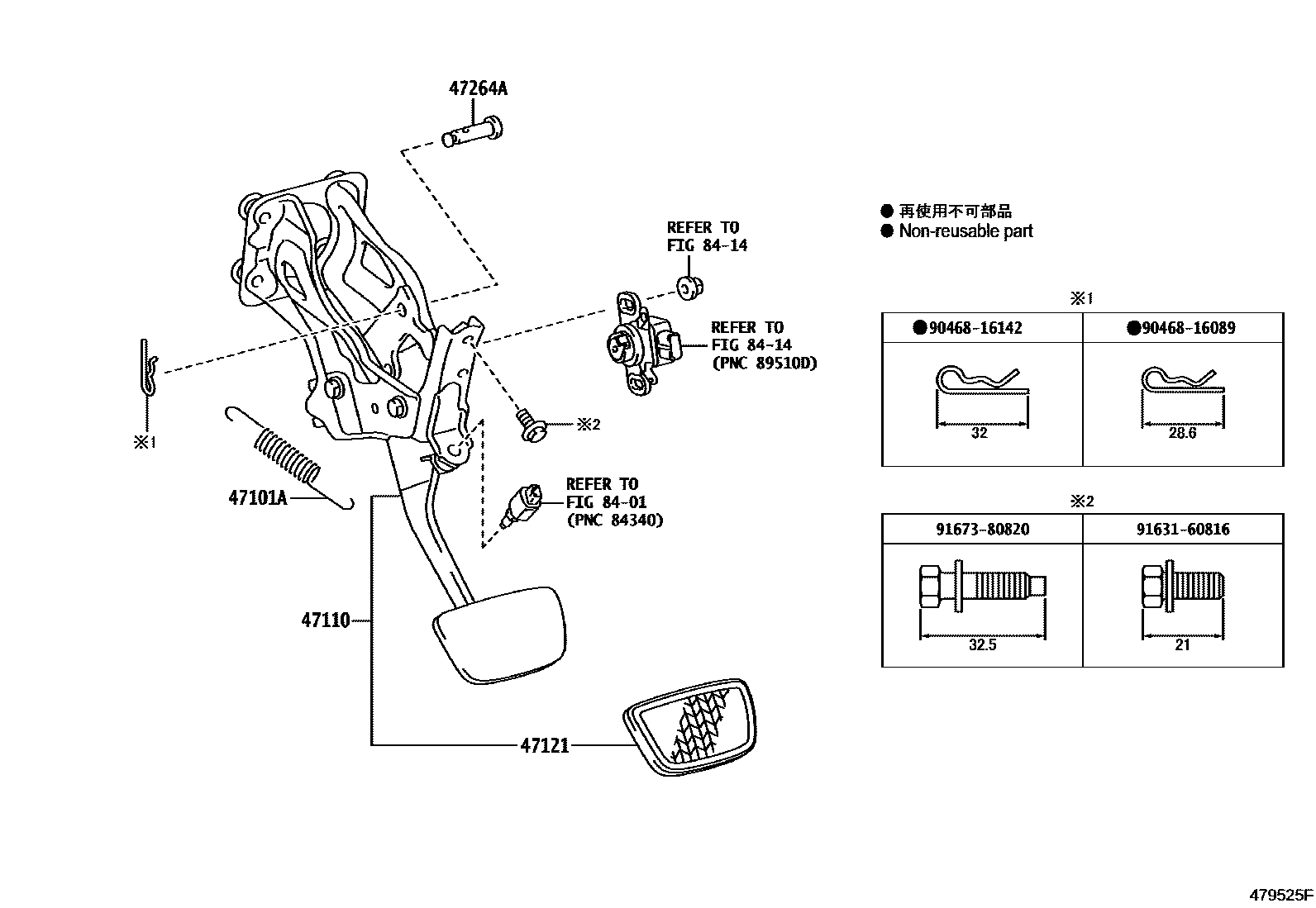

BRAKE PEDAL & BRACKET

0001 1 0002 1

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-11005iAVC10202009

main90507-12045iAVC10201409-202009

main90507-13009iASC10,GSC10202009-202111

main90507-13011iGSC10201409-202009

main90507-15015iASC10,GSC10202111

47110SUPPORT ASSY, BRAKE PEDAL

main47110-24100iASC10,GSC10201409-202008

main47110-24110iGSC10201409-201510

main47110-24120iAVC10201409-202008

sub47110-24330

main47110-24130iAVC10201409-201510

main47110-24180iASC10,GSC10201510-202008

sub47110-24300

main47110-24190iAVC10201510-202008

sub47110-24340

main47110-24290iASC10,GSC10202009-202111

main47110-24300iASC10,GSC10202009-202111

main47110-24330iAVC10202009-202110

sub47110-24331

main47110-24331iAVC10202111

main47110-24340iAVC10202009-202110

sub47110-24341

main47110-24341iAVC10202111

main47110-53360iASC10,GSC10202111

main47110-53370iASC10,GSC10202111

47121PAD, BRAKE PEDAL

main47121-11020iASC10,AVC10,GSC10202009

main47121-24010iASC10,AVC10,GSC10201510-202009

main47121-30080iASC10,AVC10,GSC10201409-202009

main47121-30090iAVC10,GSC10201409-201510

main47121-62010iASC10,AVC10,GSC10202009

47264APIN(FOR PUSH ROD)

main90249-06180iGSC10201409-202111

main90249-08308iASC10,GSC10202111

main90249-10199iAVC10201409-201810

8401

8414

9046816089

main90468-16089

9046816142

main90468-16142

9163160816

main91631-60816

9167380820

main91673-80820

10 parts on this diagram · 2 diagrams in section
