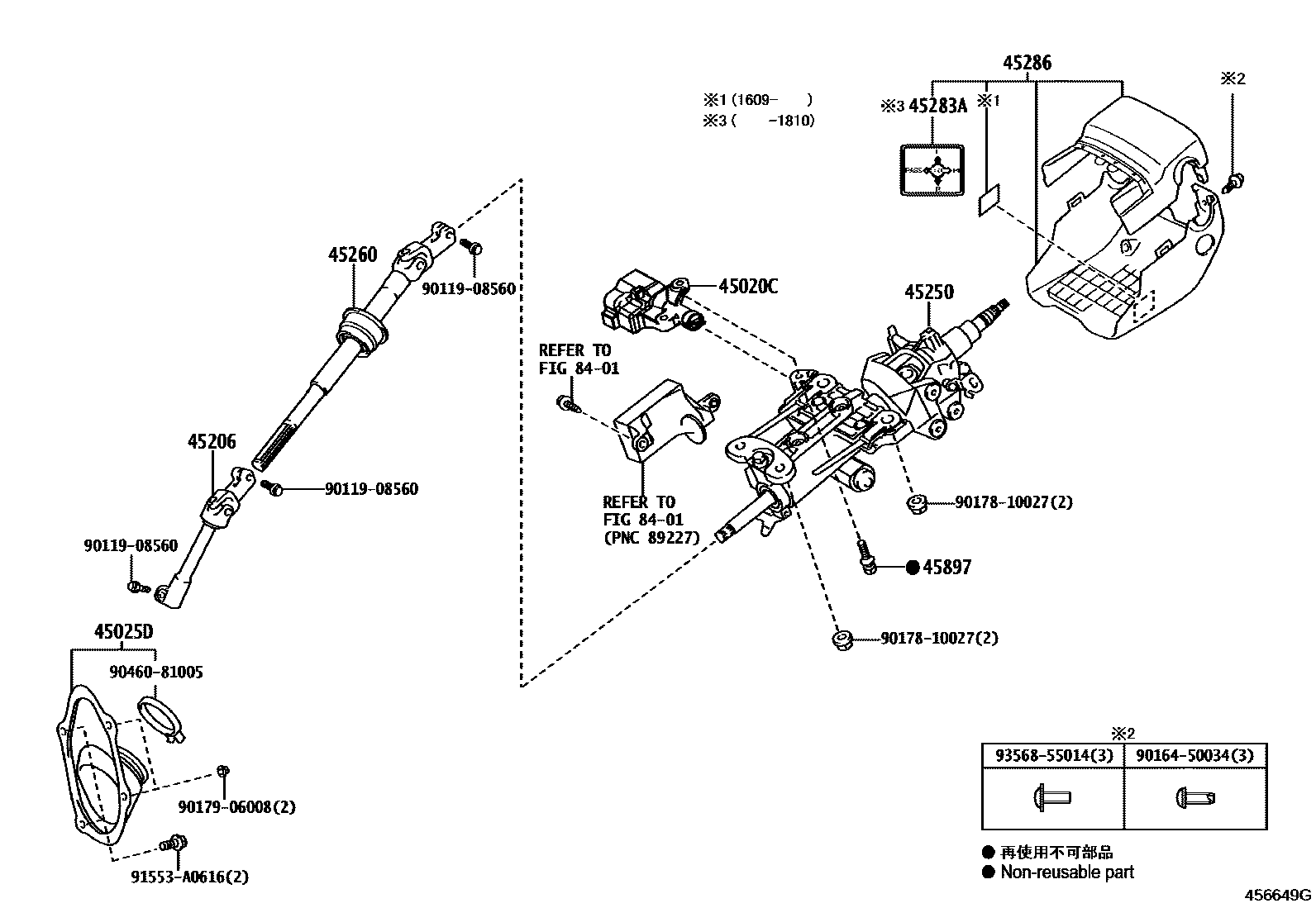

STEERING COLUMN & SHAFT

0001 1 0002 1F-SPORT

45020CACTUATOR ASSY, STEERING LOCK(W/ECU)

main45020-30B10iASC10,AVC10,GSC10201409-201810

main45020-53040iASC10,AVC10,GSC10201810

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-30350iASC10,AVC10,GSC10201409-201810

main45025-30370iGSC10201810

main45025-30370iGSC10201409-201810

45206YOKE SUB-ASSY, STEERING SLIDING W/SHAFT

main45206-30190iAVC10,GSC10201409-201810

45250COLUMN ASSY, STEERING

main45810-30230iAVC10,GSC10201409-201810

45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2

main45240-30180iGSC10201409-201810

main45240-30180iGSC10201810

main45260-30220iAVC10,GSC10201409-201810

45283APLATE, BEAM CHANGE & TURN SIGNAL CAUTION

main45283-22010iAVC10,GSC10201409-201810

45286COVER, STEERING COLUMN

main45286-53915-C0iAVC10,GSC10201409-201609

BLACK,TRIM1#,2#,3#,4#,5#

main45286-53924-C0iASC10,AVC10,GSC10201609-201810

BLACK,TRIM1#,2#,3#,4#,5#

main45286-53925-C0iASC10,AVC10,GSC10201810

BLACK,TRIM0#,2#,3#,4#,5#

45897BOLT, STEERING LOCK SET

main45897-12020iAVC10,GSC10201409-201810

8401

9011908560

main90119-08560

9016450034

main90164-50034

9017810027

main90178-10027

9017906008

main90179-06008

9046081005

main90460-81005

91553A0616

main91553-A0616

9356855014

main93568-55014

16 parts on this diagram · 2 diagrams in section
