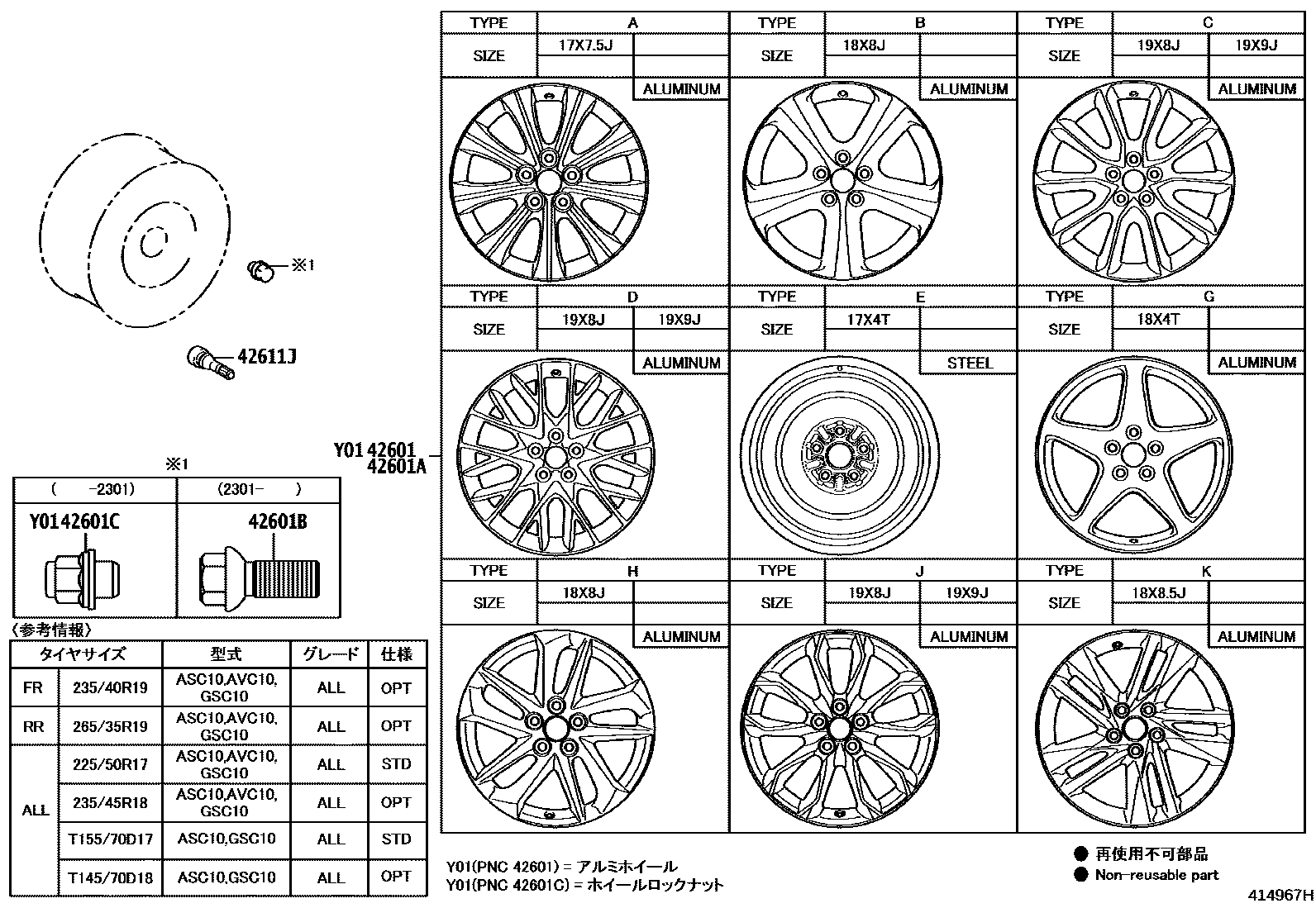

DISC WHEEL & WHEEL CAP

0001 1��������� 0002 1��������� 0003 1������������� 0004 1���������

42601WHEEL, DISC

main42611-24730iASC10,AVC10,GSC10201810-202301

main42611-30E61iAVC10,GSC10201409-201410

sub42611-30E62

main42611-30E62iAVC10,GSC10201411-201810

sub42611-30E63

main42611-53630iASC10,AVC10,GSC10202301

42601AWHEEL, DISC (FOR SPARE)

main42611-53320iGSC10201409-201908

sub42611-53321

main42611-53321iASC10,GSC10201909-202301

main4261B-53010iASC10,GSC10202301

42601BBOLT, HUB (FOR AXLE)

main90942-02103iASC10,AVC10,GSC10202301

42601CNUT, HUB (FOR AXLE)

main90942-01033iAVC10,GSC10201409-202301

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90942-05009iGSC10201409-201810

5 parts on this diagram · 4 diagrams in section
