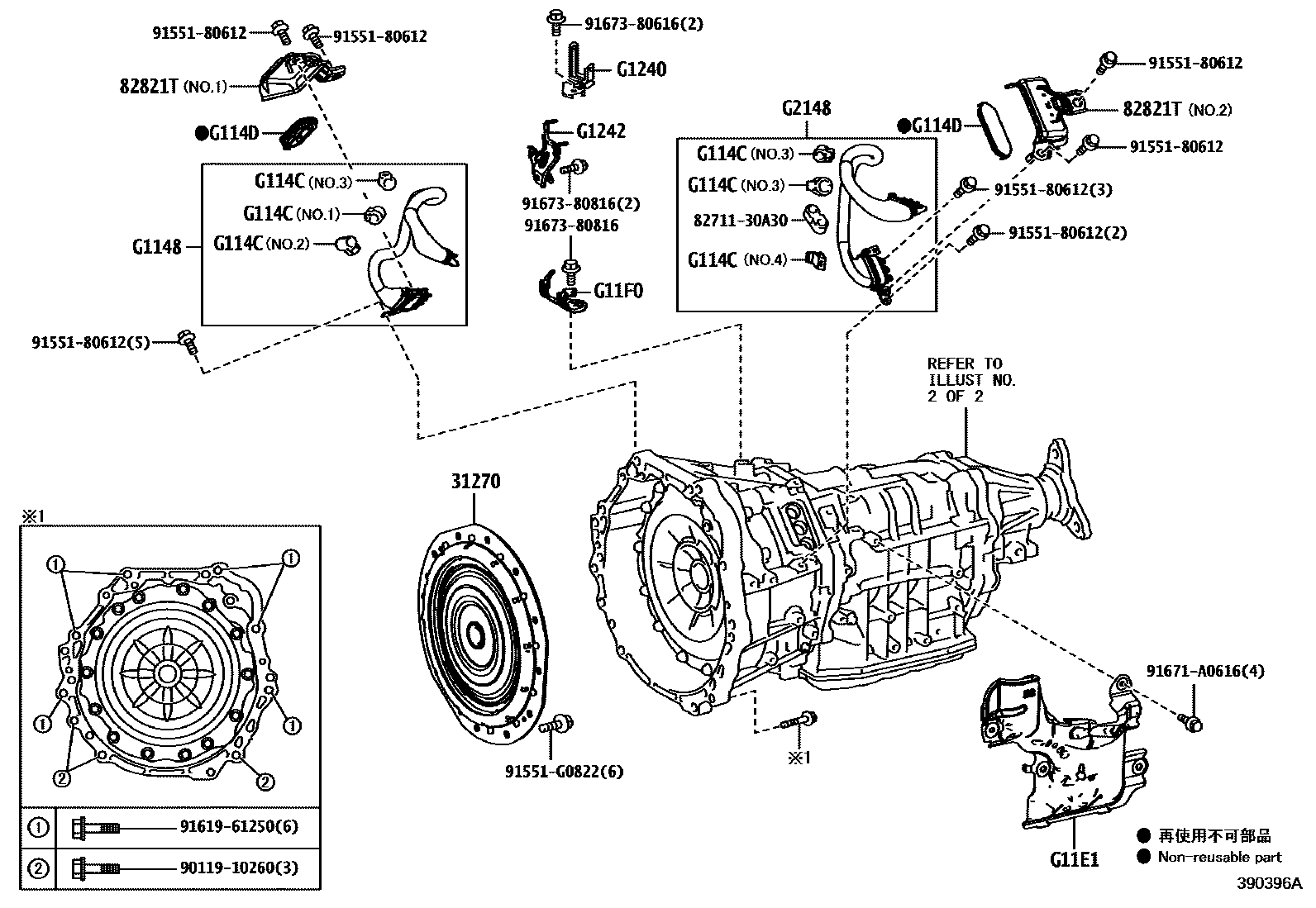

TRANSAXLE ASSY(HEV OR BEV OR FCEV)

0001 1 0002 1

31270DAMPER ASSY, TRANSMISSION INPUT

main31270-30010iAVC10201409-201810

82821TCOVER, CONNECTOR

main82821-30A40iAVC10201409-201810

main82821-30A50iAVC10201409-201810

G1148CABLE, MOTOR

mainG114830070iAVC10201409-201810

G114CPROTECTOR, MOTOR CABLE

mainG114C53020iAVC10201409-201810

mainG114C53030iAVC10201409-201810

mainG114C53040iAVC10201409-201810

mainG114C53050iAVC10201409-201810

G114DCAP, MOTOR CABLE TERMINAL

mainG114D30010iAVC10201409-201810

G11E1INSULATOR, MOTOR HEAT

mainG11E130010iAVC10201409-201810

G11F0COVER ASSY, TRANSAXLE UPPER

mainG11F030010iAVC10201409-201810

G1240BRACKET ASSY, INVERTER MOTOR CABLE

mainG124030080iAVC10201409-201810

G1242BRACKET, ENGINE MOTOR CABLE CLAMP

mainG124230160iAVC10201409-201810

G2148CABLE, GENERATOR

mainG214830070iAVC10201409-201810

8271130A30WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-30A30

9011910260

main90119-10260

9155180612

main91551-80612

91551G0822

main91551-G0822

9161961250

main91619-61250

91671A0616

main91671-A0616

9167380616

main91673-80616

9167380816

main91673-80816

18 parts on this diagram · 2 diagrams in section
