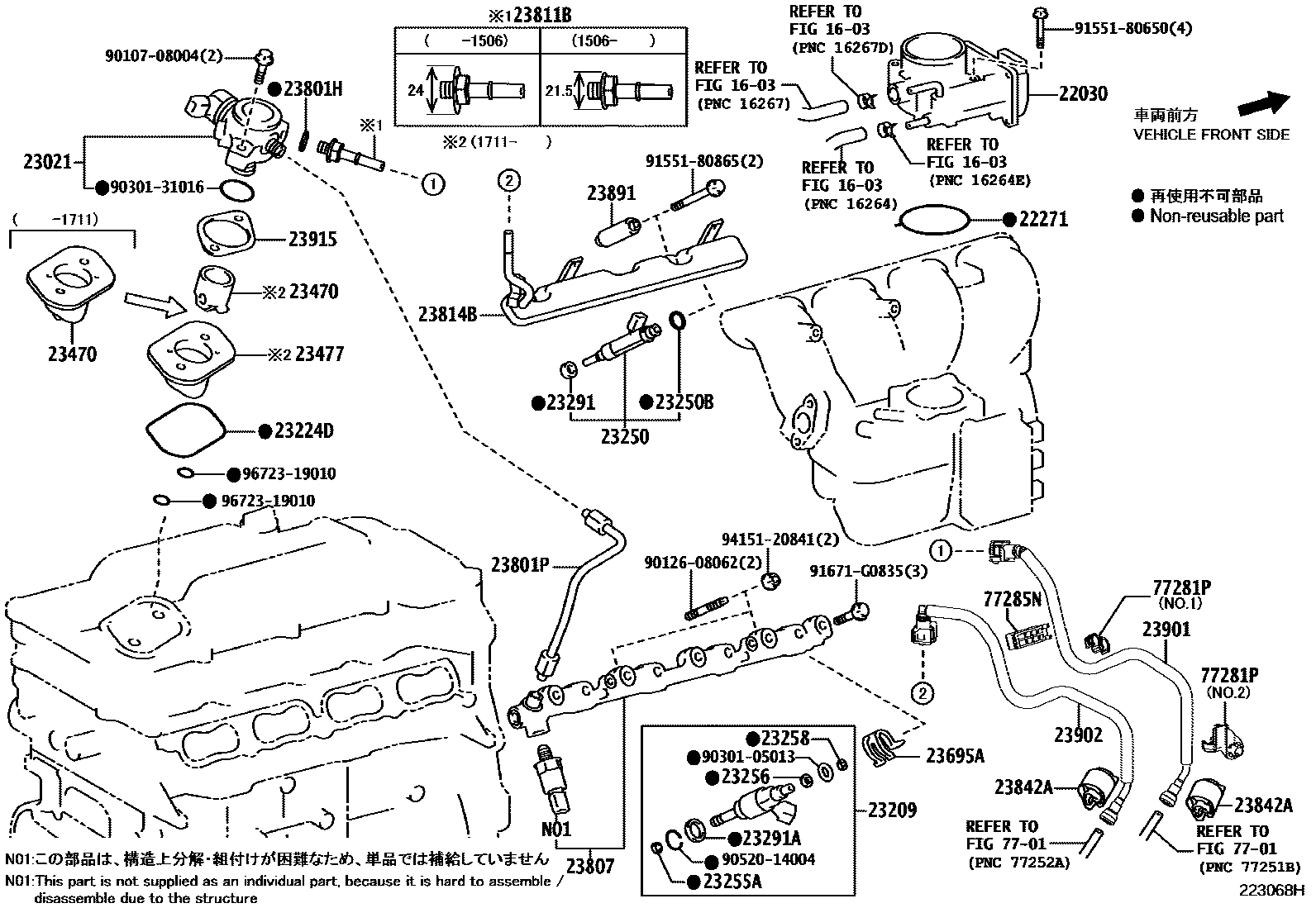

FUEL INJECTION SYSTEM
1603RADIATOR & WATER OUTLET
22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR
22271GASKET, THROTTLE BODY
23021PUMP SUB-ASSY, FUEL W/SEAL
23209INJECTOR SET, FUEL
23224DGASKET, FUEL PUMP SPACER
23250INJECTOR ASSY, FUEL
23250BRING, O(FOR FUEL INJECTOR)
23255ASEAL, FUEL INJECTOR
23256RING, FUEL INJECTOR BACK-UP, NO.1
23258RING, FUEL INJECTOR BACK-UP, NO.3
23291INSULATOR, INJECTOR VIBRATION
23291AINSULATOR, INJECTOR VIBRATION
23470LIFTER ASSY, FUEL PUMP
23477GUIDE, FUEL PUMP LIFTER
23695ACLAMP, NOZZLE HOLDER
23801HGASKET(FOR FUEL PIPE)
23801PPIPE SUB-ASSY, FUEL, NO.1
23807PIPE SUB-ASSY, FUEL DELIVERY
23811BPIPE, FUEL, NO.1
23814BPIPE, FUEL DELIVERY
23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)
23891SPACER, FUEL DELIVERY
23901TUBE SUB-ASSY, FUEL
23902TUBE SUB-ASSY, FUEL
23915INSULATOR, FUEL PUMP
7701FUEL TANK & TUBE
77281PCLAMP, FUEL HOSE
77285NCLAMP, FUEL TUBE, NO.1
9010708004
main90107-08004
9012608062
main90126-08062
9030105013
main90301-05013
9030131016
main90301-31016
9052014004
main90520-14004
9155180650
main91551-80650
9155180865
main91551-80865
91671G0835
main91671-G0835
9415120841
main94151-20841
9672319010
main96723-19010
39 parts on this diagram · 6 diagrams in section
