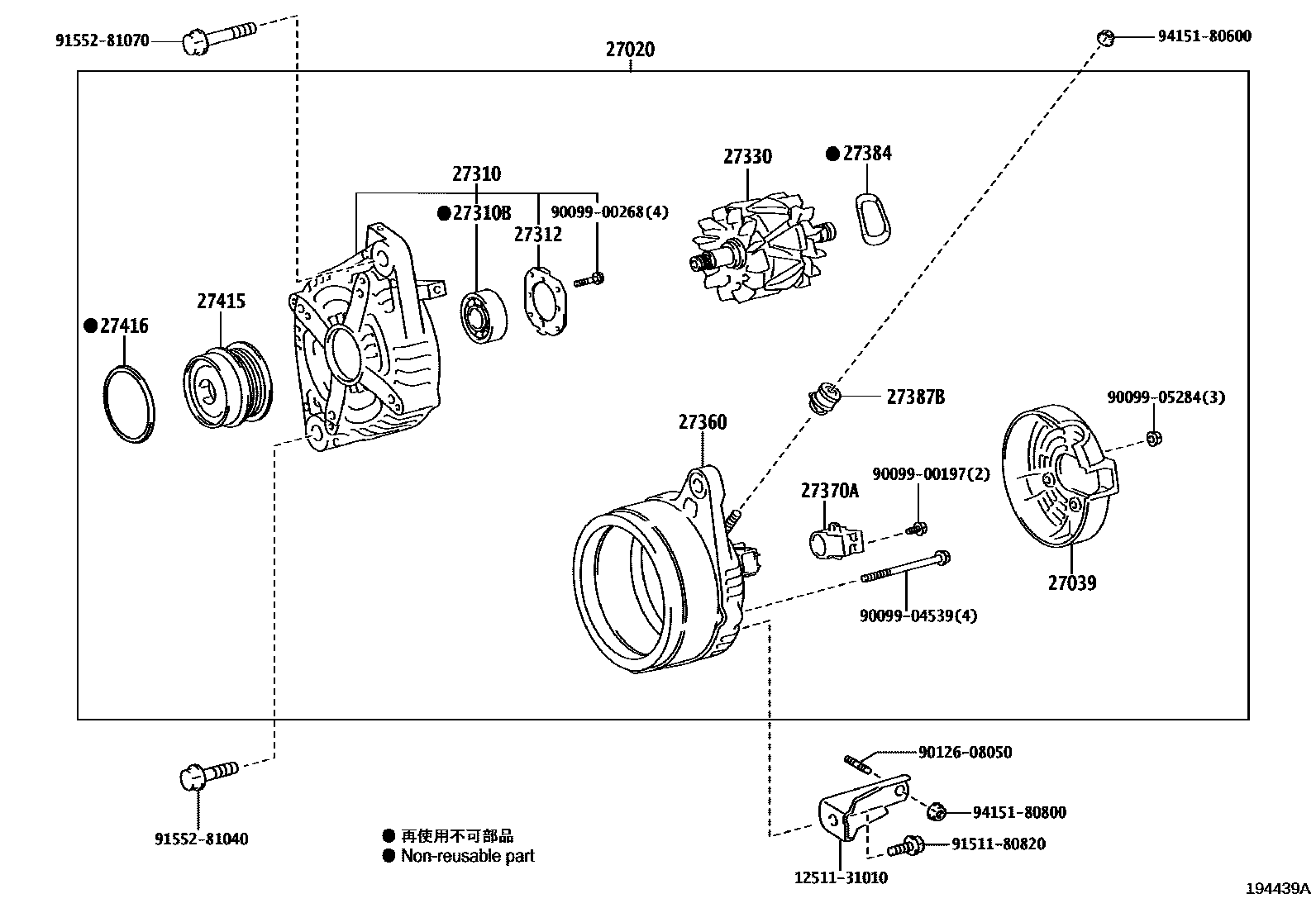

ALTERNATOR

0001 112V 150A 0002 112V 180A 0003 112V 150A

27020ALTERNATOR ASSY

main27060-31300i2GRF..GSC10201711-201810

main27060-31350i2GRF..GSC10201510-201711

main27060-36130i8ARFTS..ASC10201510-201810

27039COVER, ALTERNATOR REAR END

main27039-31390i2GRF..GSC10201510-201711

main27039-31570i2GRF..GSC10201711-201810

main27039-38150i8ARFTS..ASC10201510-201810

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-31220i2GRF..GSC10201409-201510

main27310-31570i2GRF..GSC10201711-201810

main27310-36210i8ARFTS..ASC10201510-201810

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90099-10223i2GRF..GSC10201810

main90099-10226i8ARFTS..ASC10201510-201810

27312PLATE, RETAINER

main27312-42010i8ARFTS..ASC10201810

main27312-72100i2GRF..GSC10201409-201510

27330ROTOR ASSY, ALTERNATOR

main27330-38140i8ARFTS..ASC10201810

main27330-58460i2GRF..GSC10201810

27360COIL ASSY, ALTERNATOR

main27360-31500i2GRF..GSC10201409-201510

main27360-31570i2GRF..GSC10201810

main27360-36210i8ARFTS..ASC10201810

27370AHOLDER ASSY, ALTERNATOR BRUSH

main27370-27060i8ARFTS..ASC10201810

main27370-31220i2GRF..GSC10201409-201510

27384WASHER

main27384-38130i8ARFTS..ASC10201810

main27384-50030i2GRF..GSC10201810

27387INSULATOR, TERMINAL

main27387-38130i8ARFTS..ASC10201810

27387BINSULATOR, ALTERNATOR TERMINAL

main27387-20130i2GRF..GSC10201409-201510

main27387-31580i2GRF..GSC10201711-201810

27415PULLEY, ALTERNATOR W/CLUTCH

main27415-0P020i2GRF..GSC10201810

main27415-0W131i2GRF..GSC10201510-201711

main27415-0W230i8ARFTS..ASC10201510-201810

27416CAP, ALTERNATOR PULLEY

main27416-0W050i2GRF..GSC10201409-201510

1251131010BRACKET, ALTERNATOR, NO.1

main12511-31010

9009900197

main90099-00197

9009900268

main90099-00268

9009904539

main90099-04539

9009905284

main90099-05284

9012608050

main90126-08050

9151180820

main91511-80820

9155281040

main91552-81040

9155281070

main91552-81070

9415180600

main94151-80600

9415180800

main94151-80800

24 parts on this diagram · 3 diagrams in section
