IGNITION COIL & SPARK PLUG / GLOW PLUG

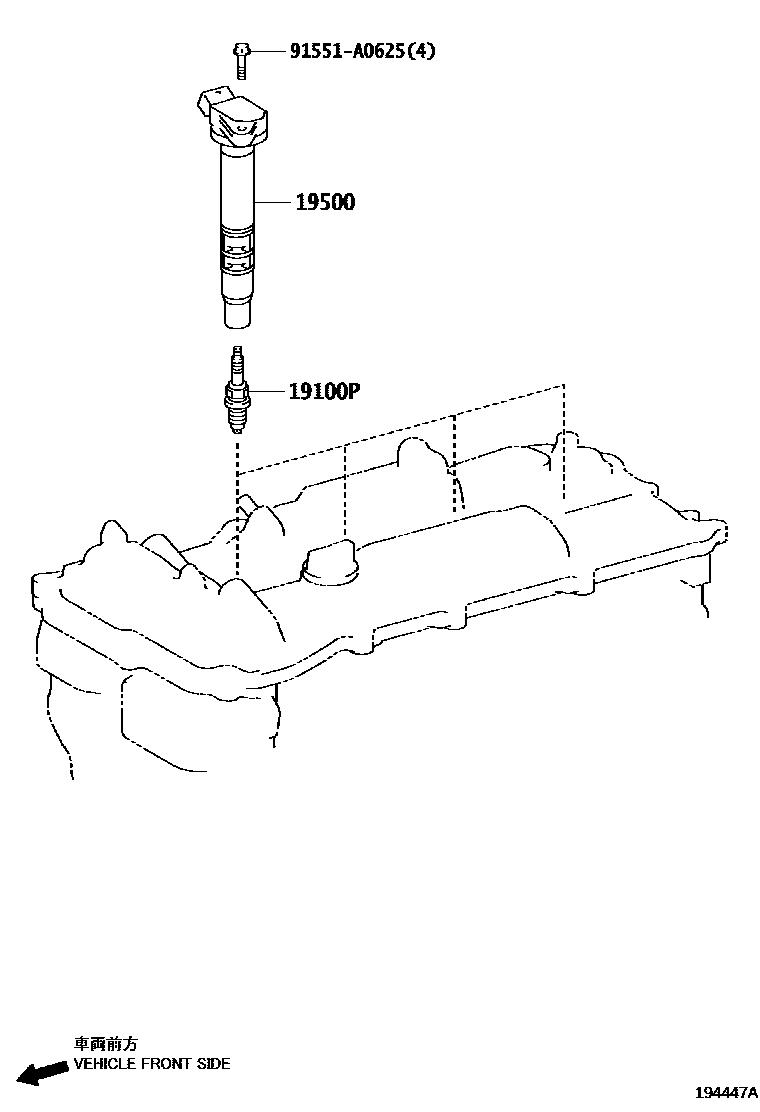

Parts diagram

19100PPLUG, SPARK

main90919-01249i201409-201711

main90919-01263i201409-201810

main90919-01276i201510-201810

19500COIL ASSY, IGNITION

main90919-02256i201409-201604

main90919-02256i201510-201810

main90919-02269i201510-201810

main90919-02273i201711-201810

main90919-02273i201510-201711

91551A0625

main91551-A0625

3 parts on this diagram · 3 diagrams in section
