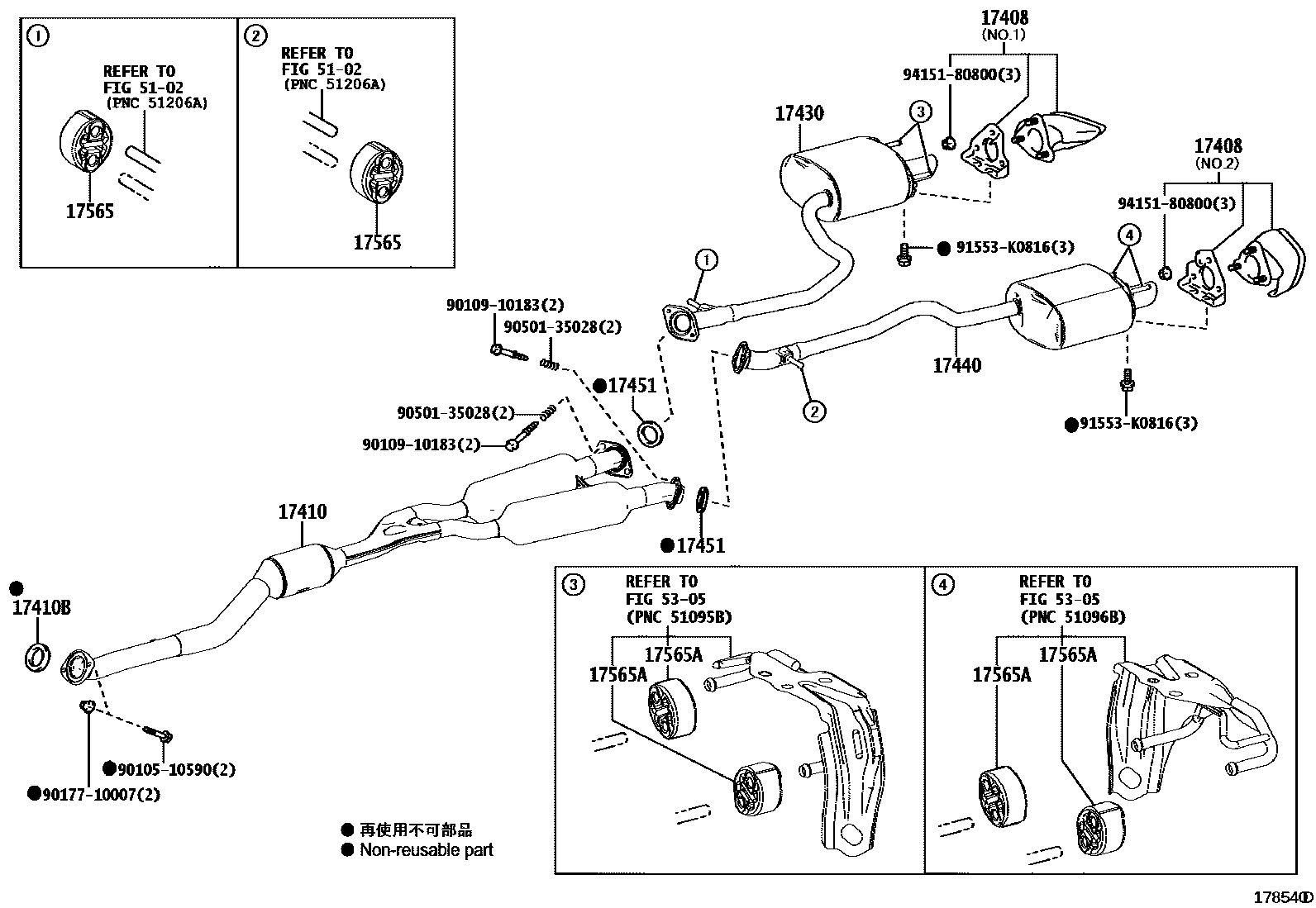

EXHAUST PIPE

0001 1 0002 1 0003 1

17408BAFFLE SUB ASSY, EXHAUST TAILPIPE

main17408-31110i2ARFSE,2GRF..AVC10,GSC10¥11,500201409-201810

main17408-31120i2ARFSE,2GRF..AVC10,GSC10¥11,500201409-201810

17410PIPE ASSY, EXHAUST, FRONT

main17410-31B80i2GRF..GSC10¥152,000201409-201711

main17410-31M40i2GRF..GSC10¥114,000201711-201810

main17410-36340i8ARFTS..ASC10¥50,300201510-201810

main17410-36450i2ARFSE..AVC10¥91,800201409-201810

17410BGASKET, EXHAUST PIPE

main90917-06078i2ARFSE..AVC10¥340201409-201810

main90917-06090i8ARFTS..ASC10¥590201510-201810

17430PIPE ASSY, EXHAUST, TAIL

main17430-31D50i2GRF..GSC10¥23,800201409-201810

main17430-36230i8ARFTS..ASC10¥23,800201510-201810

main17430-36360i2ARFSE..AVC10¥23,800201409-201810

17440PIPE, EXHAUST TAIL, LH

main17440-31210i2GRF..GSC10¥29,200201409-201810

main17440-36050i2ARFSE..AVC10¥29,200201409-201810

main17440-36110i8ARFTS..ASC10¥29,200201510-201810

17451GASKET, EXHAUST PIPE

main17451-28032i2ARFSE,2GRF..AVC10,GSC10¥1,360201409-201810

17565SUPPORT, EXHAUST PIPE, NO.5

main17565-28010i2ARFSE,2GRF..AVC10,GSC10¥670201409-201810

17565ASUPPORT, EXHAUST PIPE, NO.4

main17565-22040i2ARFSE,2GRF..AVC10,GSC10¥670201409-201810

5102

5305

9010510590

main90105-10590¥100

9010910183

main90109-10183¥190

9017710007

main90177-10007¥100

9050135028

main90501-35028¥550

91553K0816

main91553-K0816¥60

9415180800

main94151-80800¥80

16 parts on this diagram · 3 diagrams in section
