MANIFOLD

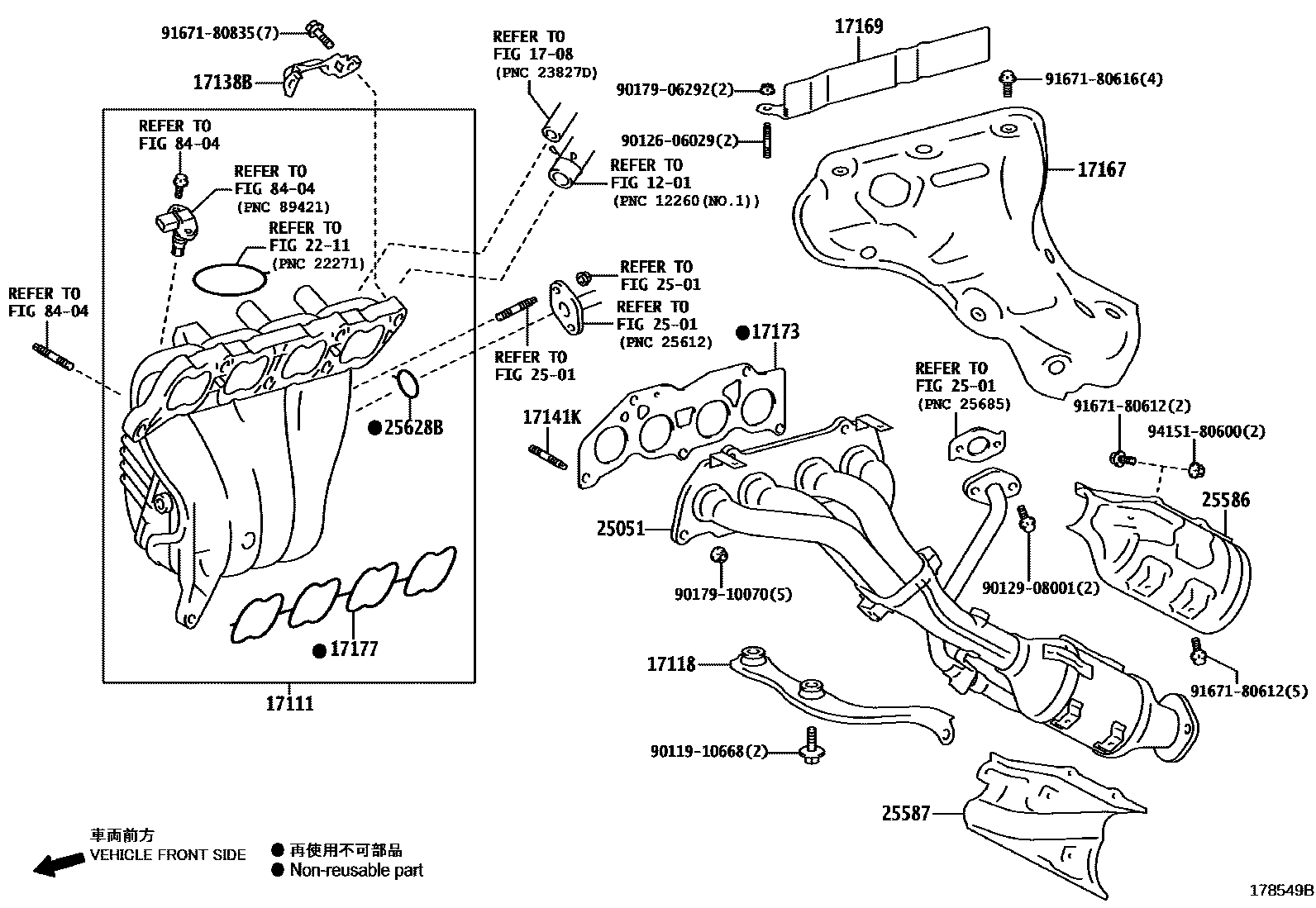

Parts diagram

1201

1708

17111MANIFOLD, INTAKE

main17101-36082i201810

main17111-31171i201510-201711

main17111-31250i201711-201810

main17120-36081i201510-201810

17118STAY, MANIFOLD

main17118-36030i201810

main17118-36080i201510-201810

17138BSTAY, INTAKE MANIFOLD

main17138-36010i201409-201510

17141KBOLT, STUD(FOR EXHAUST MANIFOLD TO CYLINDER HEAD)

main90126-10015×5i201510-201810

main90126-10045×4i201810

17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1

main17167-31120i201711-201810

main17167-31160i201810

main17167-36020i201810

main17167-36060i201510-201512

main17167-36061i201601-201810

17169INSULATOR, EXHAUST MANIFOLD HEAT, NO.3

main17169-36010i201409-201510

17173GASKET, EXHAUST MANIFOLD TO HEAD

main17173-31020i201510-201711

main17173-31070i201711-201810

main17173-36030i201510-201810

main17173-36040i201810

17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1

main17171-36030i201409-201510

main17171-36040×2i201510-201810

main17177-31061×2i201409-201510

main17177-31070×2i201711-201810

2211

2501

25051CONVERTER SUB-ASSY, EXHAUST MANIFOLD

main25051-36170i201510-201810

main25051-36230i201810

25586INSULATOR, MANIFOLD CONVERTER, NO.1

main25586-36040i201810

25587INSULATOR, MANIFOLD CONVERTER, NO.2

main25587-36010i201409-201510

25628BGASKET, EGR INLET

main25628-36020i201409-201510

8404

9011910668

main90119-10668

9012606029

main90126-06029

9012908001

main90129-08001

9017906292

main90179-06292

9017910070

main90179-10070

9167180612

main91671-80612

9167180616

main91671-80616

9167180835

main91671-80835

9415180600

main94151-80600

26 parts on this diagram · 6 diagrams in section
