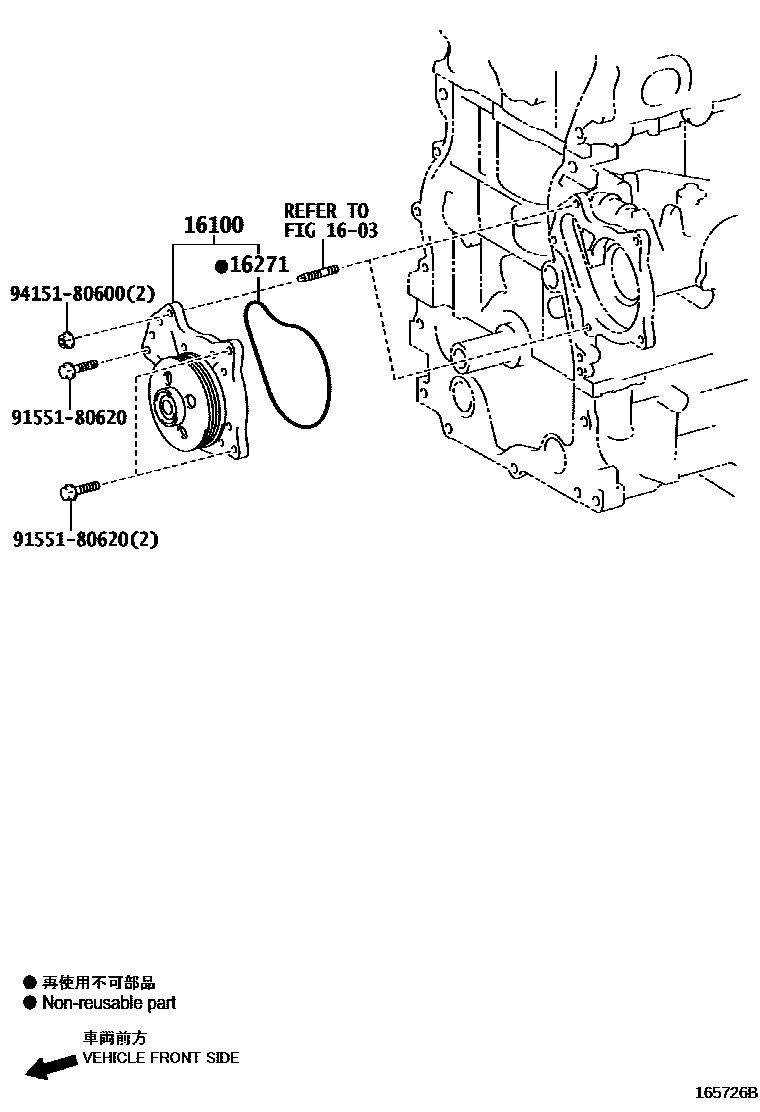

WATER PUMP

0001 1 0002 1 0003 1 0004 1

1603

16100PUMP ASSY, ENGINE WATER

main16100-39436i2GRF..GSC10¥13,400201409-201711

main16100-39575i2ARFSE..AVC10¥9,000201409-201810

main16100-39595i8ARFTS..ASC10¥9,500201510-201810

main16100-39615i2GRF..GSC10¥9,500201711-202004

sub16100-39616¥9,500

main16100-39616i2GRF..GSC10¥9,500202004

16271GASKET, WATER PUMP

main16271-31020i2GRF..GSC10¥2,320201409-201711

main16271-31050i2GRF..GSC10¥1,740201711-201810

main16271-36030i2ARFSE..AVC10¥200201409-201810

main16271-36040i8ARFTS..ASC10¥340201510-201810

9155180620

main91551-80620¥60

9415180600

main94151-80600¥60

5 parts on this diagram · 4 diagrams in section
