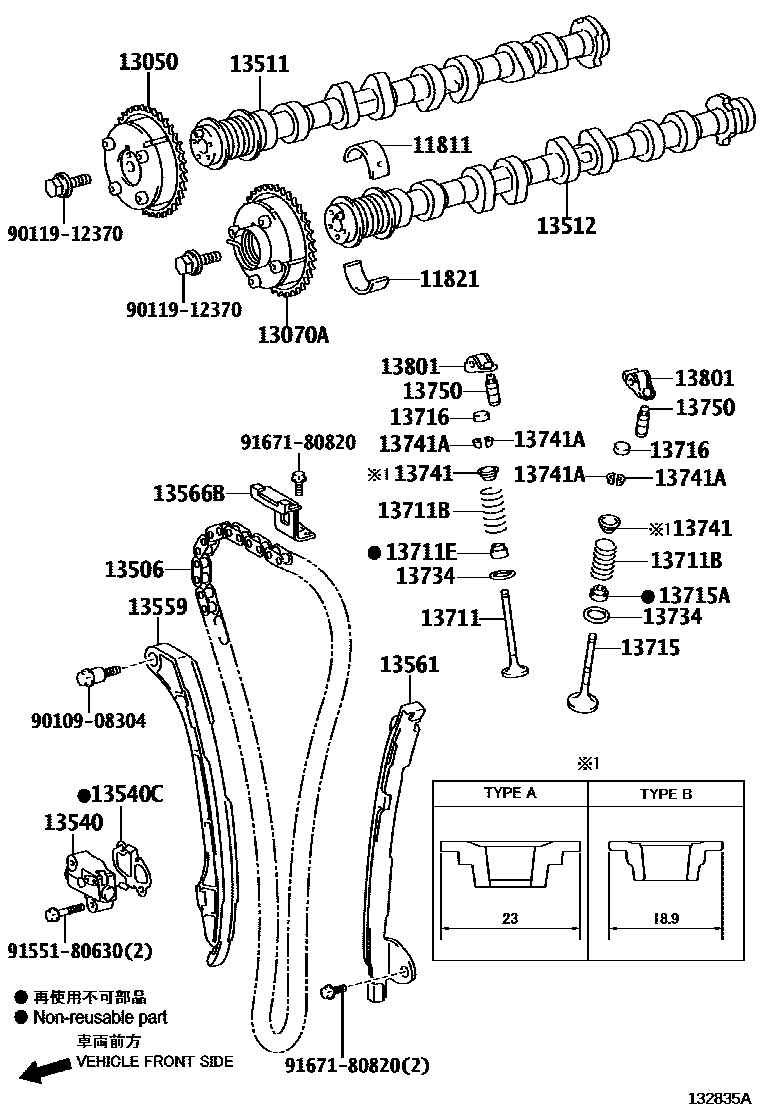

CAMSHAFT & VALVE
11811BEARING, CAMSHAFT, NO.1
11821BEARING, CAMSHAFT, NO.2
13050GEAR ASSY, CAMSHAFT TIMING
13070GEAR ASSY, CAMSHAFT TIMING EXHAUST, RH
13070AGEAR ASSY, CAMSHAFT TIMING EXHAUST
13506CHAIN SUB-ASSY
13512CAMSHAFT, NO.2
13540CGASKET(FOR CHAIN TENSIONER)
13559SLIPPER, CHAIN TENSIONER
13561DAMPER, CHAIN VIBRATION, NO.1
13566BGUIDE, TIMING CHAIN
13711VALVE, INTAKE
13711BSPRING, COMPRESSION(FOR INNER)
13711ESEAL, INTAKE VALVE STEM OIL
13715VALVE, EXHAUST
13715ASEAL, EXHAUST VALVE STEM OIL
13716CAP, VALVE STEM
13734SEAT, VALVE SPRING
13741RETAINER, VALVE SPRING
13741ALOCK, VALVE SPRING RETAINER
13750ADJUSTER ASSY, VALVE LASH
13801ARM SUB-ASSY, VALVE ROCKER, NO.1
9010908304
main90109-08304
9011912370
main90119-12370
9155180630
main91551-80630
9167180820
main91671-80820
28 parts on this diagram · 4 diagrams in section
