FRONT SEAT & SEAT TRACK

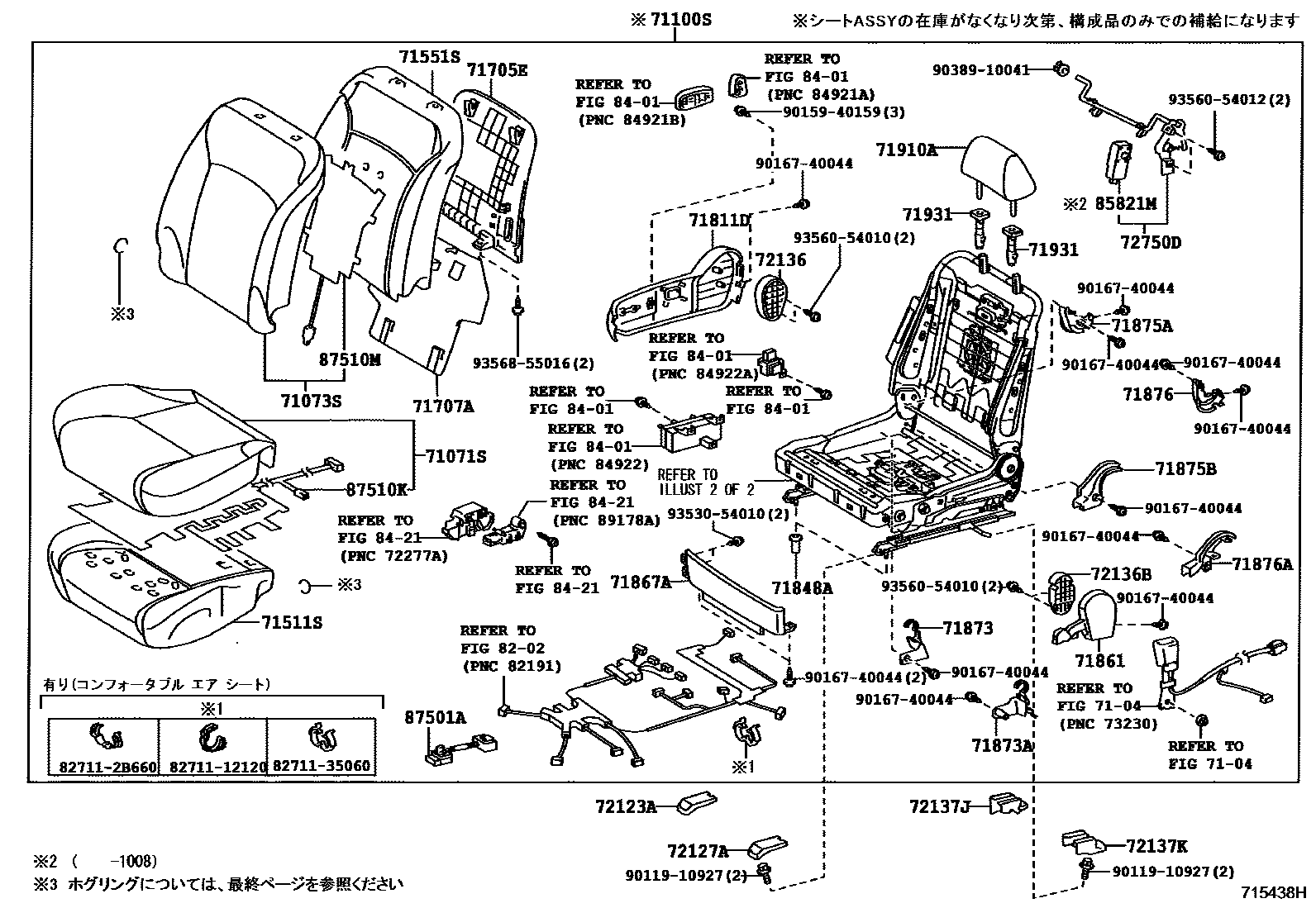

Parts diagram
7104
71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71071-53260-A0i200712-200808
WHITE,TRIM2#
main71071-53260-D0i200808-201008
TERRA COTTA,TRIM22
main71071-53A11-C2i201108-201408
BLACK,TRIM2#
main71071-53390-C2i200712-201008
main71071-53400-C1i200712-200908
main71071-53790-C1i201309-201408
main71071-53A20-A1i201008-201107
main71071-53A20-C1i201008-201107
main71071-53A21-A2i201108-201309
main71071-53A21-D3i201108-201309
main71071-53A30-C1supersedes 71071-53A10-C1i201008-201107
main71071-53A31-C2i201108-201309
main71071-53A32-C2i201309-201408
71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71073-53470-A0i200712-200808
WHITE,TRIM2#
main71073-53470-D0i200808-201008
TERRA COTTA,TRIM22
main71073-53870-C2i201008-201408
BLACK,TRIM2#
main71073-53430-C1i200712-201008
main71073-53490-C0i200712-200908
main71073-53880-A2i201008-201309
main71073-53880-C1i201008-201108
main71073-53880-D1i201108-201309
main71073-53890-C1i201008-201309
main71073-53891-C1i201309-201408
main71073-53F10-C1i201309-201408
71100SSEAT ASSY, FRONT RH
main71100-53C61-C0i200808-200908
WHITE,TRIM20
main71100-53C61-C1i200808-200908
TERRA COTTA,TRIM22
main71100-53C62-C0i200908-201008
WHITE,TRIM20
sub71010-53P20
main71100-53C62-C1i200908-201008
TERRA COTTA,TRIM22
sub71010-53P20
main71010-53J10-C1supersedes 71100-53U52-C0i201309-201408
main71100-53A20-C3supersedes 71100-53C60-C0i200712-200808
sub71100-53A22
main71100-53A21-C3i200808-200908
sub71010-53N70
main71100-53A60-C4supersedes 71100-53C60-C0i200712-200808
sub71100-53A64
main71100-53A61-C3i200808-200908
main71100-53A62-C3i200908-201008
sub71010-53P10
main71100-53M90-D0i200903-200907
sub71100-53M91
main71100-53U80-C4i201008-201108
sub71100-53U83
main71100-53U80-C5i201008-201108
sub71100-53U83
main71100-53U81-C2i201108-201308
sub71100-53U84
main71100-53U81-C3i201108-201308
sub71100-53U84
main71100-53U82-C0i201308-201408
main71100-53V10-C1supersedes 71100-53U50-C2i201008-201108
main71100-53V11-C1supersedes 71100-53U51-C1i201108-201309
sub71010-53J30
main71100-53V12-C0supersedes 71100-53U52-C0i201309-201408
71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71511-53200i200712-201008
main71511-53230i201008
main71511-53110i200712-200908
71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71551-53140i200712-200907
main71551-53141i200908-201008
main71551-53180i201008
main71551-53100i200712-200908
71705EBOARD SUB-ASSY, FRONT SEATBACK
main71705-53031-C0×2i200712-201408
BLACK,TRIM2#
71707ACOVER SUB-ASSY, FRONT SEATBACK BOARD
main71707-53010-C0×2i200712-201008
BLACK,TRIM2#
sub71707-53011
main71707-53030-C0×2i201008-201303
BLACK,TRIM2#
sub71707-53031
main71707-53040-C0×2i201304-201408
BLACK,TRIM2#
71811DSHIELD, FRONT SEAT CUSHION, RH
main71811-53080-C0i200712-201408
BLACK,TRIM2#
71848ACAP, SEAT ADJUSTER COVER, RH
main71848-33010×2i200712-201312
main71848-76010×2i201401
71861SHIELD, FRONT SEAT CUSHION, INNER RH
main71861-53060-C0i200712-201408
BLACK,TRIM2#
71867ASHIELD, FRONT SEAT CUSHION, INNER NO.1 RH
main71867-53010-C0i200712-201408
BLACK,TRIM2#
71873SHIELD, FRONT SEAT CUSHION, LOWER RH
main71873-30060i200712
71873ASHIELD, FRONT SEAT CUSHION, LOWER
main71873-30070i200712
71875ACOVER, RECLINING ADJUSTER INSIDE, RH
main71875-58050i200712
71875BCOVER, RECLINING ADJUSTER INSIDE, RH
main71875-30170-C0i200712-201408
BLACK,TRIM2#
71876COVER, RECLINING ADJUSTER INSIDE, LH
main71876-58050i200712
71876ACOVER, RECLINING ADJUSTER INSIDE, LH
main71875-60150-C0i200712-201408
BLACK,TRIM2#
71910AHEADREST ASSY, FRONT SEAT
main71910-53110-A4×2i200908-201008
WHITE,TRIM20
sub71910-53111
sub71910-53700
main71910-53110-C4×2i200908-201008
BLACK,TRIM21,22
sub71910-53111
sub71910-53700
main71910-53190-A0×2i200712-200908
WHITE,TRIM20
main71910-53190-C0×2i200712-200908
BLACK,TRIM21,22
main71910-53600-C0×2i201309-201408
BLACK/BLUE,TRIM2#
main71910-53260-C0×2i200903-200907
main71910-53330-A4×2i201008-201108
sub71910-53332
main71910-53330-D1×2i201108-201308
sub71910-53332
main71910-53350-C1×2supersedes 71910-53330-C6i201008-201309
sub71910-53610
main71910-53600-A0×2i201308-201408
71931SUPPORT, FRONT SEAT HEADREST
main71930-52030-C0×2i200712-201408
main71931-42020-C0×2i200712-201408
72123ACOVER, SEAT TRACK BRACKET, OUTER FRONT RH
main72123-53040-C0i200712-201408
BLACK,TRIM2#
72127ACOVER, SEAT TRACK BRACKET, INNER FRONT RH
main72123-53040-C0i200712-201408
BLACK,TRIM2#
72136SPACER, SEAT TRACK, LOWER NO.1
main72136-30050i200712-201104
main72136-53060i201105
72136BSPACER, SEAT TRACK, LOWER NO.3
main72136-53020×2i200712
72137JCOVER, FRONT SEAT TRACK, RH REAR OUTER
main72137-53040-C0i200712-201408
BLACK,TRIM2#
72137KCOVER, FRONT SEAT TRACK, RH REAR INNER
main72157-53060-C0i200712-201408
BLACK,TRIM2#
72750DADJUSTER ASSY, LUMBAR SUPPORT, RH
main72750-30260i200712
8202
8401
8421
85821MMOTOR ASSY, POWER SEAT LUMBER SUPPORT, RH
main85820-60170i200712-201008
87501ACONTROL SUB-ASSY, SEAT HEATER, RH
main87501-60010i200712-201202
main87501-60060i201203-201408
sub87501-48020
87510KHEATER ASSY, FRONT SEAT CUSHION, RH
main87510-53130i200712-201008
main87510-53150i201008
main87510-53121i200712-200908
87510MHEATER ASSY, FRONT SEATBACK, RH
main87530-53020i200712
main87530-53011i200712-200908
8271112120WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-12120
827112B660WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-2B660
8271135060WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-35060
9011910927
main90119-10927
9015940159
main90159-40159
9016740044
main90167-40044
9038910041
main90389-10041
9353054010
main93530-54010
9356054010
main93560-54010
9356054012
main93560-54012
9356855016
main93568-55016

45 parts on this diagram · 4 diagrams in section
