LOCK CYLINDER SET

69503CYLINDER SET, LOCK

main69005-53300iUSE20¥21,300200712-201208

sub69005-53340¥25,000

main69005-53340iUSE20¥25,000201208

69503BKEY, CUT

main69515-50240iUSE20¥7,800200712-201408

�}�X�^�[�L�[

69503DKEY, CUT(CARD KEY)

main69515-30330iUSE20¥7,100201208

�}�X�^�[�L�[

69510CYLINDER ASSY, FRONT DOOR LOCK, RH

main69510-50100iUSE20¥16,700200712

69550ACYLINDER ASSY, GLOVE COMPARTMENT DOOR LOCK

main69550-50040iUSE20¥10,000200712

69560ACYLINDER ASSY, LUGGAGE COMPARTMENT DOOR LOCK

main69560-53050iUSE20¥10,000200712

8424

89072AHOUSING SET, DOOR CONTROL TRANSMITTER

main89072-53381iUSE20¥7,700200712-200808

main89072-53381iUSE20¥7,700200808

89745ABATTERY, TRANSMITTER

main89745-52020iUSE20¥440200712

89745BBATTERY, TRANSMITTER(CARD KEY)

main89745-50030iUSE20¥820201208

89904BTRANSMITTER SUB-ASSY, ELECTRICAL KEY

main89904-53051iUSE20¥29,800200712-200808

sub89904-53052¥29,800

main89904-53180iUSE20¥29,800200808-201106

sub89904-53450¥29,800

main89904-53450iUSE20¥29,800201107

89904CTRANSMITTER SUB-ASSY, ELECTRICAL KEY(CARD KEY)

main89904-53460iUSE20¥47,800201208

9017906274

main90179-06274¥70

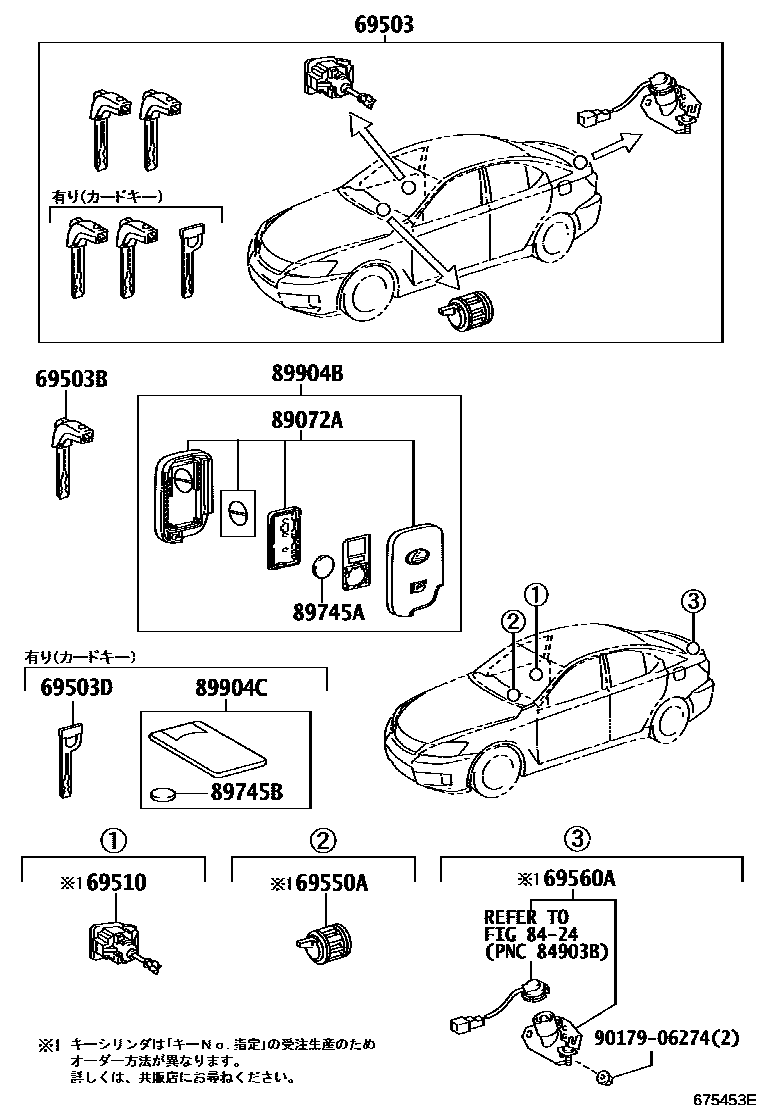

13 parts on this diagram · 1 diagram in section
