STANDARD TOOL

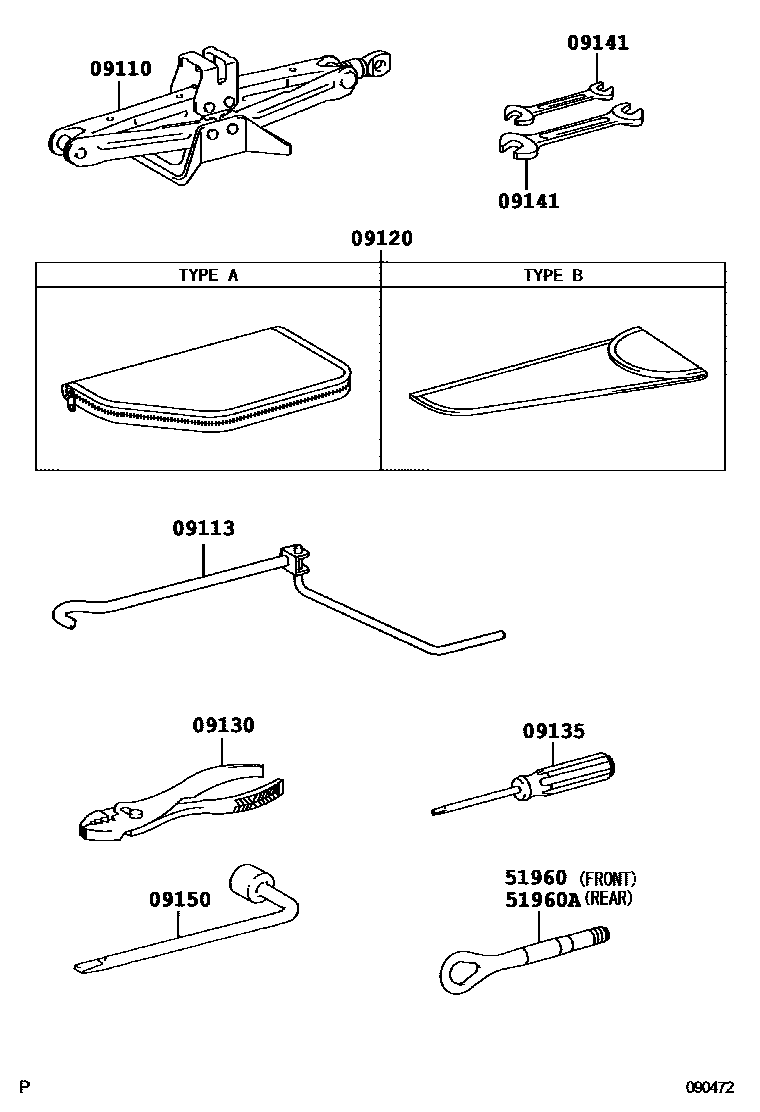

Parts diagram
09110JACK ASSY
main09111-33030i201011
sub09111-76010
main09111-50051i200712-201010
sub09111-76011
09113HANDLE, JACK
main09113-44010i200712
09120BAG, TOOL
main09120-28020i200712
main09120-53010i200712
09130PLIERS
main09130-50030i200712-200908
main09130-50040i200908
09135DRIVER, SCREW
main09135-50040i200712-200908
main99915-10700i200908
09141SPANNER
main09141-50050i200712-200908
main09141-50060i200712-200908
main09141-60010i200908
main09141-60020i200908
09150WRENCH, HUB NUT BOX
main09150-50010i200712-200908
main09150-53010i200908-201205
main09150-76020i201206-201408
51960HOOK ASSY, FRONT
main51961-53010i200712-201408
51960AHOOK ASSY, REAR
main51961-53010×2i200712-201408

9 parts on this diagram · 1 diagram in section
