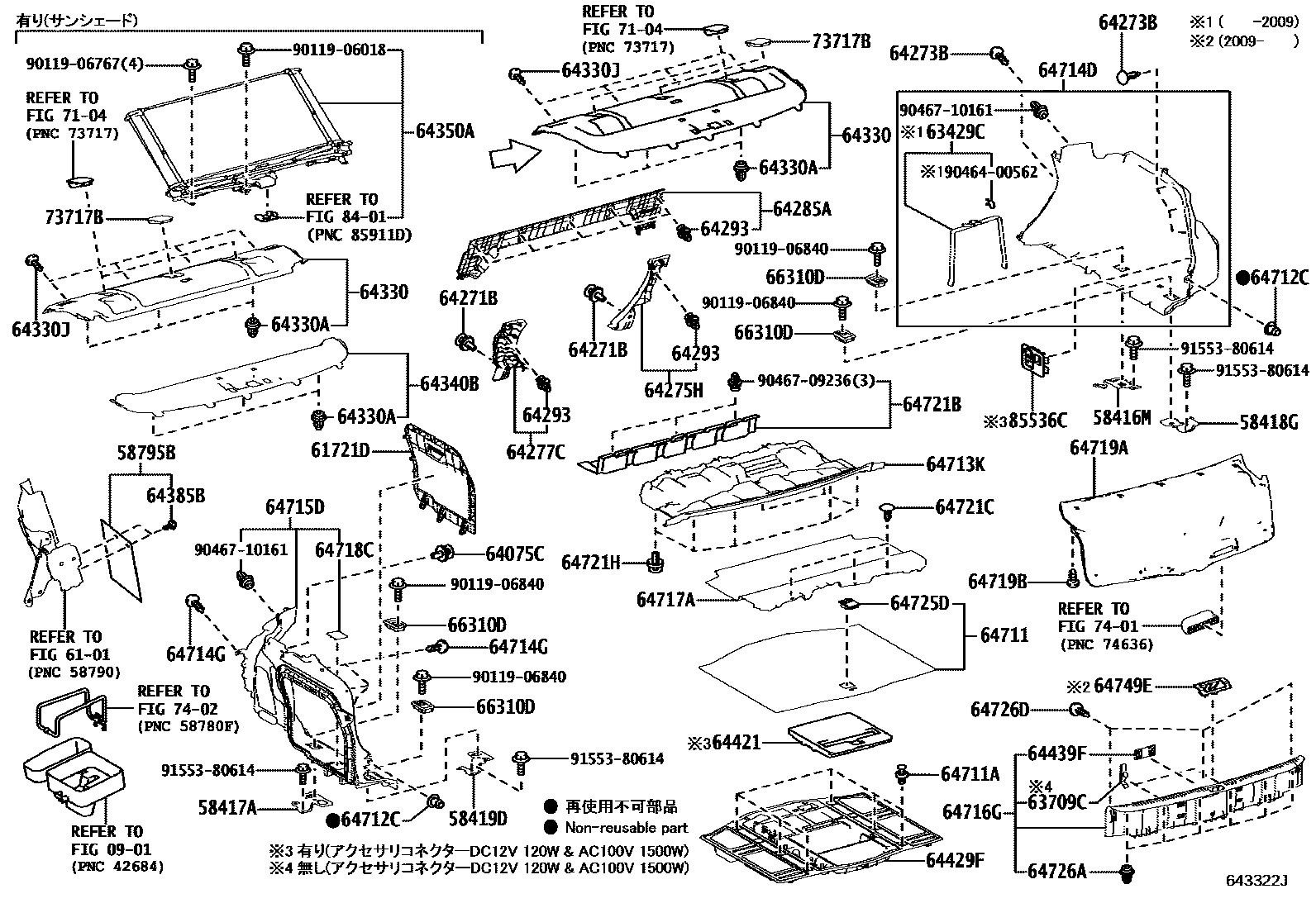

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT
0901
58416MBRACKET, DECK BOARD, NO.1 RH
58417ABRACKET, DECK BOARD, NO.1 LH
58418GBRACKET, DECK BOARD, NO.2
58419DBRACKET, DECK BOARD, NO.3
6101
61721DCOVER, BATTERY SERVICE HOLE, LH
DARK GRAY,TRIM0#,1#,2#,3#,5#
BLACK,TRIM0#,1#,2#,3#,5#
BLACK,TRIM0#,1#,2#,3#,4#,5#,8#,9#
BLACK,TRIM0#,2#,3#,4#,6#,7#
BLACK,TRIM0#,2#,3#,4#,6#,7#,9#
63429CBAND, ROOM RACK
63709CBAND SUB-ASSY, ROOM RACK
BLACK,TRIM0#,1#,2#,3#,5#
64075CCLIP, LUGGAGE COMPARTMENT TRIM COVER
64271BCLIP(FOR ROOM PARTITION BOARD)
64273BCLIP
64275HCOVER, ROOM PARTITION, NO.1
BLACK,TRIM0#,1#,2#,3#,4#,5#,8#,9#
BLACK,TRIM0#,6#,7#
BLACK,TRIM0#,2#,3#,4#,6#,7#
BLACK,TRIM0#,6#,7#,9#
BLACK,TRIM0#,2#,3#,4#,6#,7#,9#
BLACK,TRIM0#,1#,2#,3#,5#
64277CCOVER, ROOM PARTITION, NO.2
BLACK,TRIM0#,1#,2#,3#,5#
BLACK,TRIM0#,1#,2#,3#,4#,5#,8#,9#
BLACK,TRIM0#,6#,7#
BLACK,TRIM0#,2#,3#,4#,6#,7#
BLACK,TRIM0#,6#,7#,9#
BLACK,TRIM0#,2#,3#,4#,6#,7#,9#
64285ACOVER, ROOM PARTITION, NO.3
BLACK,TRIM0#,2#,3#,4#,6#,7#,9#
BLACK,TRIM0#,1#,2#,3#,5#
BLACK,TRIM0#,1#,2#,3#,4#,5#,8#,9#
BLACK,TRIM0#,6#,7#
BLACK,TRIM0#,2#,3#,4#,6#,7#
BLACK,TRIM0#,6#,7#,9#
64293RETAINER, ROOM PARTITION
64330PANEL ASSY, PACKAGE TRAY TRIM
BLACK,TRIM0#,1#,2#,3#,5#
BLACK,TRIM1#,2#,3#,8#,9#
BLACK,TRIM0#,6#,7#
BLACK,TRIM0#,2#,3#,4#,6#,7#
BLACK,TRIM0#,6#,7#,9#
BLACK,TRIM0#,2#,3#,4#,6#,7#,9#
64330ACLIP(FOR PACKAGE TRAY TRIM PANEL)
64330JCLIP(FOR PACKAGE TRAY TRIM PANEL)
64340BPANEL ASSY, PACKAGE TRAY TRIM, NO.2
64350ASHADE ASSY, REAR WINDOW
64421TRAY SUB-ASSY, LUGGAGE COMPARTMENT
main64421-53010
64439FCOVER, LUGGAGE ROOM, REAR
BLACK,TRIM0#,2#,3#,4#,6#,7#,9#
BLACK,TRIM0#,6#,7#
BLACK,TRIM0#,1#,2#,3#,5#
BLACK,TRIM0#,1#,2#,3#,4#,5#,8#,9#
BLACK,TRIM1#,2#,3#,4#,8#,9#
BLACK,TRIM0#,2#,3#,4#,6#,7#
BLACK,TRIM0#,6#,7#,9#
64711MAT, LUGGAGE COMPARTMENT FLOOR
DARK GRAY,TRIM0#,1#,2#,3#,5#
BLACK,TRIM0#,1#,2#,3#,5#
BLACK,TRIM0#,1#,2#,3#,4#,5#,8#,9#
BLACK,TRIM0#,1#,2#,3#,5#
BLACK,TRIM1#,2#,3#,4#,8#,9#
BLACK,TRIM0#,6#,7#,9#
BLACK,TRIM0#,2#,3#,4#,6#,7#
BLACK,TRIM0#,6#,7#
BLACK,TRIM0#,2#,3#,4#,6#,7#,9#
BLACK,TRIM0#,2#,3#,4#,6#,7#,9#
BLACK,TRIM0#,2#,3#,4#,6#,7#
64711ACLIP(FOR LUGGAGE COMPARTMENT FLOOR MAT)
64712CCLIP(FOR LUGGAGE COMPARTMENT TRIM COVER)
64713KCOVER, LUGGAGE COMPARTMENT TRIM, FRONT UPPER
BLACK,TRIM0#,1#,2#,3#,5#
BLACK,TRIM1#,2#,3#,4#,8#,9#
BLACK,TRIM0#,6#,7#
BLACK,TRIM0#,2#,3#,4#,6#,7#
BLACK,TRIM0#,6#,7#,9#
BLACK,TRIM0#,2#,3#,4#,6#,7#,9#
64714DCOVER, LUGGAGE COMPARTMENT TRIM, SIDE, RH
DARK GRAY,TRIM0#,1#,2#,3#,5#
BLACK,TRIM0#,1#,2#,3#,5#
BLACK,TRIM0#,1#,2#,3#,4#,5#,9#
BLACK,TRIM1#,2#,3#,4#,8#,9#
BLACK,TRIM1#,2#,3#,4#,8#,9#
BLACK,TRIM0#,1#,2#,3#,5#
BLACK,TRIM0#,6#,7#
BLACK,TRIM0#,2#,3#,4#,6#,7#
BLACK,TRIM0#,2#,3#,4#,6#,7#,9#
BLACK,TRIM0#,6#,7#,9#
BLACK,TRIM0#,2#,3#,4#,6#,7#
BLACK,TRIM0#,2#,3#,4#,6#,7#,9#
64714GCLIP(FOR LUGGAGE COMPARTMENT TRIM SIDE COVER)
64715DCOVER, LUGGAGE COMPARTMENT TRIM, SIDE, LH
DARK GRAY,TRIM0#,1#,2#,3#,5#
BLACK,TRIM0#,1#,2#,3#,5#
BLACK,TRIM0#,1#,2#,3#,4#,5#,8#,9#
BLACK,TRIM1#,2#,3#,4#,8#,9#
BLACK,TRIM0#,1#,2#,3#,5#
BLACK,TRIM0#,6#,7#
BLACK,TRIM0#,2#,3#,4#,6#,7#,9#
BLACK,TRIM0#,6#,7#,9#
BLACK,TRIM0#,2#,3#,4#,6#,7#
BLACK,TRIM0#,2#,3#,4#,6#,7#,9#
BLACK,TRIM0#,2#,3#,4#,6#,7#
64716GCOVER, LUGGAGE COMPARTMENT TRIM, REAR
BLACK,TRIM0#,6#,7#,9#
BLACK,TRIM0#,2#,3#,4#,6#,7#
BLACK,TRIM0#,6#,7#
BLACK,TRIM0#,2#,3#,4#,6#,7#,9#
BLACK,TRIM0#,2#,3#,4#,6#,7#
BLACK,TRIM0#,2#,3#,4#,6#,7#,9#
64717ACOVER, LUGGAGE COMPARTMENT TRIM, FRONT
DARK GRAY,TRIM0#,1#,2#,3#,5#
BLACK,TRIM0#,1#,2#,3#,5#
BLACK,TRIM0#,1#,2#,3#,4#,5#,8#,9#
BLACK,TRIM0#,2#,3#,4#,6#,7#,9#
BLACK,TRIM0#,2#,3#,4#,6#,7#
BLACK,TRIM1#,2#,3#,4#,8#,9#
BLACK,TRIM0#,1#,2#,3#,5#
BLACK,TRIM0#,6#,7#,9#
BLACK,TRIM0#,2#,3#,4#,6#,7#,9#
BLACK,TRIM0#,6#,7#
BLACK,TRIM0#,2#,3#,4#,6#,7#
64718CCOVER, LUGGAGE TRIM SERVICE HOLE
BLACK,TRIM0#,1#,2#,3#,5#
BLACK,TRIM0#,2#,3#,4#,6#,7#
BLACK,TRIM0#,1#,2#,3#,4#,5#,8#,9#
BLACK,TRIM0#,2#,3#,4#,6#,7#,9#
64719ACOVER, LUGGAGE COMPARTMENT DOOR
BLACK,TRIM0#,1#,2#,3#,5#
BLACK,TRIM1#,2#,3#,4#,8#,9#
BLACK,TRIM0#,6#,7#,9#
BLACK,TRIM0#,2#,3#,4#,6#,7#,9#
BLACK,TRIM0#,6#,7#
BLACK,TRIM0#,2#,3#,4#,6#,7#
64719BCLIP(FOR LUGGAGE COMPARTMENT DOOR)
64721BCOVER, LUGGAGE COMPARTMENT TRIM, NO.1
BLACK,TRIM0#,1#,2#,3#,5#
BLACK,TRIM0#,2#,3#,4#,6#,7#,9#
BLACK,TRIM0#,6#,7#
BLACK,TRIM1#,2#,3#,4#,8#,9#
BLACK,TRIM0#,2#,3#,4#,6#,7#
BLACK,TRIM0#,6#,7#,9#
64721CCLIP(LUGGAGE COMPARTMENT)
64721HCLIP(LUGGAGE COMPARTMENT)
64725DHOOK, LUGGAGE COMPARTMENT TRIM, NO.1
64726ACLIP, LUGGAGE TRIM, REAR
64726DCLIP, LUGGAGE TRIM, REAR
64749ECOVER, LUGGAGE COMPARTMENT DOOR STRIKER
BLACK,TRIM0#,2#,3#,4#,6#,7#
BLACK,TRIM0#,6#,7#
BLACK,TRIM0#,6#,7#,9#
BLACK,TRIM0#,2#,3#,4#,6#,7#,9#
66310DHOOK ASSY, ROPE
7104
73717BCOVER, CHILD RESTRAINT SEAT TETHER ANCHOR
BLACK,TRIM0#,1#,2#,3#,5#
BLACK,TRIM0#,1#,2#,3#,4#,5#,9#
BLACK,TRIM1#,2#,3#,4#,8#,9#
BLACK,TRIM0#,2#,3#,6#,7#
BLACK,TRIM0#,2#,3#,4#,6#,7#
BLACK,TRIM0#,6#,7#,9#
BLACK,TRIM0#,2#,3#,4#,6#,7#,9#
BLACK,TRIM0#,6#,7#
7401
7402
8401
85536CBEZEL, POWER OUTLET SOCKET
9011906018
main90119-06018
9011906767
main90119-06767
9011906840
main90119-06840
9046400562
main90464-00562
9046709236
main90467-09236
9046710161
main90467-10161
9155380614
main91553-80614
59 parts on this diagram · 2 diagrams in section
