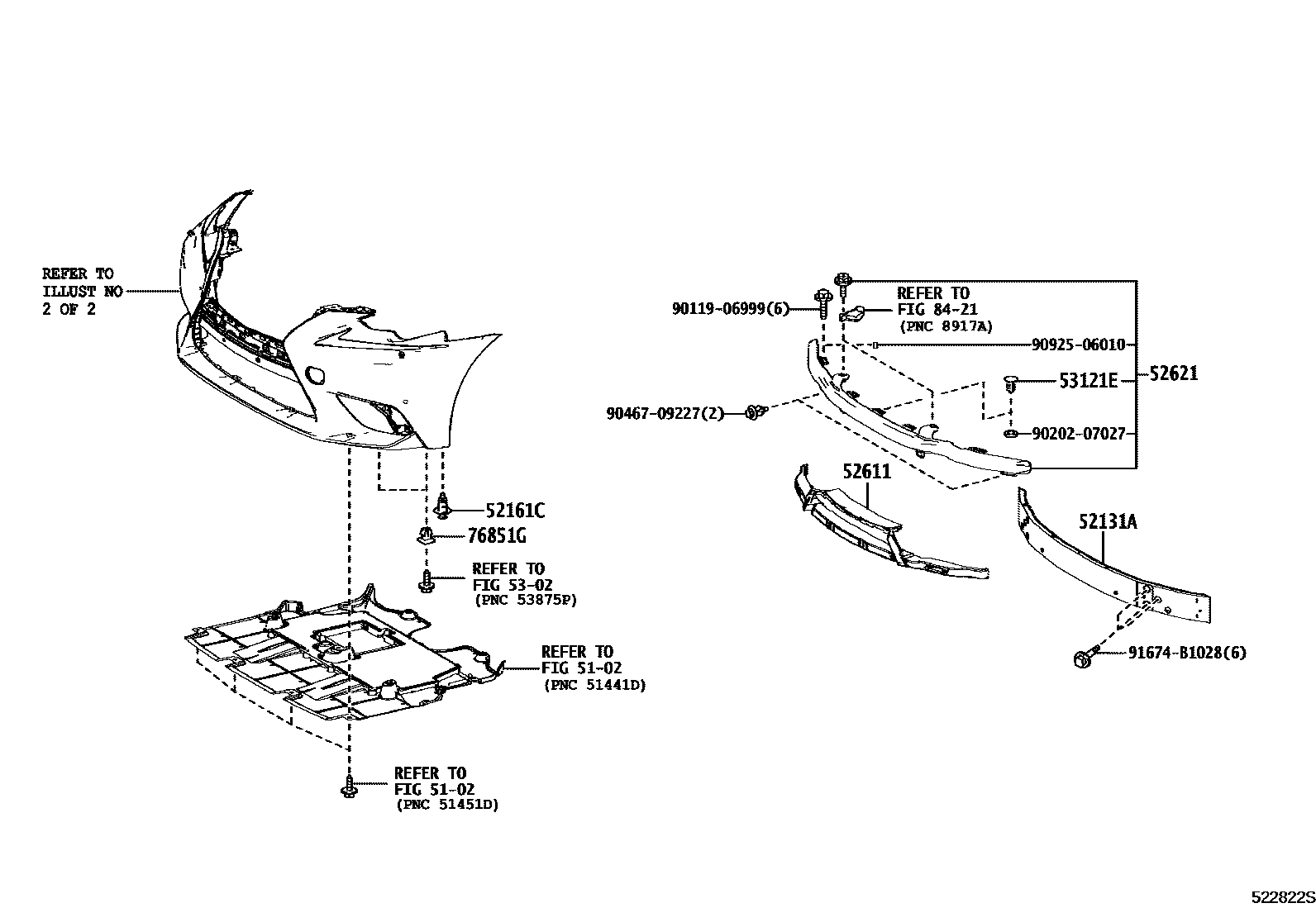

FRONT BUMPER & BUMPER STAY

0001 1 0002 1 0003 1F SPORT OR F SPORT X LINE 0004 1F SPORT OR F SPORT X LINE 0005 1 0006 1 0007 1F SPORT 0008 1F SPORT 0009 1 0010 1 0011 1 0012 1 0013 1F SPORT 0014 1F SPORT 0015 1

5102

52131AREINFORCEMENT, FRONT BUMPER

main52131-53070iAVE30,GSE3#201304-201508

main52131-53110iASE30,AVE3#,GSE31201610-202009

main52131-53190iUSE30202209

52161CPIECE, FRONT BUMPER

main52161-16010×2iAVE30,GSE3#201304-201508

52611ABSORBER, FRONT BUMPER ENERGY

main52611-53190iASE30,AVE3#,GSE31201610-202009

main52611-53230iASE30,AVE3#,GSE31202111

main52611-53260iUSE30202209

main52611-53170supersedes 52611-53150iASE30,AVE3#201603-201610

52621CHAMBER, POP UP HOOD

main52621-53020iASE30,AVE3#,GSE3#201508-201610

main52621-53040iASE30,AVE3#,GSE31201610-202009

5302

53121ECLIP(FOR FRONT BUMPER), NO.1

main90467-08186-C0iAVE30,GSE3#201304-201508

BLACK

main90467-08186-C3iASE30,AVE3#,GSE31201610-202009

BLACK

76851GGROMMET, SCREW, NO.1

main90189-06193×2iASE30,AVE3#,GSE3#201508-201610

8421

9011906999

main90119-06999

9020207027

main90202-07027

9046709227

main90467-09227

9092506010

main90925-06010

91674B1028

main91674-B1028

14 parts on this diagram · 15 diagrams in section
