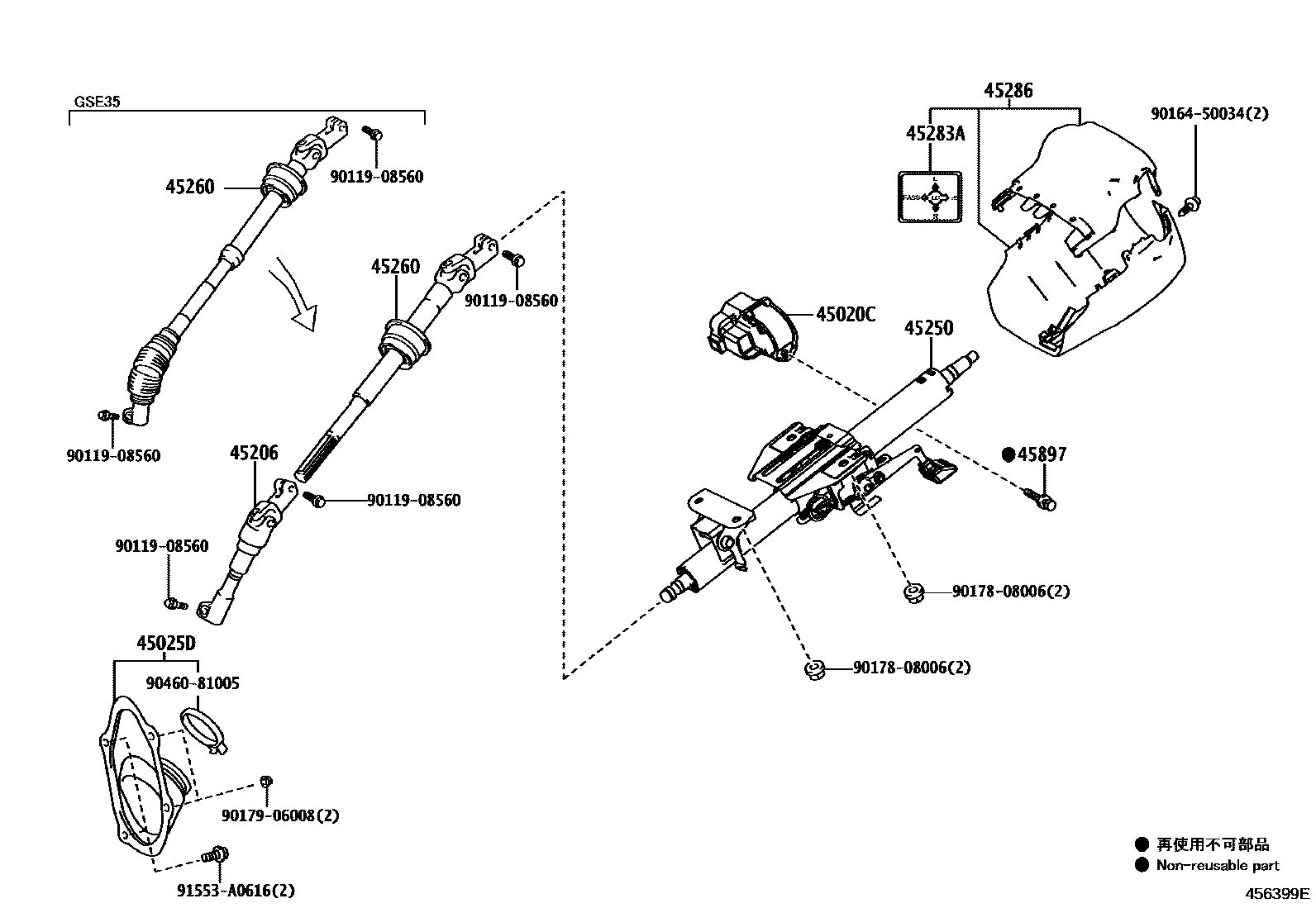

STEERING COLUMN & SHAFT

0001 1���������� & �������� 0002 1����������� & �������� 0003 1F SPORT OR F SPORT X LINE

45020CACTUATOR ASSY, STEERING LOCK(W/ECU)

main45020-30B10supersedes 45020-30B20iAVE30,GSE31201304-201508

main45020-53040iASE30,AVE3#,GSE31,USE30202111

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-30350iAVE30,GSE30,31201304-201508

main45025-30361iAVE35,GSE35201508-201610

main45025-30370iGSE31201407-201508

45206YOKE SUB-ASSY, STEERING SLIDING W/SHAFT

main45206-24010iUSE30202209

main45206-30170iAVE30,GSE30,31201304-201508

main45206-30190iASE30,AVE30,GSE31201508-201610

45250COLUMN ASSY, STEERING

main45250-53080iGSE30,35201304-201407

45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2

main45260-30220iASE30,AVE30,GSE31,USE30202111

main45260-30230iAVE35201610-202009

main45240-30180iGSE31201407-201508

45283APLATE, BEAM CHANGE & TURN SIGNAL CAUTION

main45283-22010iASE30,AVE3#,GSE3#201508-201610

45286COVER, STEERING COLUMN

main45286-53915-C0iAVE30,GSE31201304-201508

BLACK,TRIM0#,1#,2#,3#,5#

main45286-53917-C0iGSE30,35201304-201407

BLACK,TRIM0#,1#,2#

main45286-53924-C0iASE30,AVE3#,GSE31201610-201809

BLACK,TRIM1#,2#,3#,4#,9#

main45286-53925-C0iASE30,AVE3#202009-202110

BLACK,TRIM0#,2#,3#,4#,6#,7#

45897BOLT, STEERING LOCK SET

main45897-12020×2supersedes 45897-12020iAVE30,GSE31201304-201508

9011908560

main90119-08560

9016450034

main90164-50034

9017808006

main90178-08006

9017906008

main90179-06008

9046081005

main90460-81005

91553A0616

main91553-A0616

14 parts on this diagram · 3 diagrams in section
