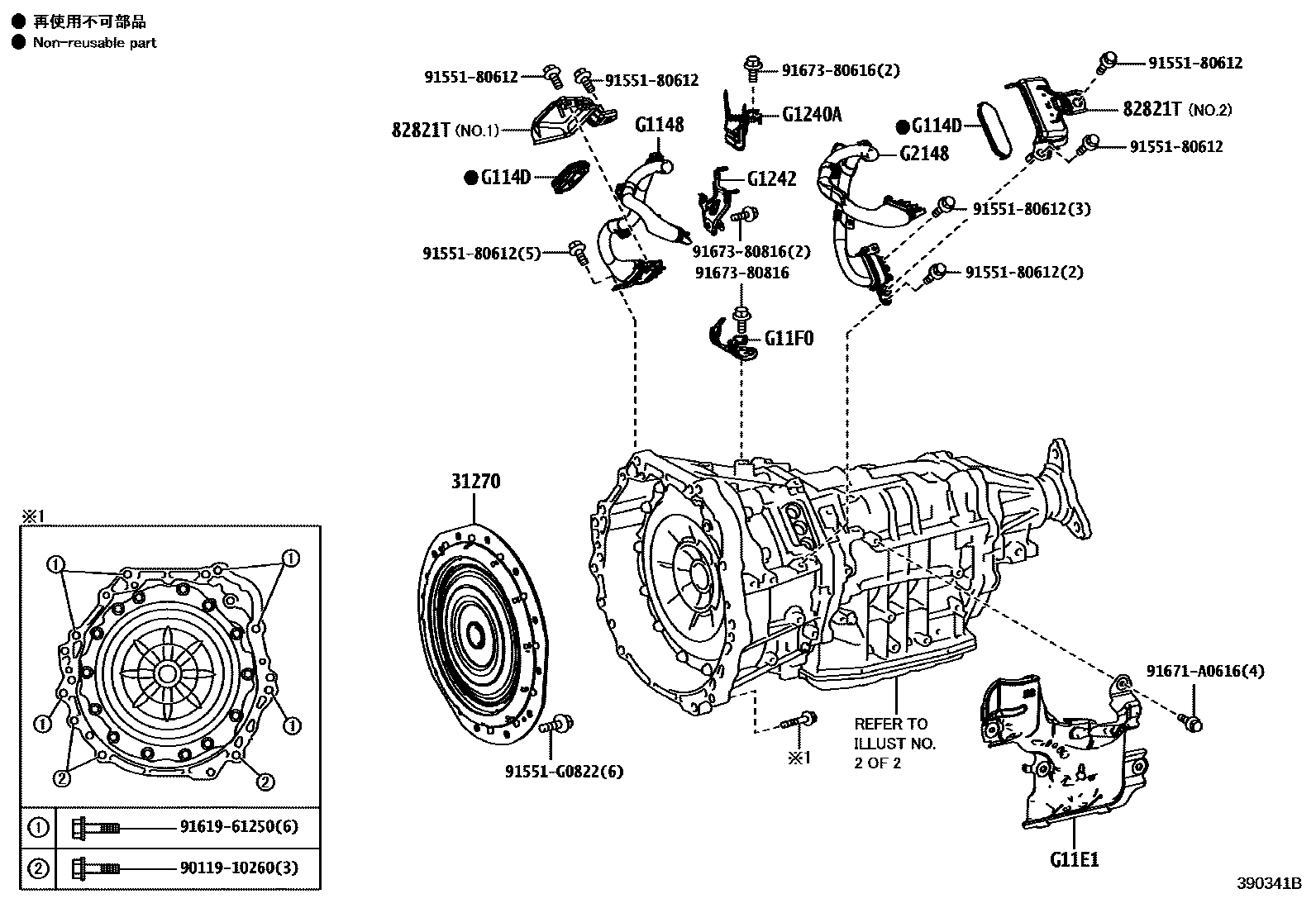

TRANSAXLE ASSY(HEV OR BEV OR FCEV)

0001 1 0002 1 0003 1 0004 1

31270DAMPER ASSY, TRANSMISSION INPUT

main31270-30010iAVE3#201304-202110

82821TCOVER, CONNECTOR

main82821-30A40iAVE3#201304-202110

main82821-30A50iAVE3#201304-202110

G1148CABLE, MOTOR

mainG114853010iAVE30201304-202009

mainG114853030iAVE3#202009-202110

G114DCAP, MOTOR CABLE TERMINAL

mainG114D30010iAVE30201304-202110

G11E1INSULATOR, MOTOR HEAT

mainG11E130010iAVE30201304-202110

G11F0COVER ASSY, TRANSAXLE UPPER

mainG11F030010iAVE30201304-202110

G1240ABRACKET ASSY, INVERTER MOTOR CABLE

mainG124053010iAVE30201304-202110

G1242BRACKET, ENGINE MOTOR CABLE CLAMP

mainG124230160iAVE30201304-202110

G2148CABLE, GENERATOR

mainG214853010iAVE30201304-202009

mainG214853030iAVE3#202009-202110

9011910260

main90119-10260

9155180612

main91551-80612

91551G0822

main91551-G0822

9161961250

main91619-61250

91671A0616

main91671-A0616

9167380616

main91673-80616

9167380816

main91673-80816

16 parts on this diagram · 4 diagrams in section
