STANDARD TOOL

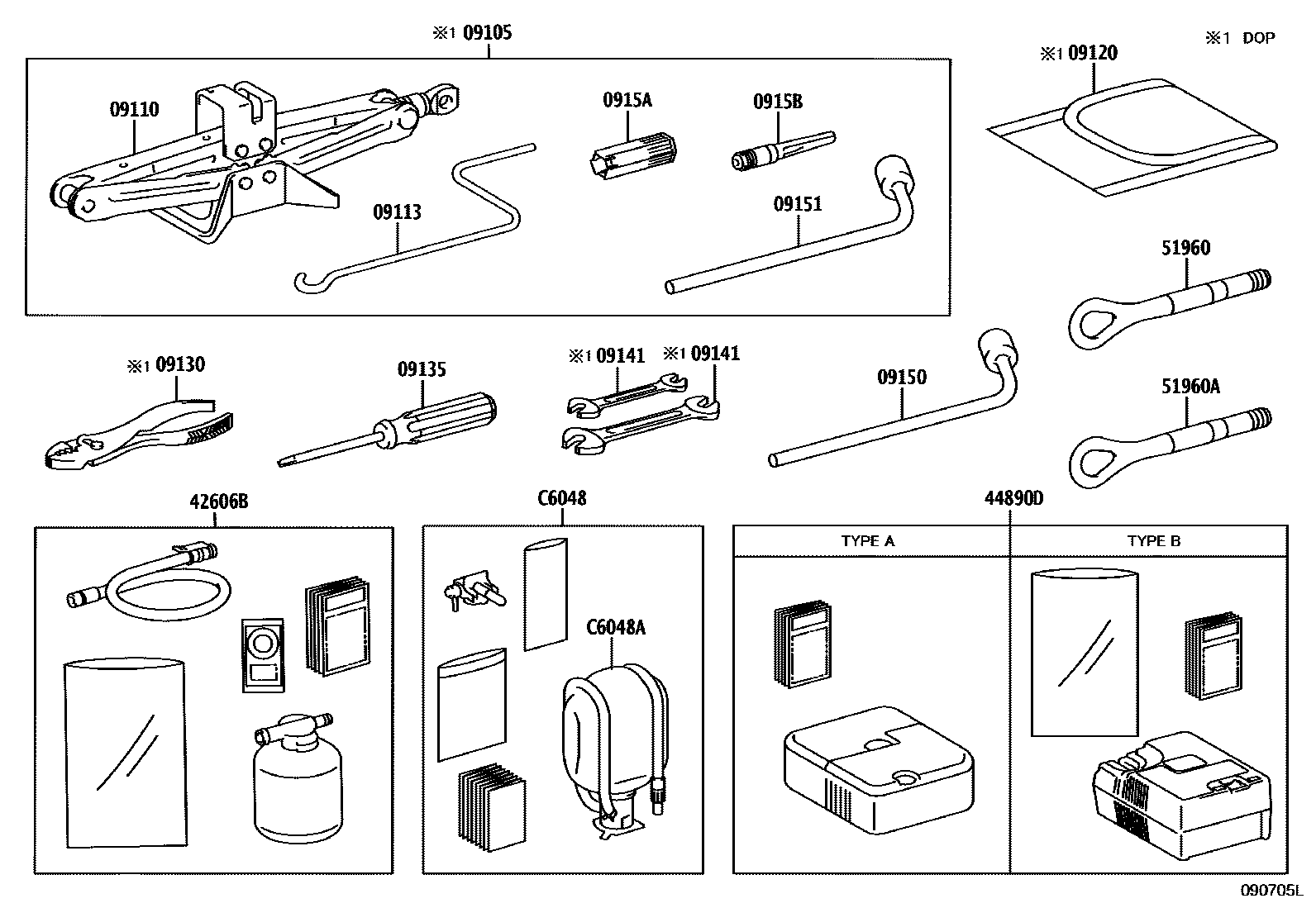

Parts diagram

09105BOX SET, JACK

main09105-53010i202009-202110

main09105-53010i202009-202110

09110JACK ASSY

main09111-30160i201304-201512

main09111-30180i202009-202109

main09111-30180i202009-202109

main09111-30180i201601-202009

main09111-30181i202111

main09111-30181i202111

09113HANDLE, JACK

main09113-13040i201304-202009

main09113-13040i202009-202110

09120BAG, TOOL

main09120-24020i201304-201610

main09120-24020i201610-202110

09130PLIERS

main09130-50040i201304-201610

main09130-50040i201610-202110

09135DRIVER, SCREW

main99915-10700i201304-202110

09141SPANNER

main09141-60010i201304-201610

main09141-60010i201610-202110

main09141-60020i201610-202110

main09141-60020i201304-201610

09150WRENCH, HUB NUT BOX

main09150-26010i201304-202009

09151WRENCH, HUB BOLT BOX

main09151-53010i202009-202110

main09151-53010i202009-202110

0915ASOCKET, HUB BOLT TEMPORARY SETTING

main0915A-53010i202009-202110

main0915A-53010i202009-202110

0915BPIN, WHEEL GUIDE

main0915B-53010i202009-202110

main0915B-53010i202009-202110

42606BREPAIR KIT, TUBELESS TIRE

main42606-30011i201909-202009

main42606-30011i202009-202212

main42606-42080i202301

44890DCOMPRESSOR ASSY, AIR

main44890-12011i202109-202212

main44890-30030i202101-202108

main44890-42050i202301

main44890-52021i201304-201909

main44890-52021i201304-201610

main44890-52021i201304-202009

main44890-52021i201610-201909

main44890-53010i202009-202101

main44890-53010i201909-202009

main44890-53010i201909-202009

51960HOOK ASSY, FRONT

main51961-30020i201304-202009

main51961-53010i202009-202110

51960AHOOK ASSY, REAR

main51961-53010i202209

C6048REPAIR SET, TIRE

main42683-47021i201304-201610

main42683-47021i201304-202009

main42683-47021i201610-201909

C6048ASEALANT, REPAIR TIRE

mainC604847051i201304-201610

mainC604847051i201304-202009

mainC604847051i201610-201909

17 parts on this diagram · 3 diagrams in section
