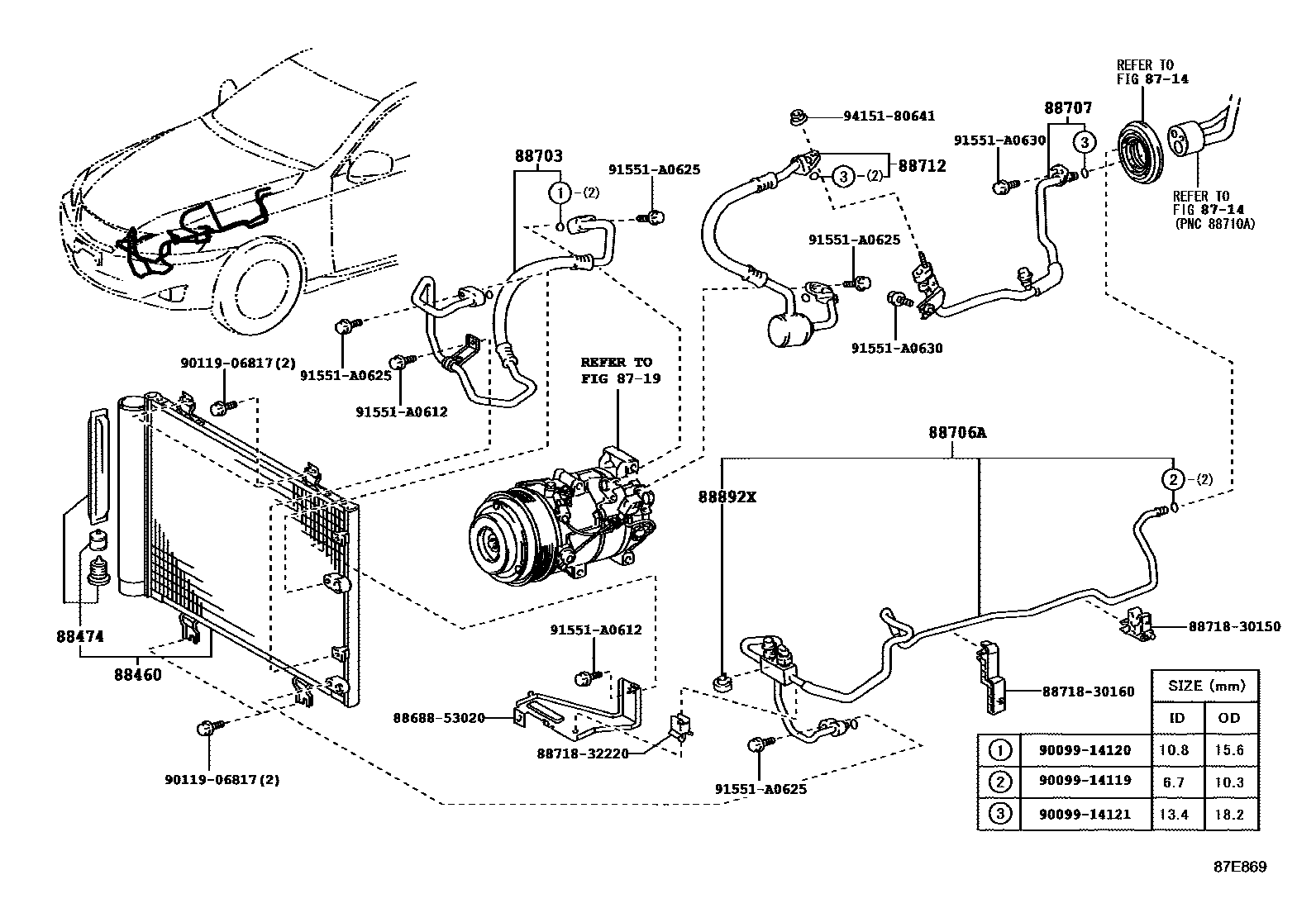

HEATING & AIR CONDITIONING - COOLER PIPING

8714

8719

88460CONDENSER ASSY, COOLER

main88460-53030iGSE2#200508-200808

88474DRYER, COOLER

main88474-17010iGSE2#200508-200808

88703HOSE SUB-ASSY, DISCHARGE

main88703-53090iGSE2#200508-200808

main88703-53091iGSE2#201009

88706ATUBE SUB-ASSY, LIQUID, A

main88706-53080iGSE2#200508-200808

88707PIPE SUB-ASSY, SUCTION

main88707-53050iGSE2#200508-200808

88712HOSE, COOLER REFRIGERANT SUCTION, NO.1

main88712-53100iGSE2#200508-200808

88892XCOVER, COOLER, NO.2

main88892-50120iGSE2#201005-201008

8868853020BRACKET, COOLER DIAPHRAGM

main88688-53020

8871830150PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-30150

8871830160PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-30160

8871832220PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-32220

9009914119

main90099-14119

9009914120

main90099-14120

9009914121

main90099-14121

9011906817

main90119-06817

91551A0612

main91551-A0612

91551A0625

main91551-A0625

91551A0630

main91551-A0630

9415180641

main94151-80641

21 parts on this diagram · 1 diagram in section
