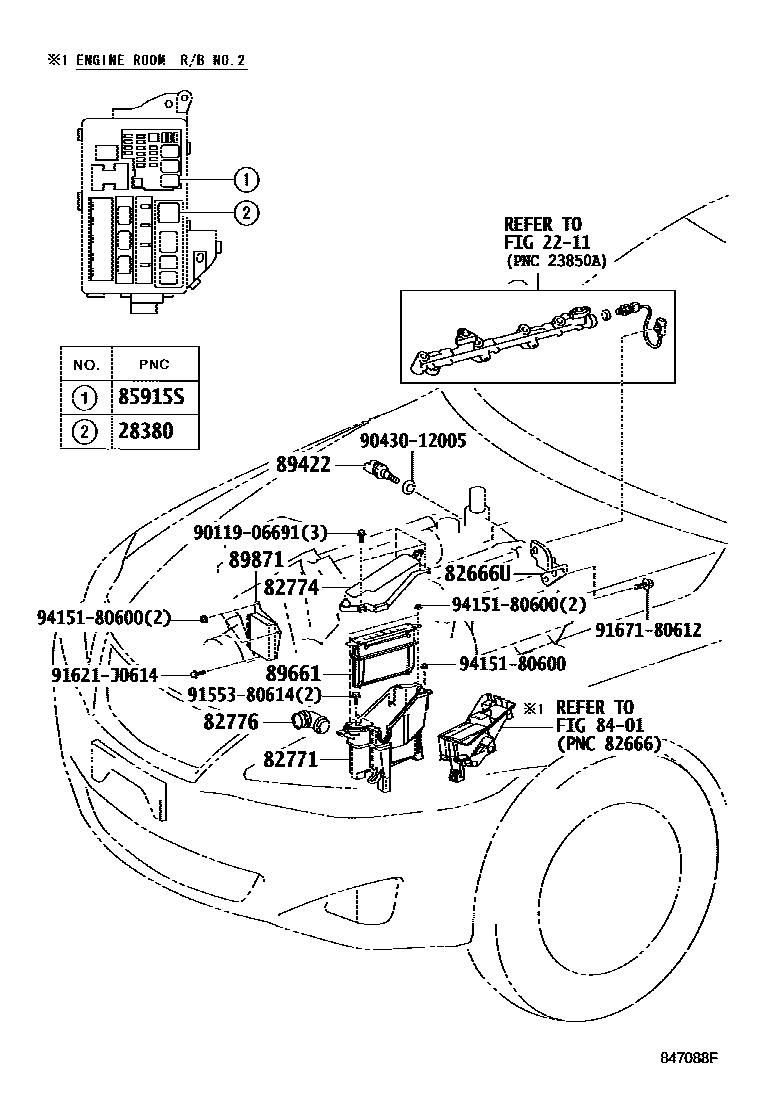

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1

2211

28380RELAY ASSY, FUEL PUMP

main90987-03003i2GRFSE,4GRFSE..GSE2#200508-200808

82666UHOLDER, CONNECTOR

main82666-30780iGSE2#200508-200808

82771BOX, ENGINE ROOM ECU

main82771-30040iGSE2#200508-200808

82774COVER, ENGINE ROOM ECU

main82774-30050iGSE2#200508-200808

82776DUCT, ENGINE ROOM ECU OUTLET

main82776-53040iGSE2#200508-200808

8401

85915SRELAY, HEATER (FOR AIR FUEL RATIO SENSOR)

main90987-02027iGSE2#200508-200808

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-33030iGSE2#200508-200808

89661COMPUTER, ENGINE CONTROL

main89661-53620iGSE21200508-200607

main89661-53630iGSE20200508-200607

main89661-53640iGSE25200508-200607

main89661-53750iGSE21201008

main89661-53770iGSE21200607-200708

main89661-53790iGSE20200607-200708

main89661-53800iGSE25200607-200708

main89661-53A60iGSE21200708-200805

main89661-53A61iGSE21200806-200808

main89661-53A80iGSE20200708-200808

main89661-53A90iGSE25200708-200808

main89661-53C00iGSE21200808-200908

main89661-53C20iGSE20200808-200908

main89661-53C30iGSE25200808-200908

main89661-53F50iGSE21200908-201008

main89661-53F80iGSE20200908-201008

main89661-53F90iGSE25200908-201008

main89661-53J50iGSE20201008

main89661-53J60iGSE25201008

89871DRIVER, INJECTOR

main89871-30030iGSE20,25200808-201008

main89871-30031iGSE20,25201111-201304

main89871-53010iGSE21200808-201008

9011906691

main90119-06691

9043012005

main90430-12005

9155380614

main91553-80614

91621J0614

main91621-J0614

9167180612

main91671-80612

9415180600

main94151-80600

17 parts on this diagram · 2 diagrams in section
