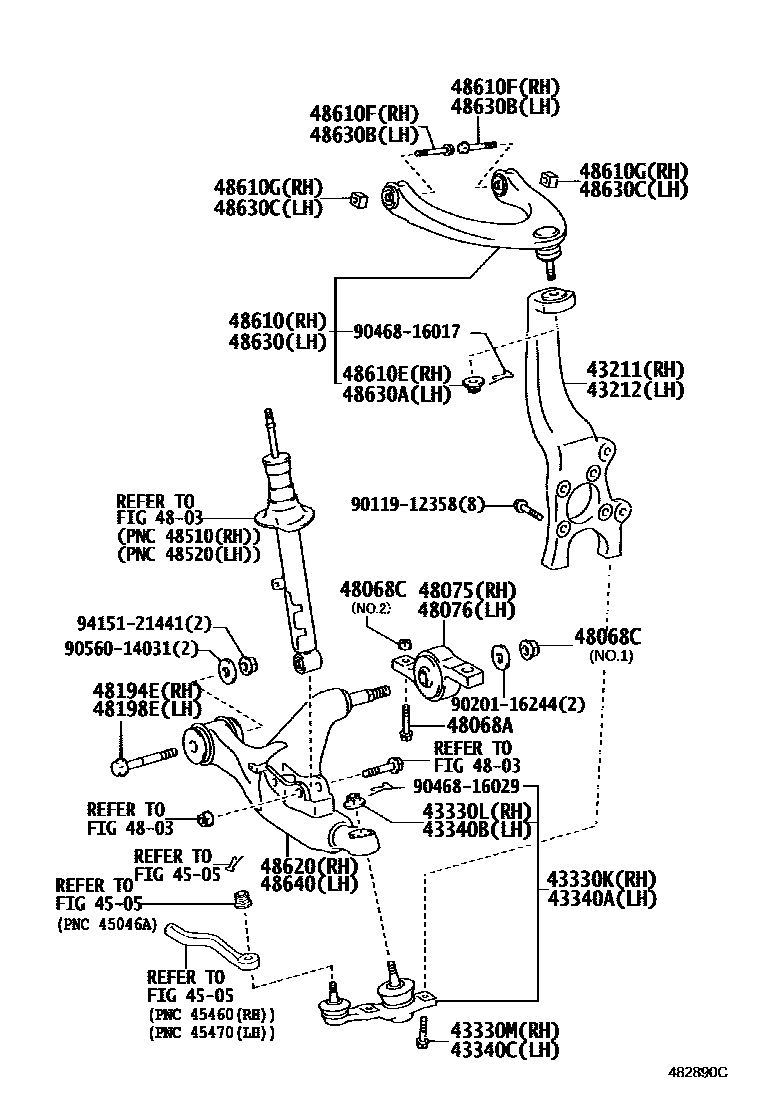

FRONT AXLE ARM & STEERING KNUCKLE

0001 1 0002 1

43211KNUCKLE, STEERING, RH

main43201-53010iGSE20,21200508-201304

main43201-53020iGSE25200508-201304

43212KNUCKLE, STEERING, LH

main43202-53010iGSE20,21200508-201008

main43202-53020iGSE25200508-201008

43330KJOINT ASSY, LOWER BALL, FRONT RH

main43330-39625iGSE20,21200508-201008

main43330-39635iGSE25200508-201008

43330LNUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)

main90171-14011iGSE20,21200508-201008

main90171-14014iGSE25200508-201008

43330MBOLT (FOR FRONT LOWER BALL JOINT RH)

main91552-L1455iGSE20,21200508-201008

43340AJOINT ASSY, LOWER BALL, FRONT LH

main43330-39635iGSE25200508-201008

main43340-39505iGSE20,21200508-201008

43340BNUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)

main90171-14011iGSE20,21200508-201008

main90171-14014iGSE25200508-201008

43340CBOLT (FOR FRONT LOWER BALL JOINT LH)

main91552-L1455iGSE20,21200508-201008

4505

4803

48068ABOLT(FOR FRONT SUSPENSION LOWER ARM)

main91552-L1265iGSE20,21200508-201008

48068CNUT(FOR FRONT SUSPENSION LOWER ARM)

main94151-21240iGSE20,21200508-201008

main94151-21601iGSE20,21200508-201008

48075BRACKET SUB-ASSY, LWR ARM, NO,1

main48075-30030iGSE2#201011

main48075-30040iGSE2#200508-201008

main48075-30050iGSE2#200508-201008

main48075-53010iGSE2#200508-201010

sub48075-30030

48076BRACKET SUB-ASSY, LWR ARM, NO.2

main48076-30030iGSE2#201011

main48076-30040iGSE2#200508-201008

main48076-30050iGSE2#200508-201008

main48076-53010iGSE2#200508-201010

sub48076-30030

48194ECAM, FRONT SUSPENSION CAMBER ADJUST, NO.3 RH

main90105-14166iGSE20,21200508-201008

48198ECAM, FRONT SUSPENSION CAMBER ADJUST, NO.3 LH

main90105-14166iGSE20,21200508-201008

48610ARM ASSY, FRONT SUSPENSION UPPER, RH

main48610-39135iGSE25200508-201008

main48610-59065iGSE20,21200508-201008

48610ENUT, CASTLE(FOR FRONT SUSPENSION UPPER ARM RH)

main90171-12012iGSE2#200508-201008

48610FBOLT(FOR FRONT SUSPENSION UPPER ARM RH)

main91672-G1070iGSE2#200508-201008

48610GNUT(FOR FRONT SUSPENSION UPPER ARM RH)

main90173-10012iGSE2#200508-201008

48620ARM ASSY, FRONT SUSPENSION, LOWER RH

main48620-30290iGSE20,21200808-201008

main48620-30300iGSE25200508-201008

main48620-53020iGSE20,21200508-200808

48630ARM ASSY, FRONT SUSPENSION, UPPER LH

main48610-39135iGSE25200508-201008

main48630-59065iGSE20,21200508-201008

48630ANUT, CASTLE(FOR FRONT SUSPENSION UPPER ARM LH)

main90171-12012iGSE2#200508-201008

48630BBOLT(FOR FRONT SUSPENSION UPPER ARM LH)

main91672-G1070iGSE2#200508-201008

48630CNUT(FOR FRONT SUSPENSION UPPER ARM LH)

main90173-10012iGSE2#200508-201008

48640ARM ASSY, FRONT SUSPENSION LOWER, LH

main48640-30290iGSE20,21200808-201008

main48640-30300iGSE25200508-201008

main48640-53020iGSE20,21200508-200808

9011912358

main90119-12358

9020116244

main90201-16244

9046816017

main90468-16017

9046816029

main90468-16029

9056014031

main90560-14031

9415121441

main94151-21441

32 parts on this diagram · 2 diagrams in section
