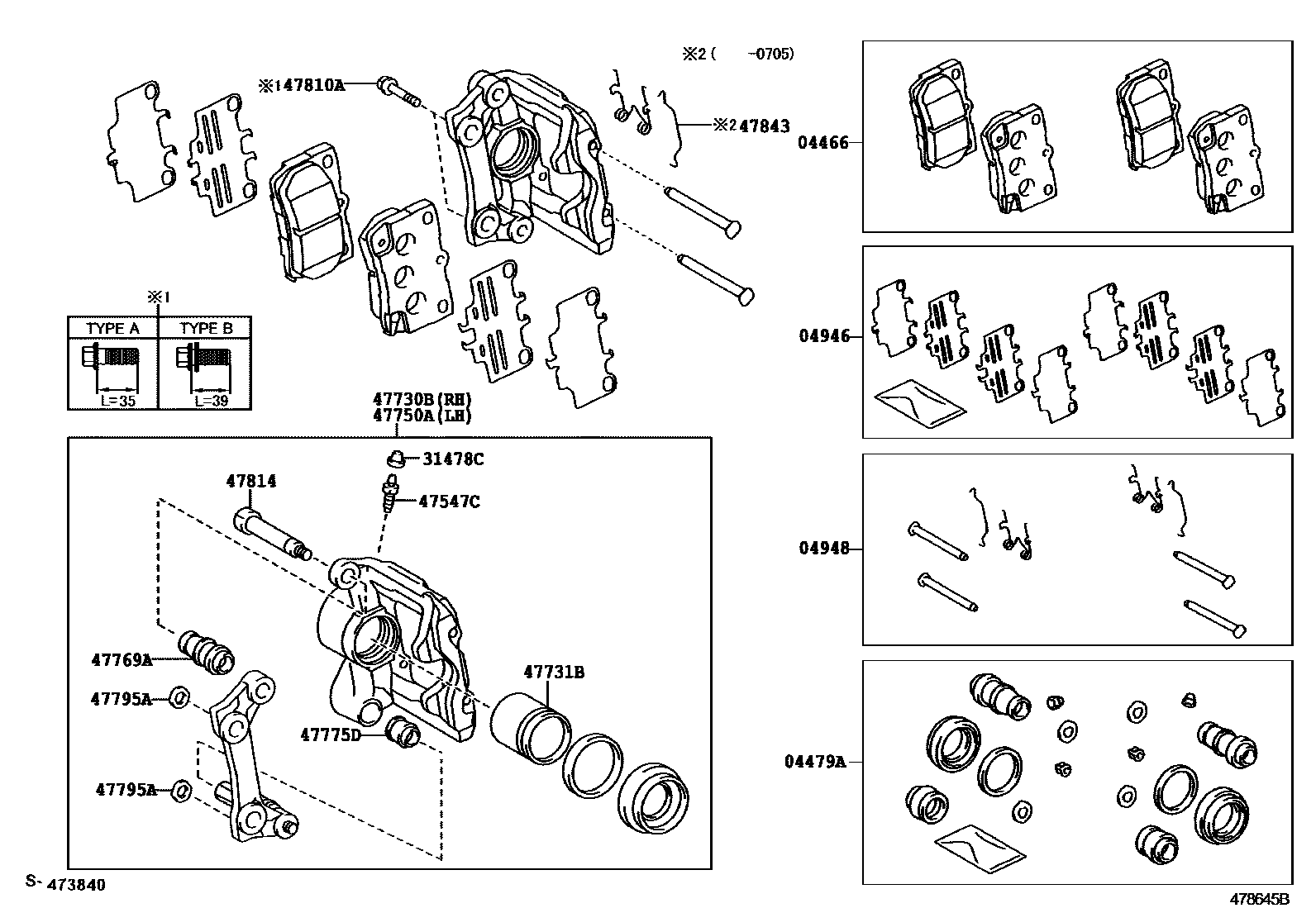

REAR DISC BRAKE CALIPER & DUST COVER

04466PAD KIT, DISC BRAKE, REAR

main04466-22190iGSE20,25200508-200602

main04466-53010iGSE20,25200602-200808

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-22150iGSE21200508-200511

sub04479-30530

main04479-22170iGSE21201104

main04479-30340iGSE20,25200508-200511

sub04479-30550

main04479-30450iGSE20,25200511-200709

main04479-30510iGSE20,25200709-200808

main04479-53070iGSE20,25201104

main04479-61020iGSE21200606-200707

main04479-61040iGSE21200808-201008

main04479-68030iGSE21200511-200606

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-22090iGSE21200508-200808

main04946-30110iGSE20,25200508-200808

04948FITTING KIT, DISC BRAKE, REAR

main04948-22090iGSE21200508-200705

main04948-30140iGSE20,25200508-200705

main04948-30210iGSE21200808-201008

main04948-30220iGSE20,25200705-200808

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-30010×2iGSE2#200508-200510

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-27030×2iGSE2#200511-200808

47730BCYLINDER ASSY, REAR DISC BRAKE, RH

main47830-22220iGSE21200508-200511

main47830-22221iGSE21201008-201212

main47830-30400iGSE21201212-201304

main47830-53050iGSE20,25200508-200511

main47830-53051iGSE20,25200808-201008

main47830-53052iGSE20,25201212-201304

main47830-53070iGSE20201008-201212

main47830-53071iGSE20201212-201304

47731BPISTON, REAR DISC BRAKE

main47831-22220×2iGSE21200508-200510

main47831-30300×2iGSE20,25201008-201304

47750ACYLINDER ASSY, DISC BRAKE, REAR LH

main47850-22220iGSE21200508-200511

main47850-22221iGSE21201008-201212

main47850-30400iGSE21201212-201304

main47850-53050iGSE20,25200508-200511

main47850-53051iGSE20,25200511-200808

main47850-53052iGSE20,25201212-201304

main47850-53070iGSE20201008-201212

main47850-53071iGSE20201212-201304

47769ABUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47879-30300×2iGSE2#200508-200510

47775DBOOT, BUSH DUST(FOR REAR DISC BRAKE)

main47875-30341×2iGSE2#201008-201304

47795APLATE, REAR DISC BRAKE CALIPER, NO.1

main47895-30300×4iGSE2#200508-200510

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90105-10525×4iGSE2#200508-200808

main90119-12416×4iGSE2#201212

47814PIN, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47814-30300×2iGSE2#200508-200510

47843CLIP, REAR DISC BRAKE PIN HOLD

main47843-30300×2iGSE2#200508-200705

15 parts on this diagram · 1 diagram in section
