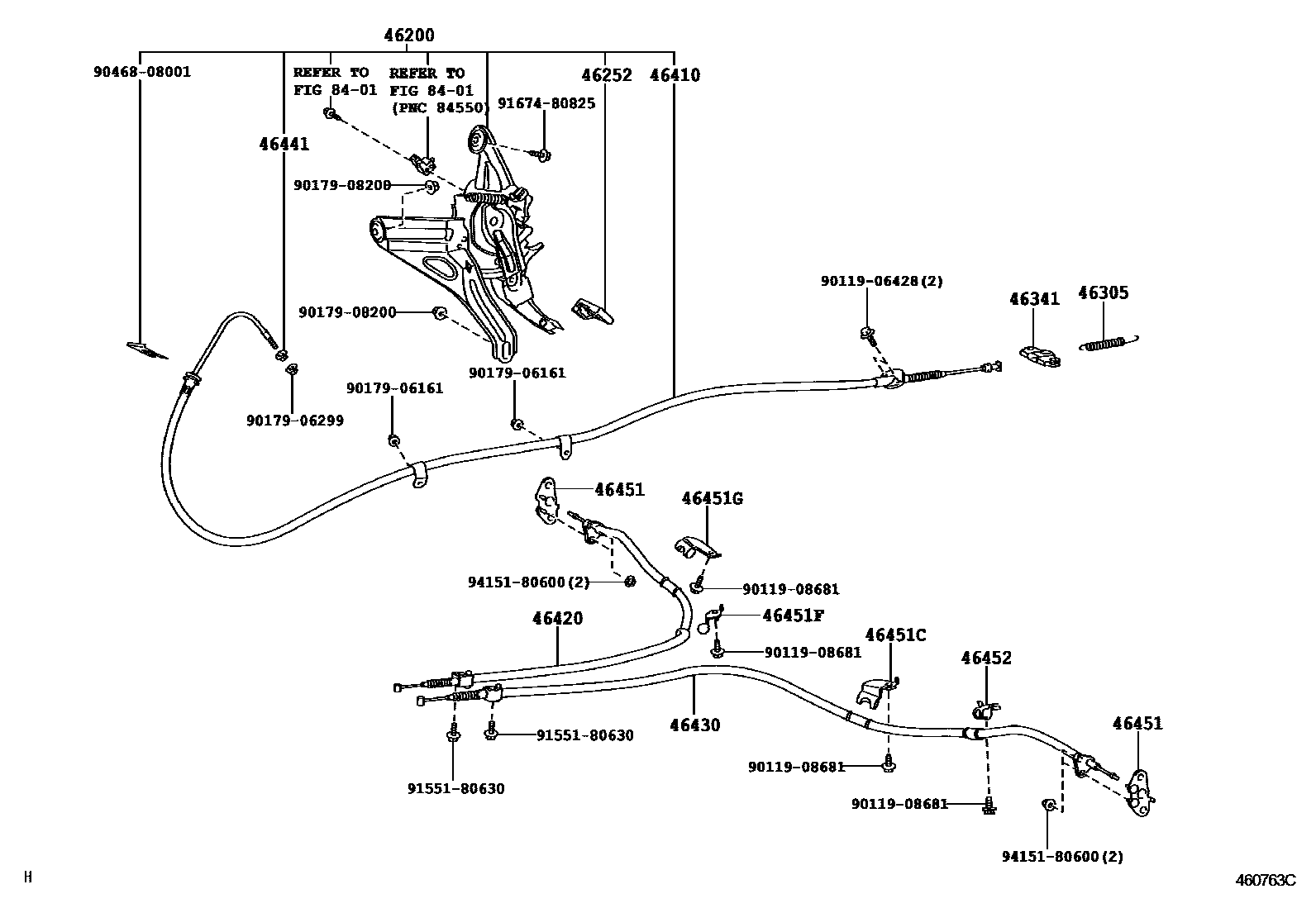

PARKING BRAKE & CABLE

0001 1 0002 1

46200PEDAL ASSY, PARKING BRAKE CONTROL

main46200-53010iGSE2#200508-201008

46252PAD, PARKING PEDAL

main46252-22010iGSE2#200508-201008

46305SPRING, PARKING BRAKE RETURN W/DAMPER

main46305-53010iGSE2#200508-201008

46341EQUALIZER, PARKING BRAKE

main46341-22060iGSE2#200508-201008

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-53030iGSE2#200508-201008

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-53020iGSE2#200508-201007

sub46420-53021

sub46601-30231

sub46602-30231

main46420-53021iGSE2#201007-201008

46430CABLE ASSY, PARKING BRAKE, NO.3

main46420-53020iGSE2#200508-201007

sub46420-53021

sub46601-30231

sub46602-30231

main46420-53021iGSE2#201007-201008

46441NUT, WIRE ADJUSTING, NO.1

main46441-12010iGSE2#200508-201008

46451BRACKET, CABLE SUPPORT

main46451-50050iGSE2#200508-201304

46451CBRACKET, PARKING BRAKE CABLE SUPPORT, NO.1

main46451-30180iGSE2#200508-201008

46451FBRACKET, CABLE SUPPORT

main46451-22100iGSE20,25200508-201008

main46451-53010iGSE21200508-201008

46451GBRACKET, CABLE SUPPORT

main46451-30190iGSE2#200508-201008

46452BRACKET, PARKING BRAKE CABLE SUPPORT, NO.2

main46451-30200iGSE2#200508-201008

8401

9011906428

main90119-06428

9011908681

main90119-08681

9017906161

main90179-06161

9017906299

main90179-06299

9017908200

main90179-08200

9046808001

main90468-08001

9155180630

main91551-80630

9167480825

main91674-80825

9415180600

main94151-80600

23 parts on this diagram · 2 diagrams in section
