DISC WHEEL & WHEEL CAP

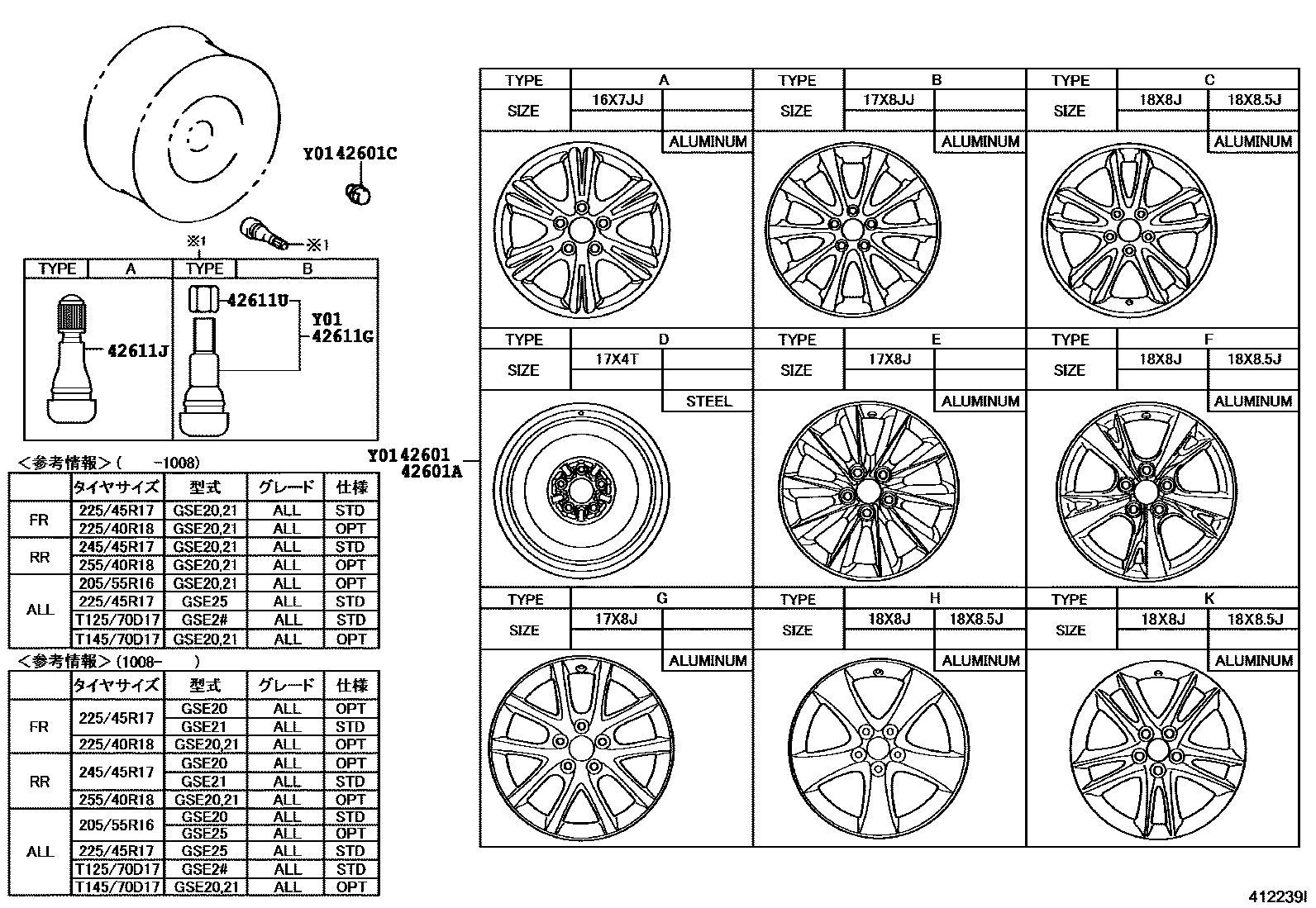

Parts diagram

42601WHEEL, DISC

main42611-53140i201008-201304

main42611-53140i200508-201008

main42611-53140i201008-201304

main42611-53150i200508-200708

main42611-53160i200508-200708

main42611-53160i200508-200607

main42611-53170i200508-200607

main42611-53170i200508-200708

main42611-53240i200708-200808

main42611-53300i200808-201008

main42611-53330i201008-201304

main42611-53330i201008-201304

main42611-WY070i201008-201304

main42611-WY080i201008-201304

main4261A-53050i200708-200808

main4261A-53070i200708-200808

main4261A-53150i200808-201008

main4261A-53170i200808-201008

main4261A-53210i201008-201304

main4261A-53230i201008-201304

main4261A-53250i201008-201108

main4261A-53250i201008-201108

42601AWHEEL, DISC (FOR SPARE)

main42611-30A60i200508-201008

42601CNUT, HUB (FOR AXLE)

main90942-01033i200508-201008

42611GVALVE (FOR TUBELESS TIRE)

main90942-05028i200605-201008

main90942-05028i200508-201008

main90942-05028i200808-201008

main90942-05028i200605-200607

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90942-05009i200508-201008

42611UCAP, TIRE VALVE

main90942-05029i200508-200607

main90942-05029i200508-201008

main90942-05029i200808-201008

main90942-05029i201008-201304

6 parts on this diagram · 3 diagrams in section
