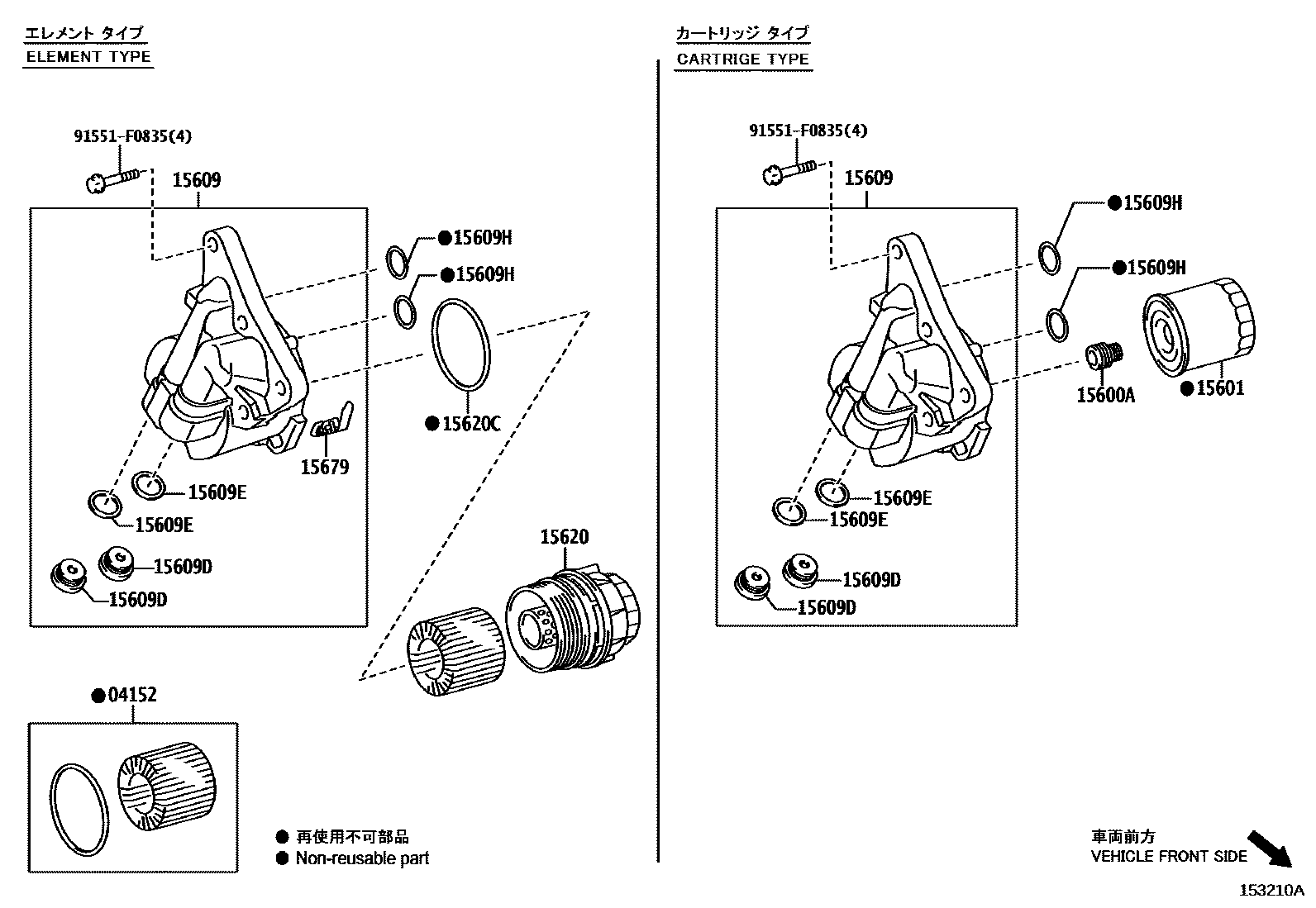

OIL FILTER

04152ELEMENT KIT, OIL FILTER

main04152-37010i2ZRFXE..ZWA10201012-201312

15600AUNION(FOR OIL FILTER)

main90904-04006i2ZRFXE..ZWA10201709

15601FILTER SUB-ASSY, OIL

main90915-10003i2ZRFXE..ZWA10201709

sub90915-10009

15609BRACKET SUB-ASSY, OIL FILTER

main15609-37040i2ZRFXE..ZWA10201012-201310

main15609-37041i2ZRFXE..ZWA10201310-201312

main15609-37060i2ZRFXE..ZWA10201709

15609DPLUG, W/HEAD STRAIGHT SCREW(FOR OIL FILTER BRACKET)

main90341-20002×2i2ZRFXE..ZWA10201012-201312

15609EGASKET, W/HEAD STRAIGHT SCREW PLUG

main90430-20004×2i2ZRFXE..ZWA10201012-201312

main90430-20018×2i2ZRFXE..ZWA10201709

15609HRING, O(FOR OIL FILTER BRACKET)

main96723-24020×2i2ZRFXE..ZWA10201012-201312

15620CAP ASSY, OIL FILTER

main15620-37010i2ZRFXE..ZWA10201012-201312

15620CGASKET(FOR OIL FILTER CAP)

main90301-69011i2ZRFXE..ZWA10201012-201312

15679CLIP, OIL FILTER BRACKET

main15679-37010i2ZRFXE..ZWA10201012-201312

main15679-37011i2ZRFXE..ZWA10201409-201711

91551F0835

main91551-F0835

11 parts on this diagram · 1 diagram in section
