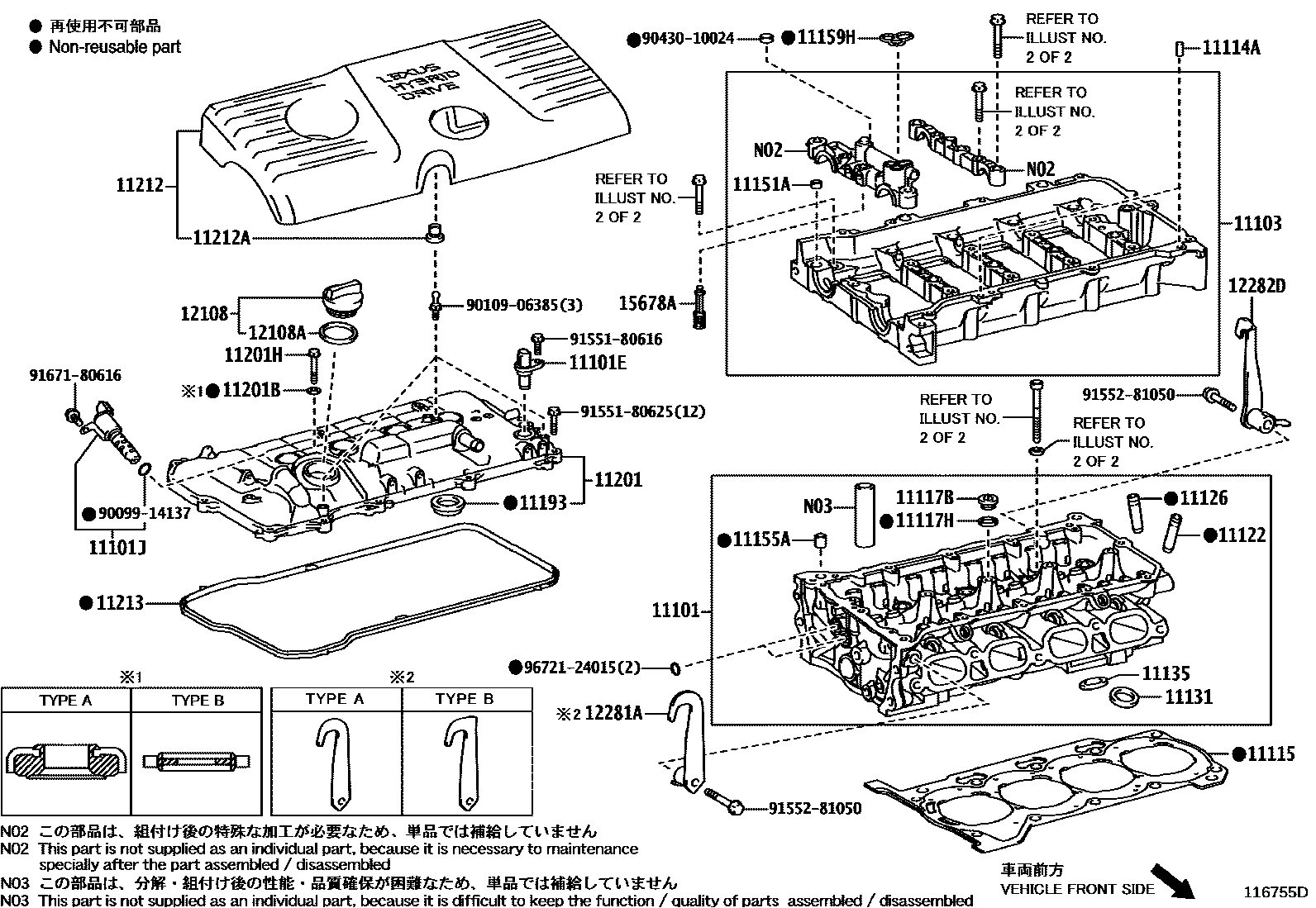

CYLINDER HEAD
11101HEAD SUB-ASSY, CYLINDER
11101ESENSOR, CAM POSITION
11101JVALVE ASSY, CAMSHAFT TIMING OIL CONTROL
11103HOUSING SUB-ASSY, CAMSHAFT
11114APIN, STRAIGHT
11115GASKET, CYLINDER HEAD
11117BPLUG, W/HEAD TAPER SCREW, NO.2
11117HGASKET(FOR WATER HOLE)
11122BUSH, INTAKE VALVE GUIDE
11126BUSH, EXHAUST VALVE GUIDE
11131SEAT, INTAKE VALVE
11135SEAT, EXHAUST VALVE
11151APIN, RING(FOR CAMSHAFT BEARING CAP SETTING)
11155APIN, RING W/HEAD
11159HGASKET, CAMSHAFT BEARING CAP OIL HOLE
11193GASKET, SPARK PLUG TUBE
11201COVER SUB-ASSY, CYLINDER HEAD
11201BWASHER, SEAL(FOR CYLINDER HEAD COVER)
11201HBOLT(FOR CYLINDER HEAD COVER)
11212COVER, CYLINDER HEAD, NO.2
11212ACUSHION, CYLINDER HEAD COVER
11213GASKET, CYLINDER HEAD COVER
12108CAP SUB-ASSY, OIL FILLER
12108AGASKET(FOR OIL FILLER CAP)
12281AHANGER, ENGINE, NO.1
12282DHANGER, ENGINE, NO.2
15678AFILTER, OIL CONTROL VALVE
9009914137
9010906385
9043010024
9155180616
9155180625
9155281050
9167180616
9672124015
35 parts on this diagram · 2 diagrams in section
