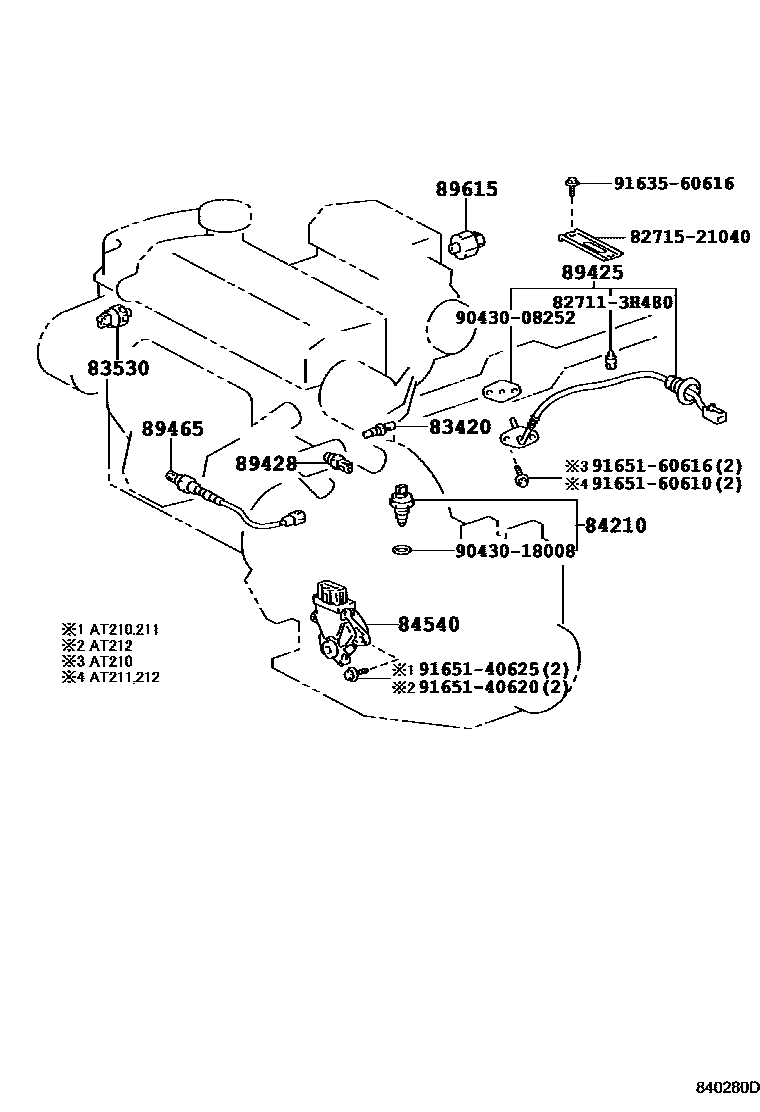

SWITCH & RELAY & COMPUTER

0001 1����� & ��������� 0002 1����� & ��������� 0003 1����� & ��������� 0004 1����� �-� 0005 1����� �-� 0006 1��� 0007 1�������� ���� ���� 0008 1�����-��� ���� 0009 1�-�,���,�-� & ���-��

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-16040iCT21#199808

main83420-20020iCT21#199608-199808

main83420-20040iAT21#,ST215199608-199610

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020iST215199803

main83530-28040iAT210199803-199808

main83530-30080iAT210199608-199803

sub83530-60040

main83530-30090iAT211,212,ST215199608-199803

sub83530-60020

main83530-30100iCT21#199608-199803

sub83530-60010

main83530-60010iCT21#199803

main83530-60020iST215199803

main83530-60040iAT210199803-199808

main83530-60040iAT210199808

84210SWITCH ASSY, BACK-UP LAMP

main84210-12040iAT21#,CT210,211,215,ST215..MTM199608

sub84210-52050

84540SWITCH ASSY, NEUTRAL START

main84540-12200iAT210,211..4FC199608

main84540-12210iAT210,211..4FC199608

main84540-16050iAT212,CT210,211,216,ST215..4FC..TI199608

main84540-20200iST215..4FC199608-199808

89425SENSOR, EXHAUST GAS TEMPERATURE

main89425-20210iST215199608-199711

sub89425-20290

main89425-80035iAT210,211199608-199711

main89425-80037iAT212199608-199711

89428SWITCH, TEMPERATURE DETECT, NO.2

main89428-10120iAT21#199808

main89428-12160iAT21#199608-199808

main89428-20110iCT211,215;CT210,216..4FC199608

main89428-33010iCT210..5F199608-199808

89465SENSOR, OXYGEN

main89465-12400iAT211199608

main89465-12430iAT212199608

main89465-20270iST215199608

main89465-20600iAT210199608

89615SENSOR, KNOCK CONTROL

main89615-12030iAT21#199608-199809

sub89615-22050

main89615-20030iST215199608-199910

sub89615-32040

main89615-22030iAT21#199608-199908

main89615-22050iAT21#199809

sub89615-52010

main89615-32030iST215199910

main89615-32040iST215199910

sub89615-32030

main89615-33020iST215199608-199910

sub89615-32030

main89615-52010iAT21#199909

827113H480WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-3H480

8271521040BRACKET,WIRING HARNESS CLAMP

main82715-21040

9043008252

main90430-08252

9043018008

main90430-18008

9163560616

main91635-60616

9165140620

main91651-40620

9165140625

main91651-40625

9165160610

main91651-60610

9165160616

main91651-60616

17 parts on this diagram · 9 diagrams in section
