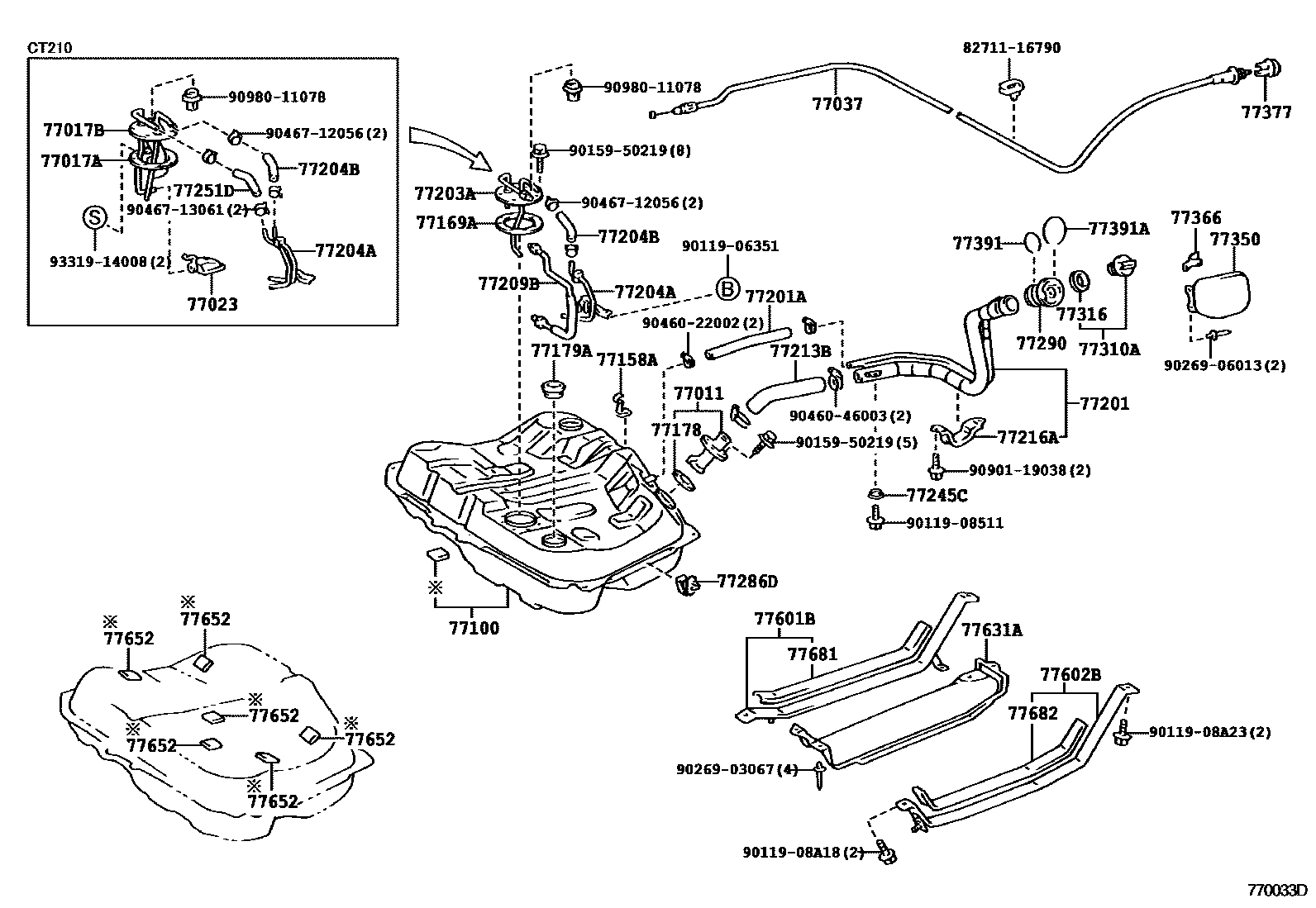

FUEL TANK & TUBE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1

77011PIPE SUB-ASSY, FUEL TANK FILLER, LOWER

main77011-20100iST215..TI;AT21#,CT210,211,216199608

main77011-32040iCT215,ST215199608-199808

77017TUBE SUB-ASSY, FUEL AND EVAPORATION VENT

main77017-32071iCT215,ST215199608-199808

77017AGASKET, FUEL TANK VENT

main77169-14010iCT215,ST215199608-199808

main77169-20050iCT210199608-199808

77017BTUBE SUB-ASSY, FUEL TANK VENT

main77017-20180iCT215199608-199808

main77017-20190iCT210,211199608

main77017-21030iCT216199808

77023FILTER SUB-ASSY, FUEL SUCTION TUBE

main77023-20050iCT215199608-199808

main77023-32040iCT210,211,216199608

77037LOCK SUB-ASSY, FUEL FILLER OPENING LID

main77037-20110iAT21#,CT21#,ST215199608

77100TANK ASSY, FUEL

main77001-20740iAT21#,CT210,211199608

main77001-21903iCT216,ST215199808

main77001-32912iCT215,ST215199608-199808

77158ASUPPORT, TANK SUCTION TUBE

main77158-20020×2iAT21#,CT210,211199608

77169AGASKET, FUEL SUCTION TUBE SET

main77169-20050iAT21#,CT210,211199608

main77169-60010iCT215,216,ST215199608

77178GASKET, FUEL TANK FILLER PIPE, LOWER

main77178-20030iAT21#,CT21#,ST215199608

77179AGASKET, FUEL TANK BREATHER TUBE

main77179-33010×2iAT210199608-199808

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-20530iAT21#,CT210,211199608

sub77201-20700

sub77201-20H00

main77201-20550iCT215,216,ST215199608

sub77201-20H00

77201AHOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE)

main77019-20550iCT215,ST215199608-199808

main77019-21060iCT216,ST215199808

main90445-22036iAT21#,CT210,211199608

77203ATUBE SUB-ASSY, FUEL SUCTION

main77203-20140iST215199608-199808

main77203-20150iAT211,212199608-199808

main77203-20170iAT210199608-199808

main77203-21060iST215199808

main77203-21080iST215199808

main77203-21090iAT21#199911

main77203-21100iAT21#199911

77204ATUBE, FUEL TANK RETURN

main23204-74690iST215199608-199808

main77204-20090iAT21#199608

main77204-20100iCT210,211199608

main77204-21080iST215199808

main77204-21090iCT216199808

77204BHOSE, FUEL(FOR FUEL RETURN)

main95333-06020iAT21#,CT210,211199608

sub95337-06020

main95333-08011×2iCT215,ST215199608-199808

77209BTUBE SUB-ASSY, FUEL PUMP

main77209-20110iAT21#199608

main77209-20120iST215199608

77213BHOSE, FUEL TANK TO FILLER PIPE

main77213-20150iAT21#,CT210,211199608

main77213-21010iCT216,ST215199808

main77213-32060iCT215,ST215199608-199808

77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1

main77104-20040iCT215,216,ST215199608

main77216-20180iAT21#,CT210,211199608

77245CSUPPORT, FUEL TANK

main77245-20120iAT21#,CT21#,ST215199608

77251DHOSE, FUEL, NO.2(FOR FUEL MAIN TUBE)

main95333-08020iCT210,211199608

sub95337-08020

77286DCLAMP, FUEL TUBE, NO.2

main77286-20100iAT21#,CT210,211199608

main77286-21021iST215199904

main77286-21040iCT216199808

77290SHIELD ASSY, FUEL TANK FILLER PIPE

main77291-20140iAT21#,CT21#,ST215199608

77310ACAP ASSY, FUEL TANK

main77310-12150iCT21#199803

main77310-16011iAT21#,ST215199608-199803

sub77310-12140

main77310-32011iCT21#199608-199803

main77310-48010iAT21#,ST215199803

77316GASKET, FUEL TANK CAP

main77316-16010iAT21#,CT21#,ST215199608

77350LID ASSY, FUEL FILLER OPENING

main77350-20280iAT21#,CT21#,ST215199608

77366SPRING, FUEL FILLER OPENING LID HINGE

main77360-12080iAT21#,CT21#,ST215199608

77377RETAINER, FUEL FILLER OPENING LID LOCK

main77377-12050iAT21#,CT21#,ST215199608

77391RING, FUEL INLET BOX

main77391-12020iAT21#,CT21#,ST215199608

77391ARING, FUEL INLET BOX

main77391-20030iAT21#,CT21#,ST215199608

77601BBAND SUB-ASSY, FUEL TANK, NO.1 RH

main77601-20120iCT215,ST215199608-199808

main77601-20220iAT21#,CT210,211199608

main77601-21020iCT216,ST215199808

77602BBAND SUB-ASSY, FUEL TANK, NO.1 LH

main77602-20140iAT21#,CT210,211199608

main77602-20150iCT215,ST215199608-199808

main77602-21020iCT216,ST215199808

77631APROTECTOR, FUEL TANK, LOWER CENTER

main77606-21010iCT216,ST215199808

main77606-32031iCT215,ST215199608-199808

main77631-20090iAT21#,CT210,211199608

77652CUSHION, FUEL TANK, NO.1

main77651-20090×6iAT21#,CT210,211199608-200007

77681SEAT, FUEL TANK BAND, RH

main77681-32060iAT21#,CT21#,ST215199608

77682SEAT, FUEL TANK BAND, LH

main77681-32060iAT21#,CT21#,ST215199608

8271116790WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-16790

9011906351

main90119-06351

9011908511

main90119-08511

9011908A18

main90119-08A18

9011908A23

main90119-08A23

9015950219

main90159-50219

9026903067

main90269-03067

9026906013

main90269-06013

9046022002

main90460-22002

9046046003

main90460-46003

9046712056

main90467-12056

9046713061

main90467-13061

9090119038

main90901-19038

9098011078

main90980-11078

9331914008

main93319-14008

51 parts on this diagram · 9 diagrams in section
