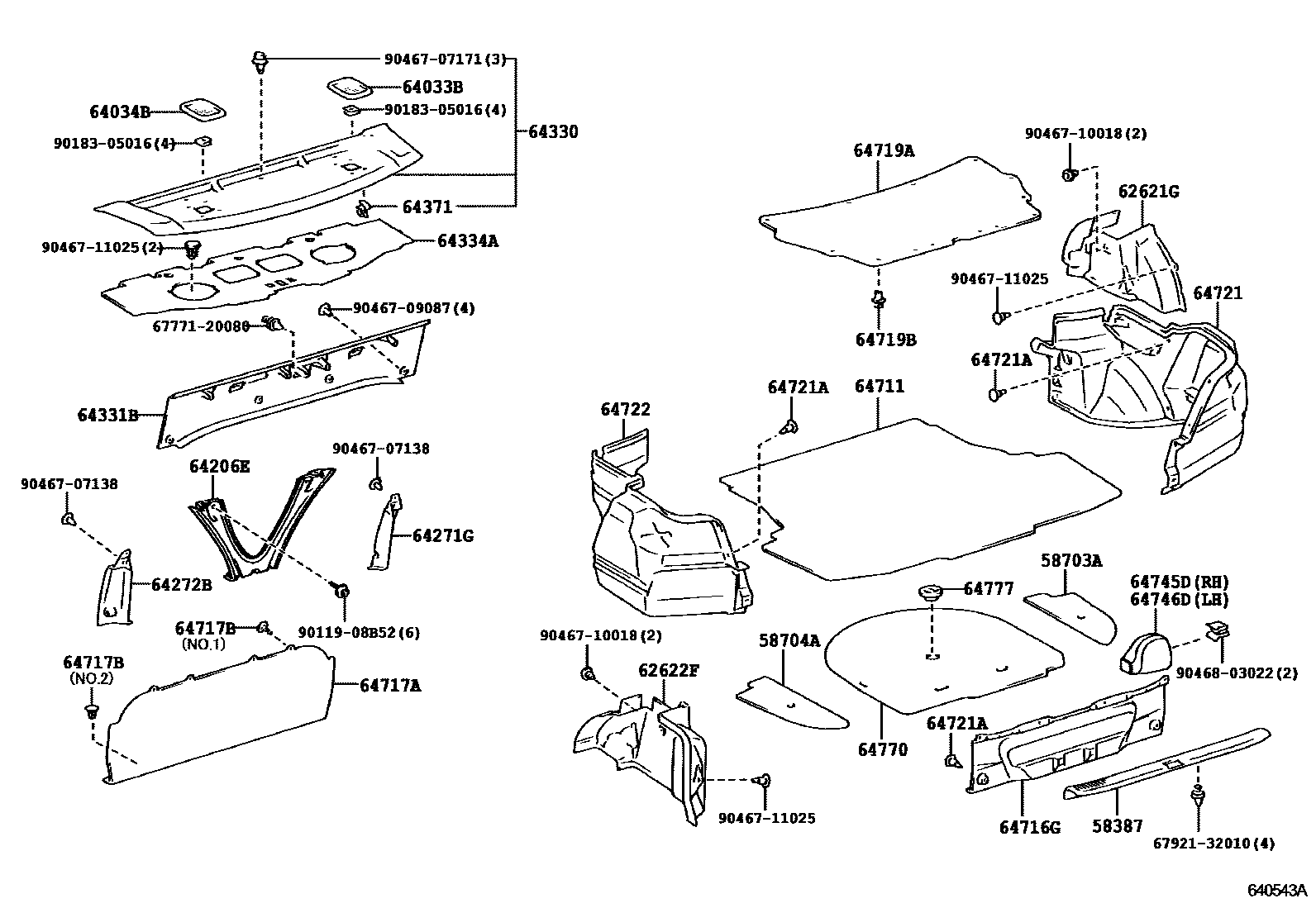

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT
58387PLATE, REAR FLOOR FINISH
58703ACOVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, RH
58704ACOVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, LH
62621GPAD, QUARTER WHEEL HOUSE, INNER FRON RH
62622FPAD, QUARTER WHEEL HOUSE, INNER FRONT LH
64033BGRILLE SUB-ASSY, REAR SPEAKER, RH
64034BGRILLE SUB-ASSY, REAR SPEAKER, LH
64206EPANEL SUB-ASSY, ROOM PARTITION
64271GBOARD, ROOM PARTITION, RH
BLACK,TRIM1#,4#
BLACK,TRIM12,13
64272BBOARD, ROOM PARTITION, LH
BLACK,TRIM1#,4#
BLACK,TRIM12,13
64330PANEL ASSY, PACKAGE TRAY TRIM
SHADOW GRAY,TRIM1#
SHADOW GRAY,TRIM13
DK. CHARCOAL,TRIM12
ANTELOPE,TRIM4#
64331BBOARD, PACKAGE TRAY TRIM, FRONT
BLACK,TRIM12,13
BLACK,TRIM1#,4#
64371RETAINER, PACKAGE TRAY TRIM
64711MAT, LUGGAGE COMPARTMENT FLOOR
BLACK,TRIM1#
BLACK,TRIM1#,4#
BLACK,TRIM12,13
64716GCOVER, LUGGAGE COMPARTMENT TRIM, REAR
BLACK,TRIM1#,4#
BLACK,TRIM1#
BLACK,TRIM12,13
64717ACOVER, LUGGAGE COMPARTMENT TRIM, FRONT
BLACK,TRIM1#,4#
BLACK,TRIM1#
BLACK,TRIM1#,4#
BLACK,TRIM1#
BLACK,TRIM12,13
64717BCLIP(FOR LUGGAGE COMPARTMENT TRIM FRONT COVER)
sub90467-08186
sub90467-08186
sub90467-09066
sub90467-09066
sub90467-09066
64719ACOVER, LUGGAGE COMPARTMENT DOOR
BLACK,TRIM1#,4#
BLACK,TRIM12,13
BLACK,TRIM1#
64719BCLIP(FOR LUGGAGE COMPARTMENT DOOR)
64721COVER, LUGGAGE COMPARTMENT TRIM, INNER RH
BLACK,TRIM12,13
BLACK,TRIM1#
BLACK,TRIM1#,4#
64721ACLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)
64722COVER, LUGGAGE COMPARTMENT TRIM, INNER LH
BLACK,TRIM1#
BLACK,TRIM1#,4#
BLACK,TRIM12,13
64745DCOVER, REAR COMBINATION LAMP SERVICE, RH
64746DCOVER, REAR COMBINATION LAMP SERVICE, LH
64770COVER ASSY, SPARE WHEEL
64777CLAMP, SPARE WHEEL COVER
6777120080WEATHERSTRIP, BACK DOOR TRIM, RH
main67771-20080
6792132010RETAINER, FRONT DOOR SCUFF PLATE
main67921-32010
9011908B52
main90119-08B52
9018305016
main90183-05016
9046707138
main90467-07138
9046707171
main90467-07171
9046709087
main90467-09087
9046710018
main90467-10018
9046711025
main90467-11025
9046803022
main90468-03022
37 parts on this diagram · 1 diagram in section
