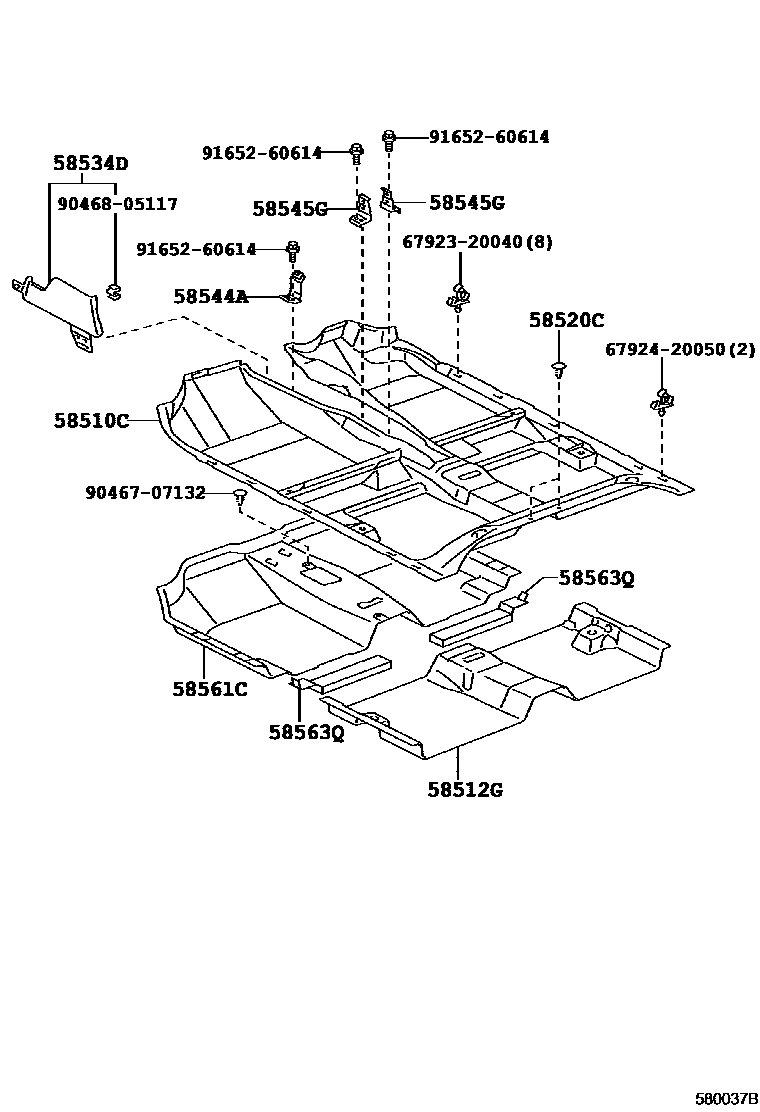

MAT & CARPET

58510CCARPET ASSY, FRONT FLOOR, FRONT

main58510-2D870-B0iAT210199808

BLUISH GRAY,TRIM13

main58510-2D870-B1iAT211,212,CT21#,ST215199808

DARK CHARCOAL,TRIM12

main58510-2D870-E0iAT211,212,CT21#,ST215199608-199808

ANTELOPE,TRIM4#

main58510-2D880-B0iAT210199808

main58510-2D880-B1iAT211,212,CT21#,ST215199808

main58510-2D880-E0iAT211,212,CT21#,ST215199608-199808

58512GSILENCER, FRONT FLOOR, NO.2

main58512-20280iAT21#,CT21#,ST215199608-199711

main58512-20290iAT21#,CT21#,ST215199711

sub58512-20291

58520CCLIP(FOR FRONT FLOOR CARPET)

main90467-06016-C0×2iAT211,212,CT21#,ST215199608-199808

BLACK,TRIM1#,4#

sub90467-07049

58534DCOVER, FLOOR CARPET, CENTER LH

main58534-20020-B0iAT210199808

SHADOW GRAY,TRIM1#

main58534-20020-B1iAT211,212,CT21#,ST215199808

DK.CHARCOAL,TRIM12

main58534-20020-E0iAT211,212,CT21#,ST215199608-199808

ANTELOPE,TRIM4#

58544ABRACKET, FLOOR CARPET, LH

main58544-20060iAT21#,CT21#,ST215199608

58545GBRACKET, FLOOR CARPET, NO.2 RH

main58545-20030×2iAT21#,CT21#,ST215199608

58561CSILENCER, FRONT FLOOR, NO.1

main58561-20010iAT21#,CT21#,ST215199608

sub58561-20011

58563QSILENCER, FRONT FLOOR, NO.3

main58563-20020×2iAT21#,CT21#,ST215199608

6792320040CUSHION, FRONT DOOR STIFFENER, NO.1

main67923-20040

6792420050CUSHION, FRONT DOOR STIFFENER, NO.2

main67924-20050

9046707132

main90467-07132

9046805117

main90468-05117

9165260614

main91652-60614

13 parts on this diagram · 1 diagram in section
