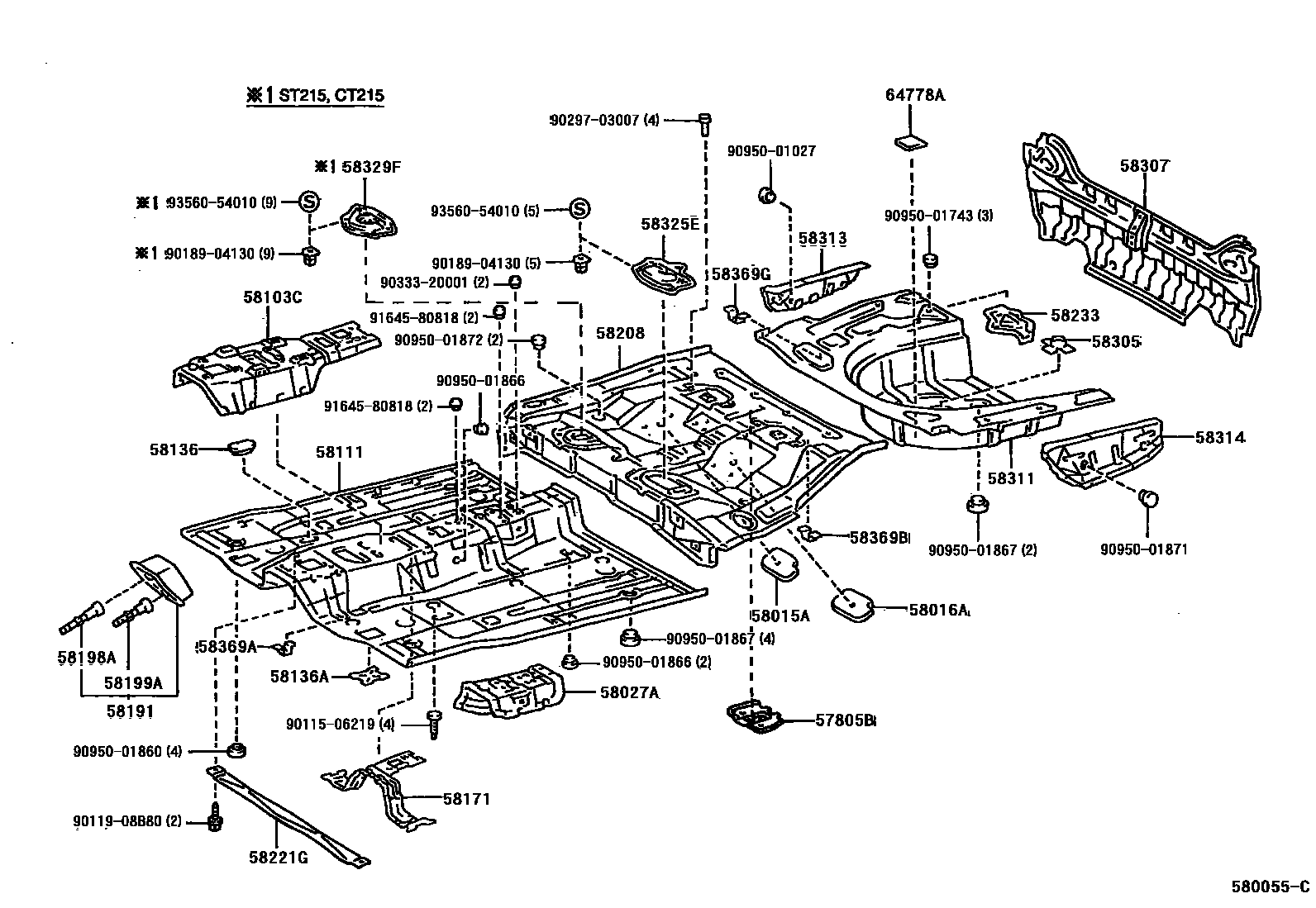

FLOOR PAN & LOWER BACK PANEL

57805BREINFORCEMENT SUB-ASSY, BELT ANCHOR, RH

main57805-20020iAT21#,CT21#,ST215199808

main57805-20030iAT211199808

58015AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 RH

main58015-20100iAT21#,CT21#,ST215199608-199808

main58015-32040iAT211,ST215199608-199808

main58282-20070iAT21#,CT21#,ST215199808

main58282-21010iAT211199808

58016AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 LH

main58016-20100iAT21#,CT21#,ST215199608

58027AREINFORCE SUB-ASSY, SEAT BELT ANCHOR

main58027-20160iAT21#,CT210199608-199612

main58027-20170iCT215,ST215199608-199612

main58027-20171iCT215,ST215199612-199808

main58027-20210iAT21#,CT210,211199612

main58027-21010iCT216,ST215199808

58103CREINFORCEMENT SUB-ASSY, FRONT FLOOR, FRONT

main58103-20061iAT21#,CT21#,ST215199608-199708

main58103-20063iAT21#,CT21#,ST215199708

58111PAN, FRONT FLOOR

main58111-20180iAT21#,CT21#,ST215199608-199612

sub58111-20181

sub90331-20044

main58111-20181iAT21#,CT21#,ST215199612

58136COVER, FRONT FLOOR HOLE

main58136-33010iAT21#,CT21#,ST215199608

58136ACOVER, FRONT FLOOR SERVICE HOLE

main58136-20020iAT21#,CT21#,ST215199608

58171REINFORCEMENT, PARKING BRAKE BASE

main58107-20110iAT211,212199608

main58107-20120iCT215,216,ST215199608

main58107-20150iAT210,CT210,211199608

58191FOOTREST, FRONT FLOOR

main58191-20080iAT21#,CT21#,ST215199608

58198ACLIP, FOOTREST, NO.1

main58198-20170iAT21#,CT21#,ST215199608

58199ACLIP, FOOTREST, NO.2

main58198-20180iAT21#,CT21#,ST215199608

58208PAN, CENTER FLOOR

main58211-20420iAT21#,CT210199608-199701

sub58211-20421

main58211-20421iAT211199808

main58211-20421iAT21#,CT210199701-199808

main58211-20440iCT215,ST215199608-199701

sub58211-20441

main58211-20441iCT215,ST215199701-199808

main58211-20460iST215199608-199701

sub58211-20461

main58211-20461iST215199701-199808

main58211-20480iAT21#,CT211199808

main58211-20490iCT216,ST215199808

58221GREINFORCEMENT, FLOOR PANEL, FRONT RH

main58221-20090iAT210199808

58233BRACKET, EXHAUST PIPE MOUNTING

main58233-20090iAT21#,CT21#,ST215199608

58305BRACKET SUB-ASSY, SPARE WHEEL CLAMP

main58351-20040iAT21#,CT21#,ST215199608

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-2B270iAT21#,CT21#,ST215199608

58311PAN, REAR FLOOR

main58311-20320iAT21#,CT21#,ST215199608-199912

sub58311-21060

main58311-21060iAT21#,CT21#,ST215199912

58313PANEL, REAR FLOOR SIDE, RH

main58305-20040iAT21#,CT21#,ST215199608

58314PANEL, REAR FLOOR SIDE, LH

main58314-20370iAT21#,CT21#,ST215199608

58325ECOVER, REAR FLOOR SERVICE HOLE

main58325-32030iAT21#,CT21#,ST215199608

58329FCOVER, REAR FLOOR SERVICE HOLE, NO.2

main58329-32010iCT215,216,ST215199608

58369ABRACKET, FUEL TUBE, NO.3

main58369-20020iAT21#,CT210,211199608

58369BBRACKET, FUEL TUBE, NO.3

main58369-32010iAT21#,CT21#,ST215199608

58369GBRACKET, FUEL TUBE, NO.3

main58369-20020iAT21#,CT21#,ST215199608

64778APROTECTOR, SPARE WHEEL

main64778-14020iCT215,216,ST215199608

9011506219

main90115-06219

9011908B80

main90119-08B80

9018904130

main90189-04130

9029703007

main90297-03007

9033320001

main90333-20001

9095001027

main90950-01027

9095001743

main90950-01743

9095001860

main90950-01860

9095001866

main90950-01866

9095001867

main90950-01867

9095001871

main90950-01871

9095001872

main90950-01872

9164580818

main91645-80818

9356054010

main93560-54010

40 parts on this diagram · 1 diagram in section
