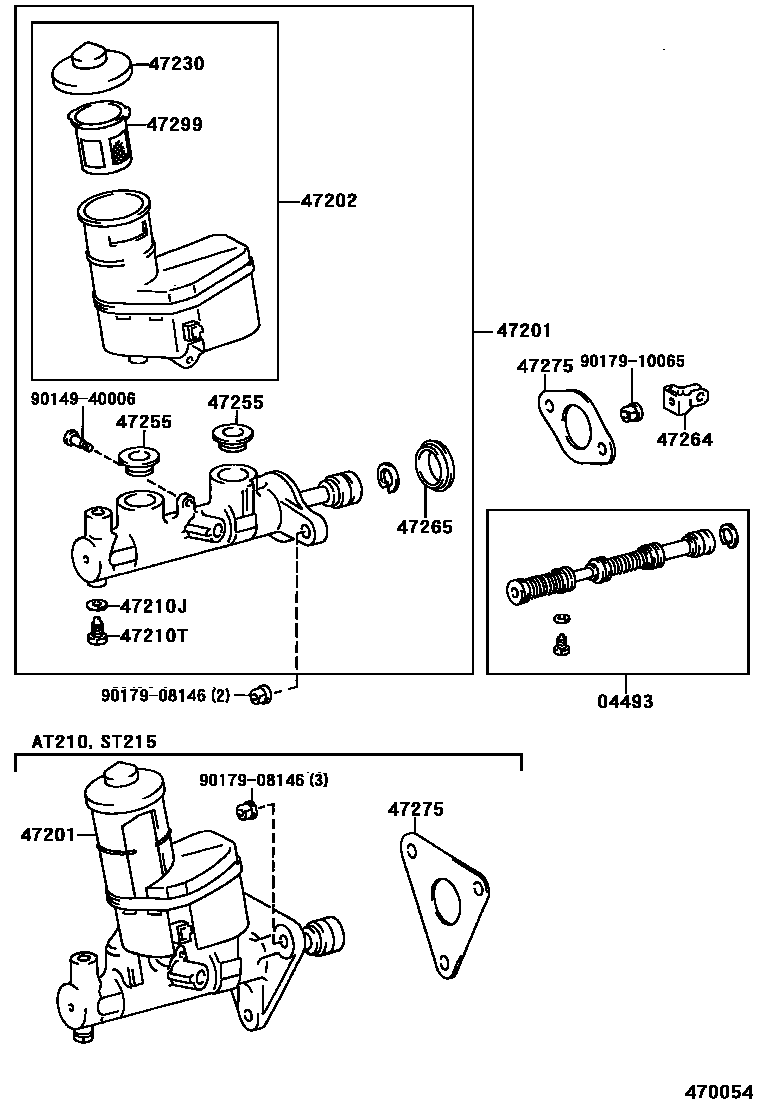

BRAKE MASTER CYLINDER

04493CYLINDER KIT, BRAKE MASTER

main04493-2B010iAT21#,CT21#,ST215199608

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-2B130iAT211,212,CT21#199608

main47201-2B140iAT210,ST215199608

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-20170iAT211,212,CT21#199608

main47220-20180iAT210,ST215199608

47210JGASKET(FOR MASTER CYLINDER)

main90430-06104iAT21#,CT21#,ST215199608

47210TBOLT(FOR BRAKE MASTER CYLINDER)

main90109-06077iAT21#,CT21#,ST215199608

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-12040iAT21#,CT21#,ST215199608

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-16010iAT21#,CT21#,ST215199608

47264CLEVIS, MASTER CYLINDER PUSH ROD

main47264-20060iAT21#,CT21#,ST215199608

47265BOOT, MASTER CYLINDER

main47265-20050iAT21#,CT21#,ST215199608

47275GASKET, BRAKE MASTER CYLINDER

main47275-12020iAT211,212,CT21#199608

main47275-32010iAT210,ST215199608

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-24010iAT21#,CT21#,ST215199608

9014940006

main90149-40006

9017908146

main90179-08146

9017910065

main90179-10065

14 parts on this diagram · 1 diagram in section
